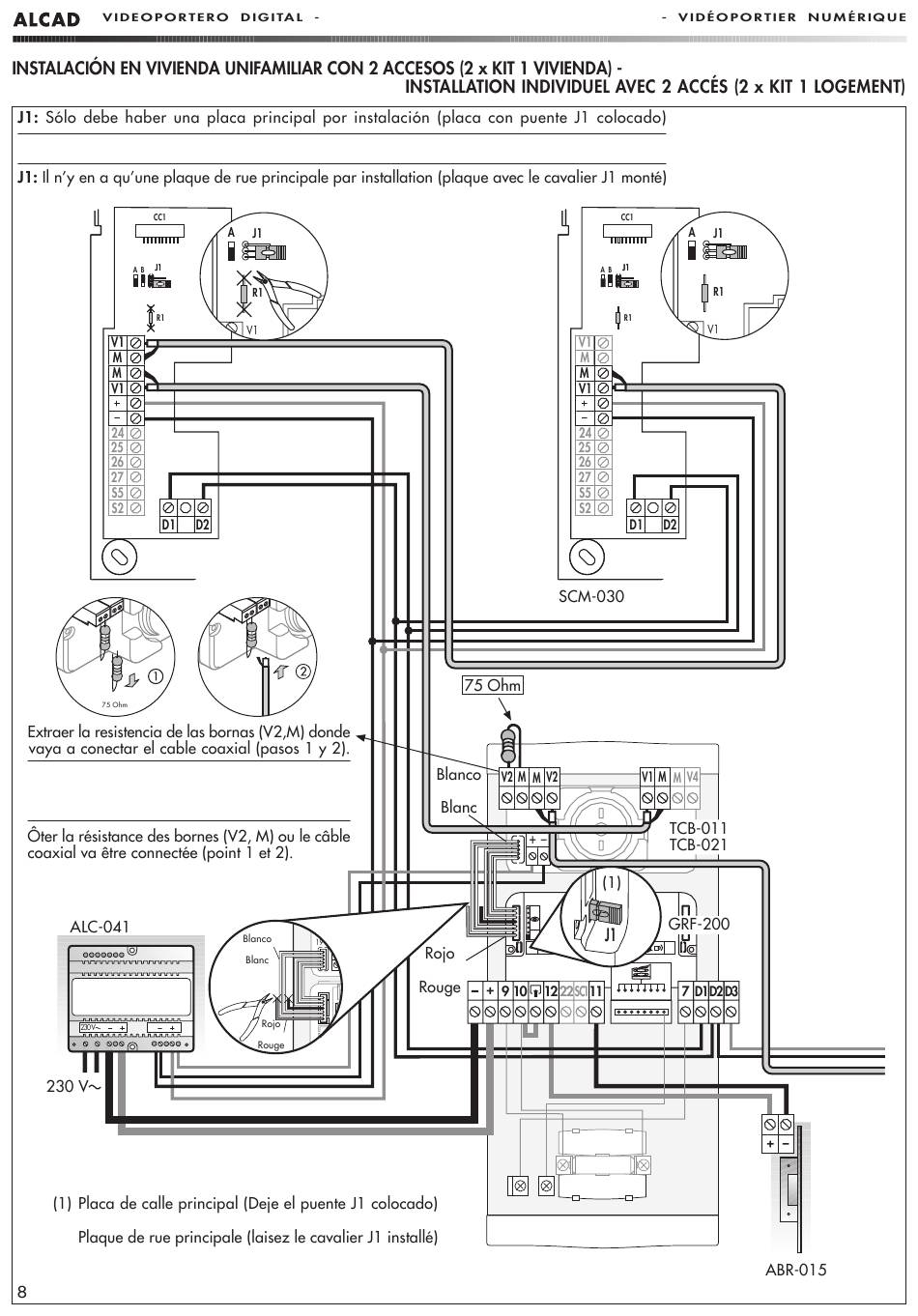

WITH 2 POINTS OF ENTRY (2 x 1 DWELLING KIT) -
J1: An installation must have only one main entrance panel (panel with the jumper J1 installed)
Extract the resistence from the terminals (V2, M)
where the coaxial cable is to be connected (steps
1 and 2)
Main entrance panel (Leave the J1 jumper in place)
D I G I TA L V I D E O D O O R E N T R Y S Y S T E M S
White
Red
White
GRF-200
cod. 9610018
19
J1
Red
INSTALLATION IN DETACHED HOUSES
J2
8
7
6
5
4
3
2
1
