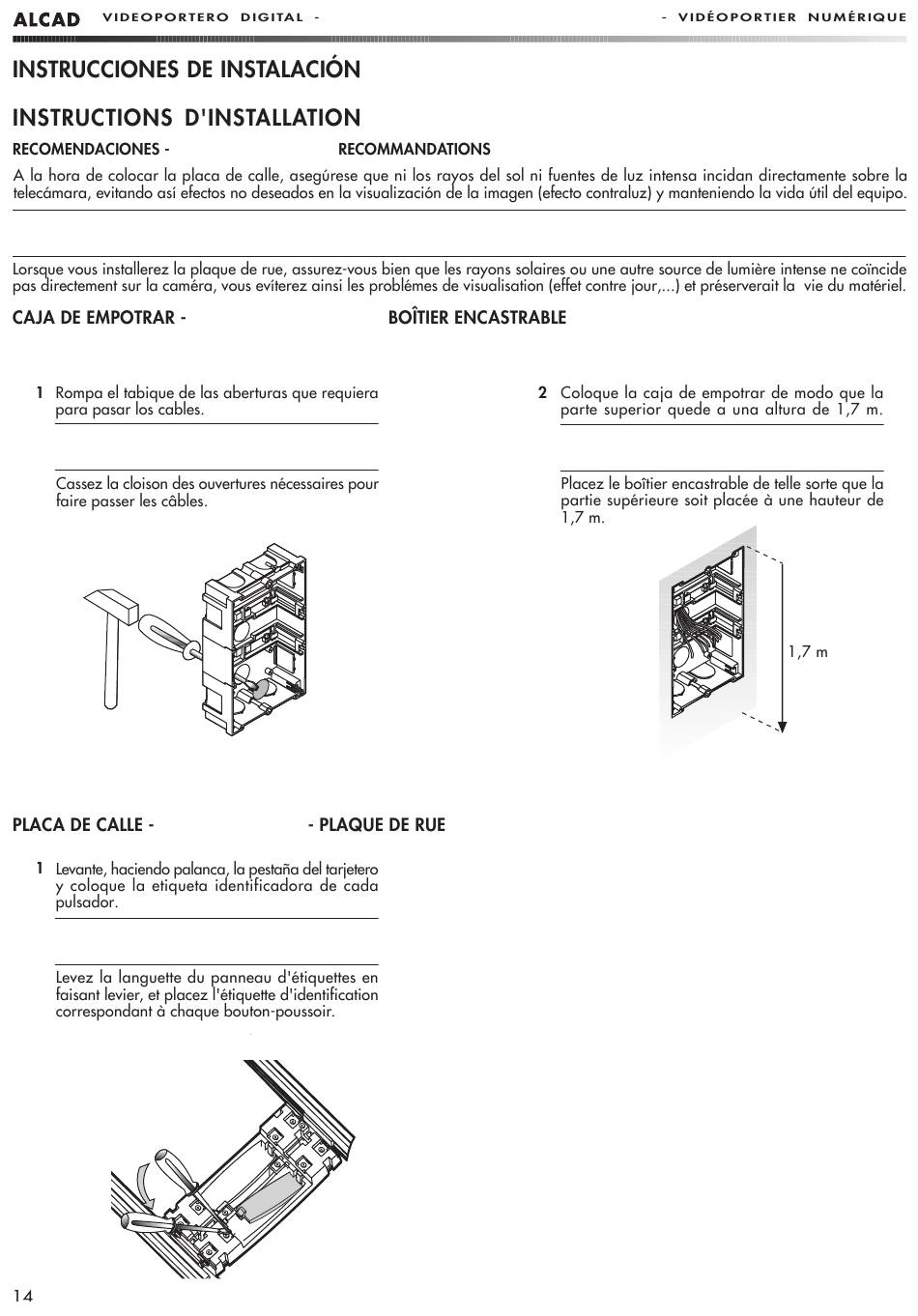

I N S TA L L I N G I N S T R U C T I O N S
RECOMMENDATIONS -
When installing the entrance panel make sure that the sunrays or intense light sources do not fall directly on the video unit, avoiding
nonwhished effects in picture display (backlight effect) and same way keeping the operational life of the equipment.
Break off the perforated holes that you need to
pass the cables through.
ENTRANCE PANEL
Lever open the cover of the card-holder and insert
the card that identifies the pushbutton
D I G I TA L V I D E O D O O R E N T R Y S Y S T E M S
FLUSH MOUNTED BOX -
Place the flush-mounted box in position so that
the top is 1.7 m. high.
