D I G I TA L V I D E O D O O R E N T R Y S Y S T E M S

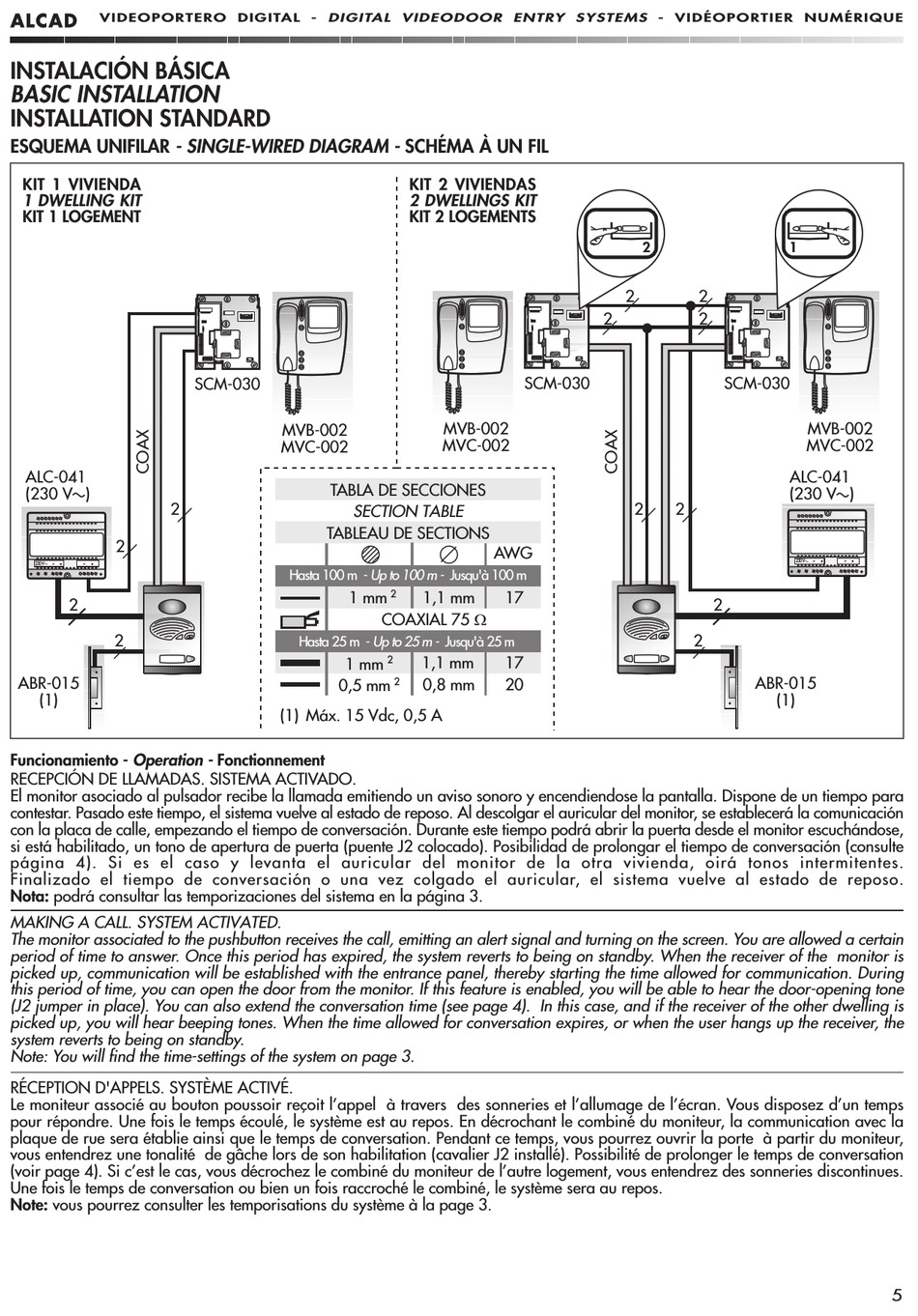

BASIC INSTALLATION
- SINGLE-WIRED DIAGRAM -
1 DWELLING KIT
2 DWELLINGS KIT
SECTION TABLE
Up to 100 m -
W
Up to 25 m -
Operation -
MAKING A CALL. SYSTEM ACTIVATED.
The monitor associated to the pushbutton receives the call, emitting an alert signal and turning on the screen. You are allowed a certain
period of time to answer. Once this period has expired, the system reverts to being on standby. When the receiver of the monitor is
picked up, communication will be established with the entrance panel, thereby starting the time allowed for communication. During
this period of time, you can open the door from the monitor. If this feature is enabled, you will be able to hear the door-opening tone
(J2 jumper in place). You can also extend the conversation time (see page 4). In this case, and if the receiver of the other dwelling is
picked up, you will hear beeping tones. When the time allowed for conversation expires, or when the user hangs up the receiver, the
system reverts to being on standby.
Note: You will find the time-settings of the system on page 3.
