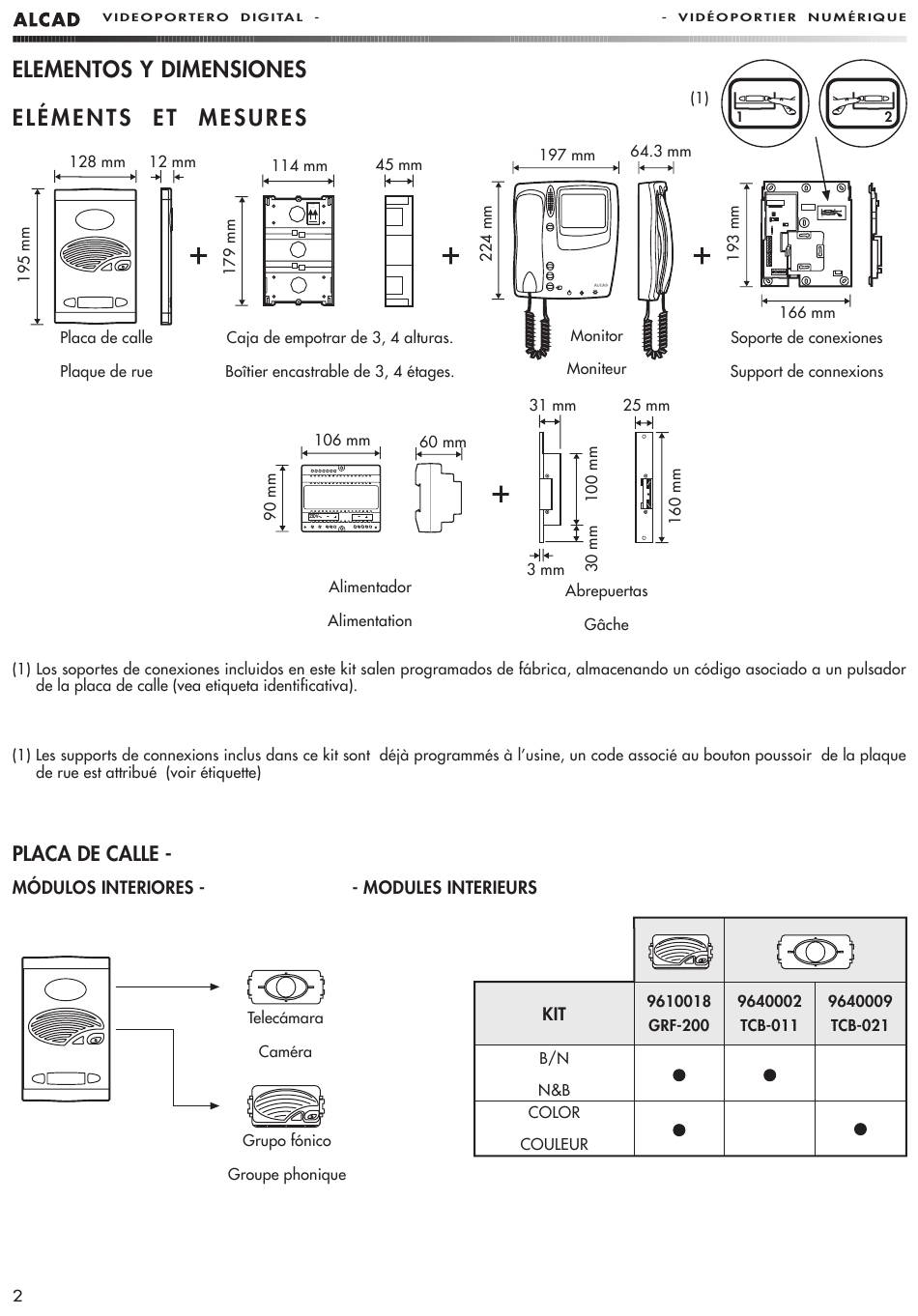

ELEMENTS AND DIMENSIONS

UP
Monitor
Entrance panel Flush-mounted box of 3, 4 storeys. Connection bracket
Power supply
Lock release
(1) The connection brackets included in this kit leave the factory programmed with a code associated to a pushbutton on the entrance
panel (see identifying label).
ENTRANCE PANEL - PLAQUE DE RUE
INSIDE MODULES
Video unit
B/W
COLOR
Audio unit
