Dialogic D/4PCI Linecard Installation and Replacement

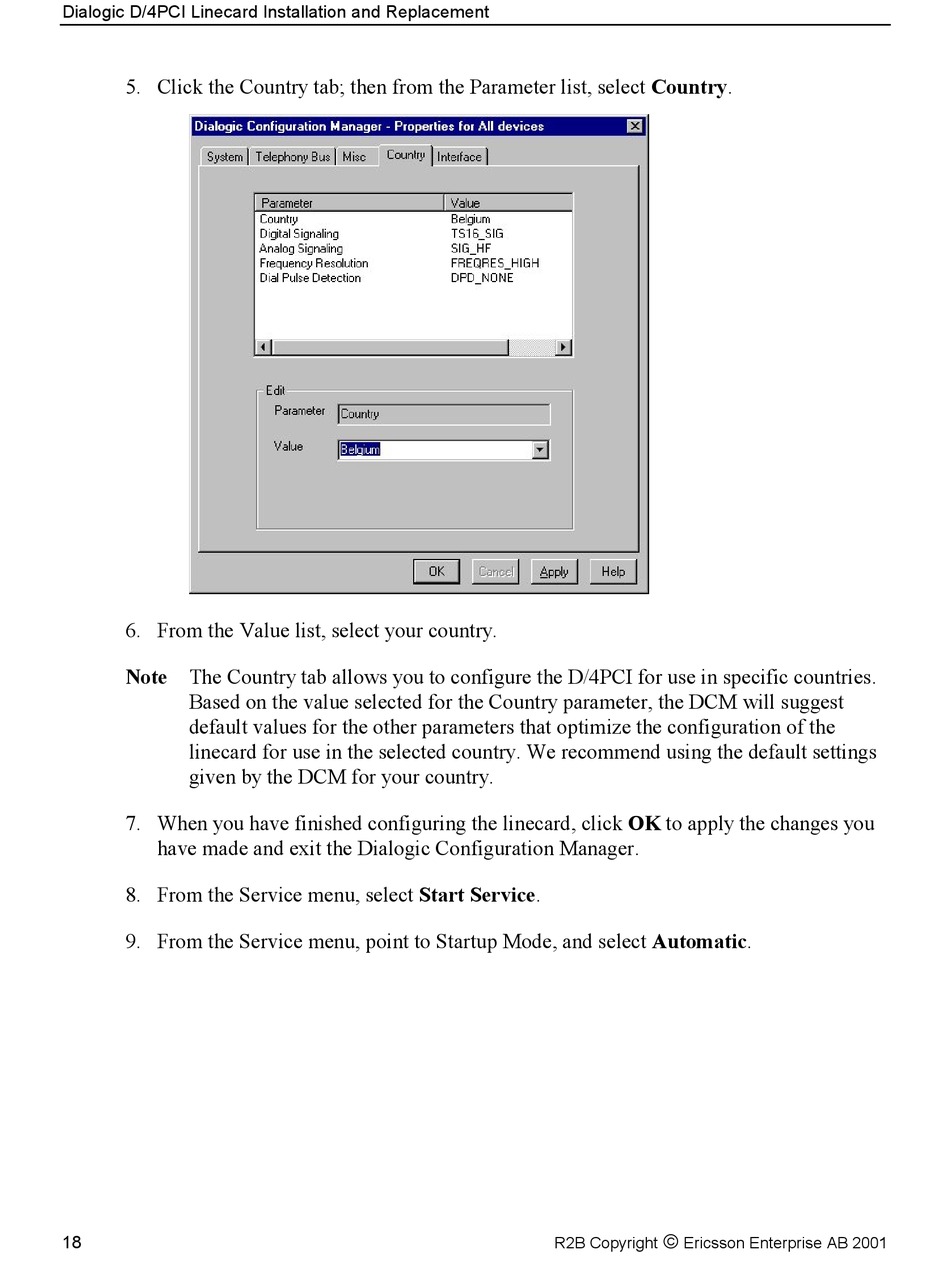

5. Click the Country tab; then from the Parameter list, select Country.
6. From the Value list, select your country.
Note The Country tab allows you to configure the D/4PCI for use in specific countries.
Based on the value selected for the Country parameter, the DCM will suggest
default values for the other parameters that optimize the configuration of the
linecard for use in the selected country. We recommend using the default settings
given by the DCM for your country.
7. When you have finished configuring the linecard, click OK to apply the changes you
have made and exit the Dialogic Configuration Manager.
8. From the Service menu, select Start Service.
9. From the Service menu, point to Startup Mode, and select Automatic.
