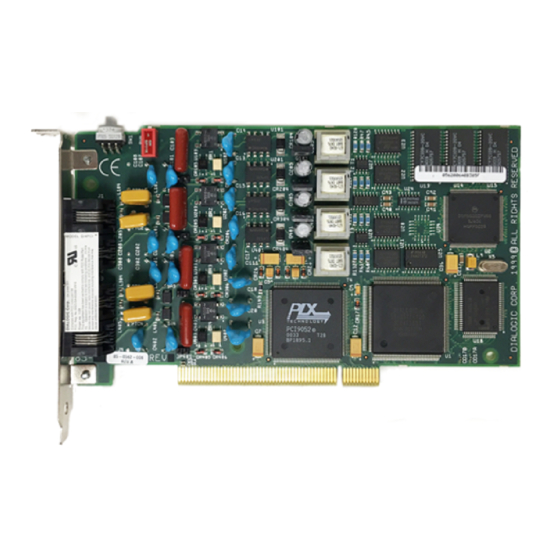

Dialogic D/4PCI Linecard

Installation and Replacement

Inside this Document:

Before You Begin.........................................................................................................................................2

Technical Specifications of the D/4PCI Linecard.........................................................................................3

Preparing the D/4PCI Linecard for Installation ............................................................................................4

Installing the D4/PCI Linecard in the Platform .............................................................................................6

Connecting the D/4PCI to the Telephone System .......................................................................................8

Installing Dialogic System Software.............................................................................................................9

Using the Dialogic Configuration Manager - DCM ....................................................................................13

Configuring Lines in the Telephony Server Configuration .........................................................................19

This document explains how to install or replace Dialogic D/4PCI linecards in a OneBox

telephony server. This document also explains how to install Dialogic System Software version

SR5.01 and Dialogic Native Architecture (DNA) version 3.3. We recommend that you read this

entire document before disassembling the hardware.

D/4PCI linecards cannot be used with any other makes or models of telephony linecards. If other makes

or models of telephony linecards are installed in the platform, they must be removed prior to installing

D/4PCI linecards.

Failure to comply with the regulations in your area may result in significant penalties. Verify that the

configuration of your platform complies with local regulations before using the platform.

Ericsson and OneBox are registered trademarks of Ericsson Enterprise AB. Dialogic is a registered trademark and D/4PCI is a trademark of Dialogic Corporation.

All other products, services, brand names, or companies mentioned in this document may be registered trademarks or trademarks of their respective companies.

IMPORTANT

Need help?

Do you have a question about the D/4PCI and is the answer not in the manual?

Questions and answers

Summary of Contents for Dialogic D/4PCI

Page 1: Table Of Contents
Ericsson and OneBox are registered trademarks of Ericsson Enterprise AB. Dialogic is a registered trademark and D/4PCI is a trademark of Dialogic Corporation. All other products, services, brand names, or companies mentioned in this document may be registered trademarks or trademarks of their respective companies.
Page 2: Before You Begin
• #2 Phillips screwdriver • RJ-11 linecord adapters (if needed to connect the platform to the telephone system) • D/4PCI Installation Quick Reference Card (Dialogic part number 05-1341-002) • Regulatory Notices for Europe, Australia, and New Zealand (Dialogic part number 05-1395-001) ã...
Page 3: Technical Specifications Of The D/4Pci Linecard
Voice coding PCM, ADPCM, µ-law PCM FCC registration number EBZUSA-65588-VM-E * *For a list that provides information for registering Dialogic linecards in many countries, contact Dialogic or retrieve a copy of their Global Product Approvals list from their website (http://www.dialogic.com/products/finalap.htm). ã...
Page 4: Preparing The D/4Pci Linecard For Installation
Setting the Default Line State (Hook-Switch State) The D/4PCI linecard has a configurable default line state (hook-switch state). This setting determines how the D/4PCI will respond to incoming telephone calls when the telephony server platform is turned on but either the telephony server or the Dialogic System Software (device driver) is not running.
Page 5 Dialogic System Software (the device drivers) will be unable to locate either linecard. Do not use linecard identification number 0 for any Dialogic PCI linecard. This telephony server does not support the automatic linecard identification number assignment scheme for PCI linecards (called Geographic Sequencing by Dialogic).
Page 6: Installing The D4/Pci Linecard In The Platform
Dialogic D/4PCI Linecard Installation and Replacement Installing the D/4PCI Linecard in the Platform Because Dialogic D/4PCI linecards are designed to be installed in the PCI expansion bus, the interrupt requests and memory addresses used by the cards are assigned by the BIOS of the platform, not by configuring jumpers or switches.
Page 7 10. If you are installing another linecard, repeat steps 6–9. 11. After installing the linecard(s), replace the computer’s cover and plug in the power cord. 12. Proceed to the following section “Connecting the D/4PCI to the Telephone System.” ã R2B Copyright...
Page 8: Connecting The D/4Pci To The Telephone System
Dialogic D/4PCI Linecard Installation and Replacement Connecting the D/4PCI to the Telephone System With the D/4PCI linecard(s) installed in the platform, you can now cable the platform to the telephone system. As described in “Assigning a Linecard Identification Number,” the OneBox telephony server assigns port numbers in ascending order based on the linecard identification number.
Page 9: Installing Dialogic System Software
Administrator privileges on the OneBox telephony server platform. 2. Insert the Dialogic program CD-ROM into the CD-ROM drive. 3. From the Start menu, click Run and click Browse to find Setup.exe on the Dialogic CD-ROM. 4. When you have located Setup.exe, double click this file.
Page 10 Dialogic D/4PCI Linecard Installation and Replacement 10. From the Custom Component Selection list, select the Dialogic Drivers, Firmware & Configuration Files option and click Next. Select Option 11. In the Destination Location dialog box, accept the default destination and click Next.
Page 11 Dialogic D/4PCI Linecard Installation and Replacement To install DNA version 3.3: IMPORTANT Remove previously installed versions of Dialogic System software before you install a new version. 1. Log on to Windows NT Workstation with an account that has Administrator privileges on the OneBox platform.
Page 12 10. In the Setup Finish Options dialog box, clear the View Release Notes check box and select the Run Dialogic Board Configuration (DCM) check box, then click Finish. 11. If prompted, “Would you like to install Gamma Link Fax?” click No.
Page 13: Using The Dialogic Configuration Manager - Dcm
Starting and Stopping Dialogic System Service The Dialogic System Service downloads firmware to the D/4PCI and initializes its device drivers. If you are installing the Dialogic System Software for the first time, the Dialogic services have not been started. Note Only users with Administrator privileges on the platform can start or stop Dialogic System Service.
Page 14 1. From the Start menu, point to Programs, point to Dialogic System Software, and select Dialogic Configuration Manager - DCM. If the service for the D/4PCI linecard is not running, the Dialogic System Service Status line at the bottom of the DCM dialog box will read Stopped, as shown below.
Page 15 1. From the Start menu, point to Programs, point to Dialogic System Software, and select Dialogic Configuration Manager - DCM. If the service for the D/4PCI linecard is running, the Dialogic System Service Status line at the bottom of the DCM dialog box will read Running, as shown below.
Page 16 Dialogic D/4PCI Linecard Installation and Replacement To set the Startup Mode to Automatic: 1. From the Start menu, point to Programs, point to Dialogic System Software, and select Dialogic Configuration Manager – DCM. 2. From the Service menu, point to Startup Mode, and select Automatic.
Page 17 Dialogic System Service is stopped. The Dialogic Configuration Manager will not apply the changes you make to the settings of the Dialogic System Software until you restart the Dialogic System Service. Refer to the earlier section “Starting and Stopping Dialogic System Service”...
Page 18 5. Click the Country tab; then from the Parameter list, select Country. 6. From the Value list, select your country. Note The Country tab allows you to configure the D/4PCI for use in specific countries. Based on the value selected for the Country parameter, the DCM will suggest default values for the other parameters that optimize the configuration of the linecard for use in the selected country.
Page 19: Configuring Lines In The Telephony Server Configuration
You must modify one configuration parameter in the telephony server. On the Integration tab in the Configuration utility, select Loop Start in the Type box for all lines provided by the D/4PCI linecard(s) on your platform. Select Loop Start for all D/4PCI lines.
