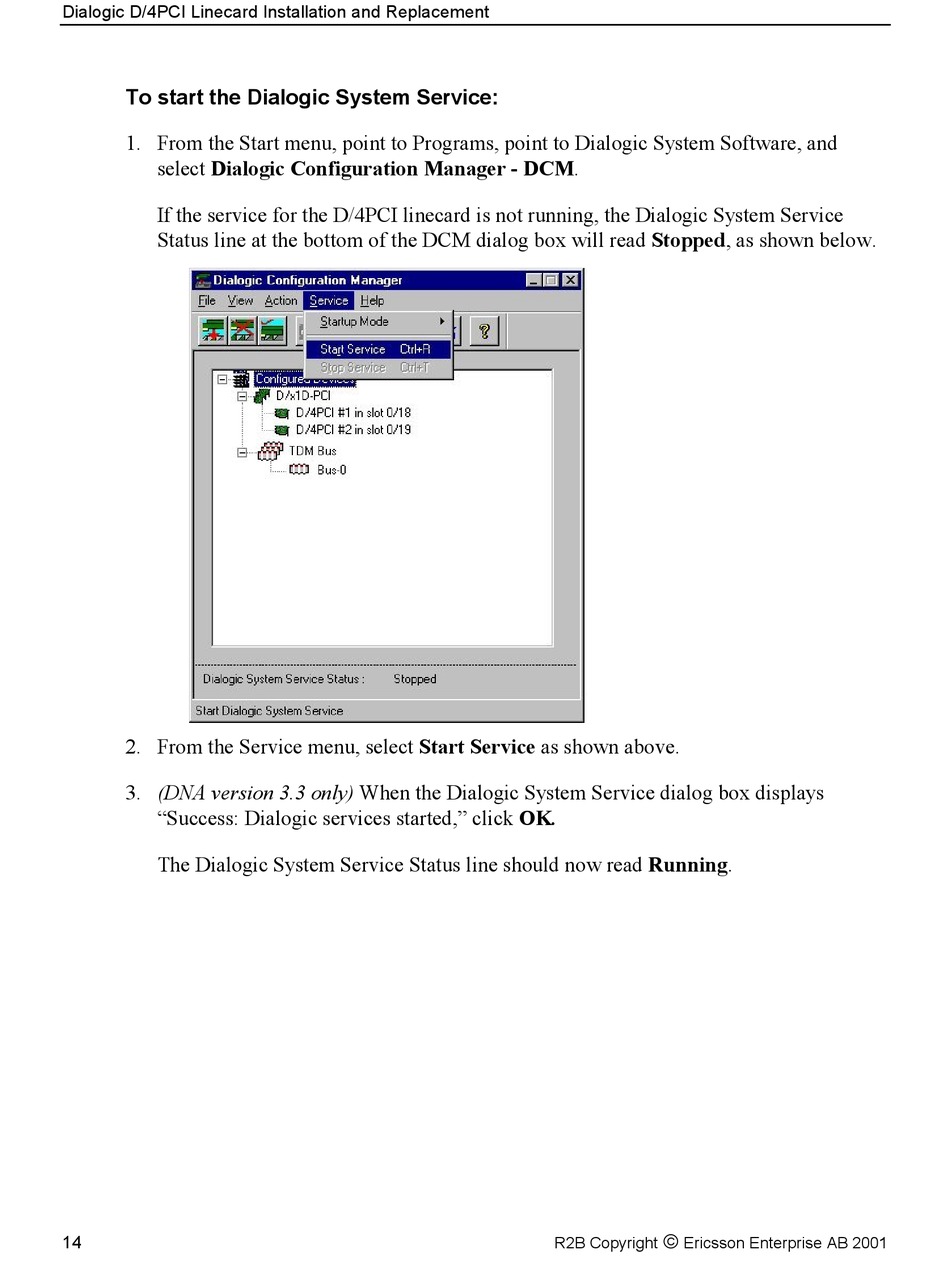

Dialogic D/4PCI Linecard Installation and Replacement
To start the Dialogic System Service:
1. From the Start menu, point to Programs, point to Dialogic System Software, and
select Dialogic Configuration Manager - DCM.
If the service for the D/4PCI linecard is not running, the Dialogic System Service
Status line at the bottom of the DCM dialog box will read Stopped, as shown below.
2. From the Service menu, select Start Service as shown above.
3. (DNA version 3.3 only) When the Dialogic System Service dialog box displays
"Success: Dialogic services started," click OK.
The Dialogic System Service Status line should now read Running.
