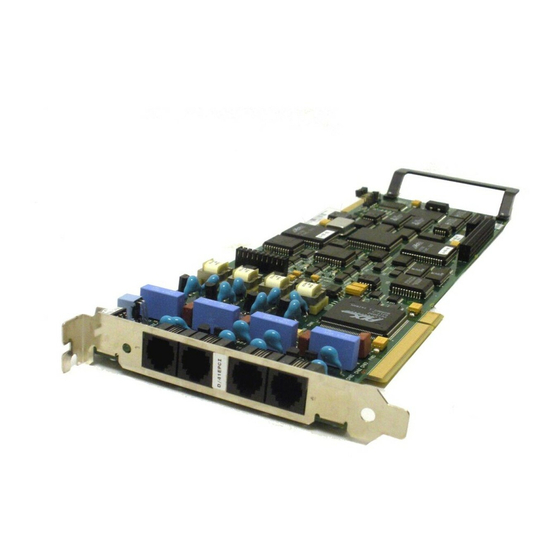

Dialogic SCbus Linecard

Installation and Replacement

Inside This Document:

Before You Begin.........................................................................................................................................2

Technical Specifications of Dialogic SCbus Linecards................................................................................3

Preparing for Service ...................................................................................................................................4

Preparing Dialogic SCbus Linecards for Installation ...................................................................................5

Installing Dialogic SCbus Linecards in the Platform ..................................................................................10

Cabling Dialogic D/41ESC Linecards to the Telephone System ..............................................................12

Cabling Dialogic D/160SC-LS Linecards to the Telephone System ..........................................................15

Removing Dialogic System Software.........................................................................................................18

Installing Dialogic System Software...........................................................................................................20

Adding or Removing SCbus Linecards in the Dialogic System Software..................................................27

Changing the PCM Encoding Scheme Used by SCbus Linecards ..........................................................32

Troubleshooting Dialogic SCbus Linecards...............................................................................................33

Configuring Lines in OneBox Configuration ..............................................................................................34

™

This document explains how to install or replace one or more Dialogic D/41ESC

™

D/160SC-LS

linecards in a OneBox

platform. The information in this document pertains to

platforms running OneBox version 1.1 or later.

We recommend that you read this entire document before beginning disassembly.

IMPORTANT

Dialogic SCbus linecards cannot be used in a computer platform containing Dialogic PCI linecards (includes

D/4PCI, D/41EPCI, D/120JCT-LS, and D/240PCI-T1) or Dialogic D/41D cards. If Dialogic PCI linecards or D/41D

linecards are currently installed in the platform, they must be removed prior to installing the SCbus

linecards. Dialogic SCbus linecards can be used in conjunction with all Brooktrout™ fax cards.

OneBox and Ericsson are registered trademarks of Ericsson Enterprise AB. Dialogic is a registered trademark and D/41ESCand D/160SC-LS are trademarks of

Dialogic Corporation, an Intel company. Brooktrout is a trademark of Brooktrout Technology, a Brooktrout Company.

All other products, brand names, or companies mentioned in this document may be trademarks or registered trademarks of their respective companies.

R3B Copyright

Ericsson Enterprise AB 1997-2001

Table of Contents

Need help?

Do you have a question about the D/41ESC and is the answer not in the manual?

Questions and answers

Summary of Contents for Dialogic D/41ESC

Page 1: Table Of Contents
Dialogic SCbus linecards can be used in conjunction with all Brooktrout™ fax cards. OneBox and Ericsson are registered trademarks of Ericsson Enterprise AB. Dialogic is a registered trademark and D/41ESCand D/160SC-LS are trademarks of Dialogic Corporation, an Intel company. Brooktrout is a trademark of Brooktrout Technology, a Brooktrout Company.
Page 2: Before You Begin
• OneBox Telephony Server program CD-ROM • Dialogic System Software SR5.01 CD-ROM (if applicable) • If you are installing a D/41ESC and linecords from the telephone system are two-pair (have RJ-14 plugs), two RJ-11–to–RJ-14 converters for each D/41ESC • If you are installing a D/160SC-LS, a D/160 adapter cable (with a DB-37 connector on one end and a RJ-21 at the opposite end) for each D/160SC-LS •...
Page 3: Technical Specifications Of Dialogic Scbus Linecards
Architecture (SCSA) steering committee, that allows hardware components from different manufacturers to interoperate in the same platform. Multiple SCbus components are connected together through the use of an SCbus cable. The following Dialogic SCbus linecards are approved for use with OneBox: •...
Page 4: Preparing For Service
Continue to the next step. DNA 3.3, or SR5.01 2. From the Start menu, point to Programs, point to Dialogic System Software and select Dialogic Configuration Manager – DCM. 3. From the Service menu, point to Startup and select Manual.
Page 5: Preparing Dialogic Scbus Linecards For Installation
Dialogic SCbus Linecard Installation and Replacement Preparing Dialogic SCbus Linecards for Installation Before installing a Dialogic SCbus linecard in the OneBox platform, you need to determine the ports it will handle so you can configure its linecard identification number and, in the case of the D/41ESC, configure its default line state.
Page 6 • Dial the rotary switch SW1 to select a unique linecard identification number. Refer to Figure 1 and Table 3, later in this section, for information about the D/41ESC linecard; refer to Figure 2 and Table 4 for additional information about the D/160SC-LS linecard.
Page 7 Each Dialogic D/41ESC linecard has a configurable default line state (hook switch state). This setting determines how the D/41ESC will respond to incoming telephone calls when the OneBox platform is turned on but the OneBox server is not running or the Dialogic System Software device driver is not started.
Page 8 Dialogic SCbus Linecard Installation and Replacement SW1 SW2 Figure 1. Layout of the Dialogic D/41ESC linecard Table 3. D41/ESC switch settings Linecard SW1 (Thumbwheel) SW2 Switch 1 SW2 Switch 2 On (Busy Signal) On (Busy Signal) On (Busy Signal) On (Busy Signal)
Page 9 Dialogic SCbus Linecard Installation and Replacement SCbus connector Figure 2. Layout of the Dialogic D/160SC-LS Table 4. D/160SC-LS switch settings Linecard SW1 (Thumbwheel) ã Aug 2001 Ericsson Enterprise AB...
Page 10: Installing Dialogic Scbus Linecards In The Platform
(includes D/41EPCI and D/240PCI-T1) or Dialogic D/41D cards. If Dialogic PCI linecards or D/41D linecards are currently installed in the platform, they must be removed prior to installing the Dialogic SCbus linecards. Dialogic SCbus linecards can be used in conjunction with all Brooktrout fax cards.
Page 11 Dialogic SCbus Linecard Installation and Replacement 7. If you have more than one SCbus card installed, cable the cards together. IMPORTANT Do not place PEB terminators on any cards on the SCbus. The SCbus is self-terminating, so no terminators are required.
Page 12: Cabling Dialogic D/41Esc Linecards To The Telephone System
Dialogic SCbus Linecard Installation and Replacement Cabling Dialogic D/41ESC Linecards to the Telephone System After D/41ESC linecards have been installed into the platform, they need to be cabled to the telephone system (switch). OneBox assigns line numbers in ascending order based on the linecard identification number.
Page 13 Dialogic System Software. Are of different type(s) or You need to add the card in Dialogic System configured for different linecard Software. Refer to the “Adding or Removing identification number(s) than the SCbus Linecards in Dialogic System Software”...
Page 14 We ship each Dialogic D/41ESC linecard sold in North America with two RJ-11–to– RJ-14 converters, shown in Figure 5. These converters allow you to connect the single- channel RJ-11 connectors at the back of the D/41ESC to a two-channel RJ-14 cord. RJ-14 connector...
Page 15: Cabling Dialogic D/160Sc-Ls Linecards To The Telephone System
Cabling Dialogic D/160SC-LS Linecards to the Telephone System After the Dialogic D/160SC-LS linecards have been installed into the platform and have been connected to the SCbus cable, they need to be cabled to the telephone system. OneBox assigns line numbers in ascending order based on the linecard identification number.
Page 16 Dialogic System Software. Refer to “Adding or Removing SCbus Linecards in the Dialogic System Software” for instructions. However, if the Dialogic System Software has not been installed on the OneBox platform, refer to the “Removing Dialogic System Software” section for instructions.
Page 17 Dialogic SCbus Linecard Installation and Replacement D/160 adapter cable RJ-21 connector DB-37 connector RJ-21–toRJ-14 adapter D/160SC-LS linecard 15 13 11 Channels & & & & & & & & 16 14 12 10 RJ-14 cables from the telephone system Figure 7. RJ-21–to–RJ-14 converter with channel assignments ã...
Page 18: Removing Dialogic System Software
Removing Dialogic System Software OneBox software version 2.01 requires Dialogic System software SR5.01. However, before upgrading to a new version of Dialogic System Software, it is necessary to remove older versions of the software. Use the following procedures to remove any old Dialogic System Software.
Page 19 Dialogic SCbus Linecard Installation and Replacement Removing the Streams Environment Protocol If the Streams Environment protocol is present on the OneBox platform, you may choose to remove the protocol. Leaving the protocol installed will not affect the platform. To remove the Streams Environment protocol: 1.
Page 20: Installing Dialogic System Software
Dialogic System Software must be installed on the OneBox platform. With the release of OneBox 2.01, OneBox supports Dialogic System Software SR5.01. Earlier versions of OneBox may use different versions of Dialogic Software. Refer to Table 5 to determine which version of Dialogic System software your system requires.
Page 21 Dialogic SCbus Linecard Installation and Replacement Installing Dialogic System Software—DNA 2, DNA 3.3, and SR5.01 Use the following procedure to install Dialogic System Software DNA 2, DNA 3.3, or SR5.01. Because the installation procedure for all three releases is very similar, the following instructions describe the installation of SR5.01.
Page 22 Run Dialogic Board Configuration (DCM) check box, then click Finish. In the setup program for DNA version 2, the dialog box is called “Dialogic Note Setup Finish Options.” Within the dialog box, the option that displays the review guide is labeled “View Release Notes”...
Page 23 Select D/x1E in the Family box. D/160SC-LS Select DIALOG/HD in the Family box. 18. Select the model of Dialogic card in the Model box, then click Next. 19. When prompted to name the linecard, type the linecard identification number into the box, then click OK.
Page 24 33. When you have finished configuring the linecard, click Apply, then OK to apply the changes you have made. 34. Repeat steps 15–33 for each Dialogic linecard installed in the platform. 35. Proceed to “Setting the Dialog Service Startup Mode—SR5.01.”...
Page 25 Note 5. From the Service menu, point to Startup Mode and select Automatic. 6. Verify that the Dialogic DNA service has started. Refer to the “Verifying that the Dialogic Service Has Been Started—SR5.01” section for instructions. 7. From the File menu, select Exit.
Page 26 Dialogic SCbus Linecard Installation and Replacement Verifying that the Dialogic Service Has Been Started—SR5.01 Perform the following to determine if Dialogic services have been started or if you need to reset the Dialogic services startup mode. To verify that the Dialogic services have been started: 1.
Page 27: Adding Or Removing Scbus Linecards In The Dialogic System Software
Adding or Removing SCbus Linecards in the Dialogic System Software If you add a SCbus linecard after you have installed the Dialogic System Software, you must add the linecard in the software. Also, if you remove a SCbus linecard, or replace an existing linecard with one of a different type, you must remove the linecard in the software.
Page 28 Dialogic SCbus Linecard Installation and Replacement 4. From the Action menu, click Add Device. 5. Select the family that includes the linecard you are adding to Dialogic Configuration Manager. If the linecard you are adding is a… Then… D/41ESC Select D/x1E in the Family box.
Page 29 22. If present, select FREQRES_HIGH in the Value list. 23. Repeat steps 3–22 for each linecard added to the OneBox platform. 24. Click OK. 25. Perform the steps in the earlier section “Setting the Dialogic Service Startup Mode– SR5.01” to start the Dialogic services. ã...
Page 30 2. If you have not already done so, log on to Windows NT Server with an account with Administrator privileges on OneBox the platform. 3. From the Start menu, point to Programs and select Dialogic System Software. 4. Click Dialogic Configuration Manager – DCM.
Page 31 2. From the Start menu, point to Programs, and select Dialogic System Software. 3. If the Dialogic System Service is running, click the red Stop icon on the toolbar. 4. From the Service menu, point to Startup Mode, and select Manual.
Page 32: Changing The Pcm Encoding Scheme Used By Scbus Linecards
1. If you have not already done so, log on to Windows NT Server with an account with Administrator privileges on the OneBox platform. 2. From the Start menu, point to Programs, and then select Dialogic System Software. 3. Click Dialogic Configuration Manager – DCM.
Page 33: Troubleshooting Dialogic Scbus Linecards
Dialogic SCbus Linecard Installation and Replacement Troubleshooting Dialogic SCbus Linecards At times you might find that you need to troubleshoot the Dialogic linecards. The Dialogic Configuration Manager (DCM) has a comprehensive online help system. Consult the Dialogic Installation and Configuration Knowledge Base book in the help system for troubleshooting advice regarding Dialogic System Software.
Page 34: Configuring Lines In Onebox Configuration
Dialogic SCbus Linecard Installation and Replacement Configuring Lines in OneBox Configuration When you configure the lines on the Integration tab of OneBox Configuration, remember that OneBox assigns line numbers based on the linecard identification number. ã Aug 2001 Ericsson Enterprise AB...
