SportsPlay 511-152 Installation Instruction

Stepping stones
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Table of Contents

INSTALLATION DETAILS
 Recommended crew (Adult): 2
 Installation time: 1 (2 man hrs)
 User age:2-5 for up to a 20" deck
5-12 for up to a 36" deck
 Use zone: see Special Safety Notes
 Weight: 110 lbs
SURFACING: Use of safety surfacing in compliance with
ASTM specification F1292 is required.
MAINTENANCE:
 As the owner of the playground you are responsible for
maintenance of the equipment and play area. A
maintenance schedule must be developed and the
equipment inspected frequently. A maintenance section
that includes component specific maintenance
requirements is included at the end of this manual.
 Be sure to inspect surfacing for foreign objects that could
cause injury and that sufficient surfacing is in place in
accordance with ASTM and CPSC standards.
July 30, 2014

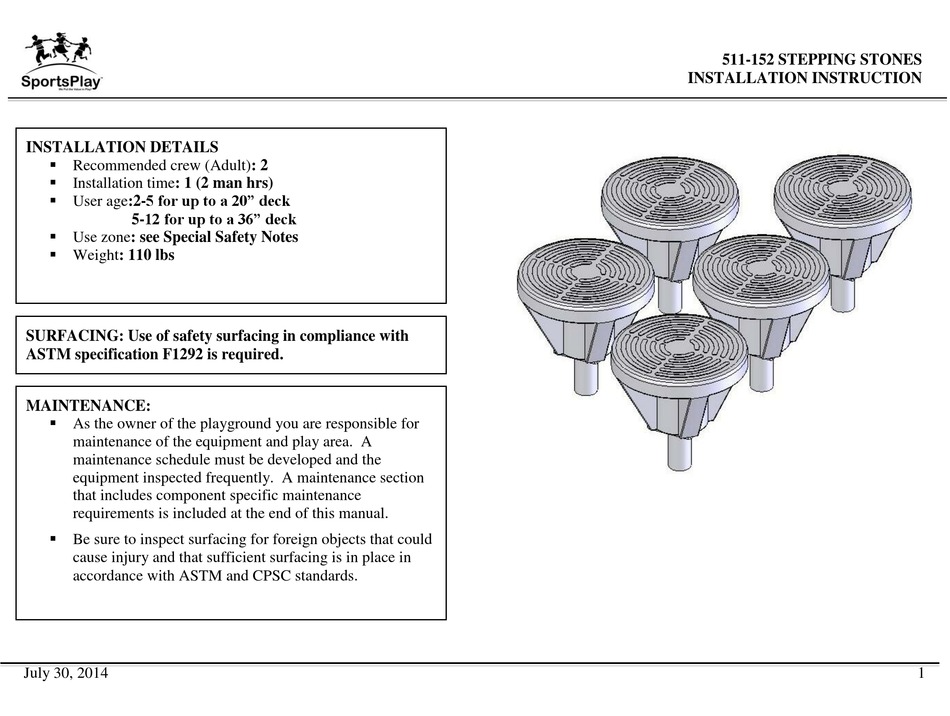

511-152 STEPPING STONES
INSTALLATION INSTRUCTION
