SportsPlay 511-146P Installation Instruction

Rope climb
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Table of Contents

INSTALLATION DETAILS
 Recommended crew (Adult): 2
 Installation time: 1 (2 man hrs)
 User age:5-Adult
 Use zone: 6' on all sides
 Weight: 80 lbs
SURFACING: Use of safety surfacing in compliance with
ASTM specification F1292 is required.
MAINTENANCE:
 As the owner of the playground you are responsible for
maintenance of the equipment and play area. A
maintenance schedule must be developed and the
equipment inspected frequently. A maintenance section
that includes component specific maintenance
requirements is included at the end of this manual.
 Be sure to inspect surfacing for foreign objects that could
cause injury and that sufficient surfacing is in place in
accordance with ASTM and CPSC standards.
January 29, 2019

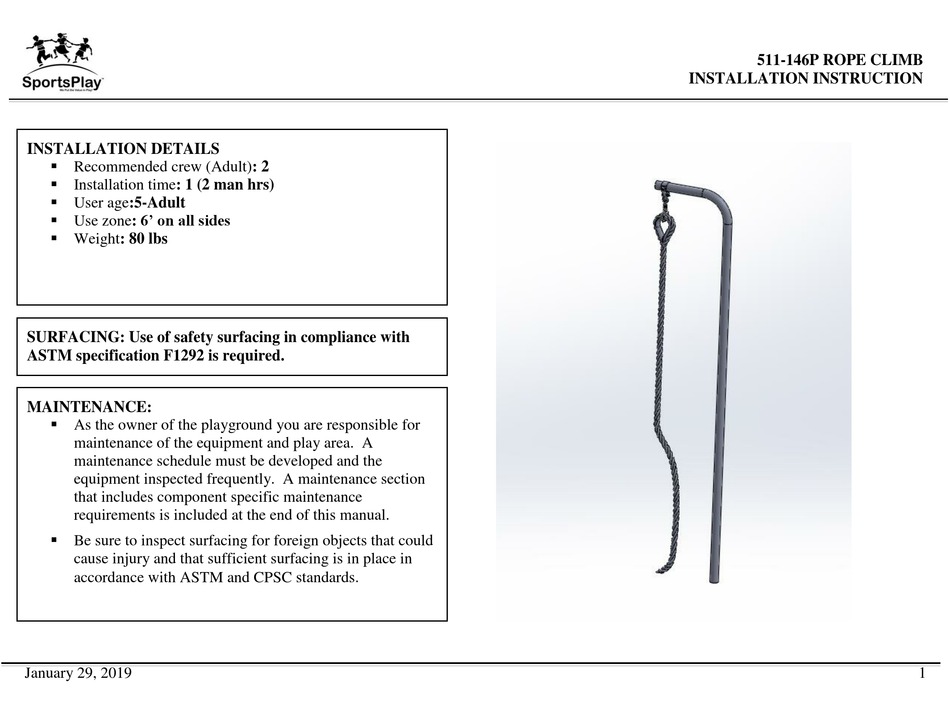

511-146P ROPE CLIMB
INSTALLATION INSTRUCTION
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 511-146P and is the answer not in the manual?

Questions and answers

Related Manuals for SportsPlay 511-146P

Summary of Contents for SportsPlay 511-146P

  • Page 1 511-146P ROPE CLIMB INSTALLATION INSTRUCTION INSTALLATION DETAILS  Recommended crew (Adult): 2  Installation time: 1 (2 man hrs)  User age:5-Adult  Use zone: 6’ on all sides  Weight: 80 lbs SURFACING: Use of safety surfacing in compliance with ASTM specification F1292 is required.

  • Page 2: Parts List

    511-146P ROPE CLIMB INSTALLATION INSTRUCTION PARTS LIST PART # DESCRIPTION 1-1/2” Rope 10’ Long 533-981 2-3/8” Sliding Pole 503-100 2-3/8” Swing Hanger 585-520 345-506 D Shackle 1’ 4/0 Chain 317-140 3’ 4/0 Chain 317-140 2-3/8” Pipe Plug 105-017 345-905 Clevis Key for D Shackle NOTE: Keep a copy of these instructions on file to assist you with maintenance and replacement parts.
  • Page 3 511-146P ROPE CLIMB INSTALLATION INSTRUCTION FOOTING INFORMATION  Total footing depth is 24” less the height of the surfacing plus the height of the blocking material. If you were using 12” of surfacing the footing hole would need to be 12” plus the height of the blocking material (refer to the cutaway view to the right).
  • Page 4 511-146P ROPE CLIMB INSTALLATION INSTRUCTION January 29, 2019...

  • Page 5: Specifications

    511-146P ROPE CLIMB INSTALLATION INSTRUCTION SPECIFICATIONS INSTALLATION TIPS & TROUBLE SHOOTING  Hardware – Stainless steel & tamper resistant  Apply locktite to all bolts during assembly prior to completely tightening them.  Attachment Bracket – Powder coated steel  Stainless Steel hardware can occasionally be difficult to use particularly if you need to take them out to make an SPECIAL SAFETY &...

  • Page 6: Before You Begin

    511-146P ROPE CLIMB INSTALLATION INSTRUCTION BEFORE YOU BEGIN In addition to the components on the packing list you will need a a shovel or post hole digger, cement, 3/4” wrench, hammer, tape measure, level Detail A and blocking material to support the Sliding Pole.
  • Page 7 511-146P ROPE CLIMB INSTALLATION INSTRUCTION INSTALLATION STEPS CONTINUED __6) Install Swing Hanger: After the cement has dried you can install the Swing Hanger. Thread the 1’ 4/0 Chain through the loop of the unsecured end of the Rope. Use the Clevis Key (8) to remove the bolt of the D Shackle.
