3.3 FLOW CONTROL VALVE OPERATION

The Blitzfi re has a valve that can be used to control the fl ow
and acts as a safety shut-off feature. The valve is shut-off when
the valve handle is fully forward. The valve is fully on when the
valve handle is fully back. The valve can be opened to any of
six detented fl ow positions. These detented positions allow the
monitor operator to regulate the fl ow depending on the need or
what can be safely and eff ectively handled.

3.3.1 UNLOCKING THE VALVE HANDLE FROM THE CLOSED POSITION

The valve handle is locked in the closed position so that the valve handle may be
used to carry the Blitzfi re without the valve inadvertently opening. To unlock the valve
handle from the closed position:
1. Pull knob on right side of the valve handle.
2. While pulling on knob, open the valve with the other hand.
As soon as valve is opened the knob may be released. The valve handle may be
moved to any detent valve position by pushing or pulling on the valve handle. When
the valve is closed the valve handle automatically locks and must be unlocked again
to reopen. The valve opening procedure is shown in fi gure 3.3.1.

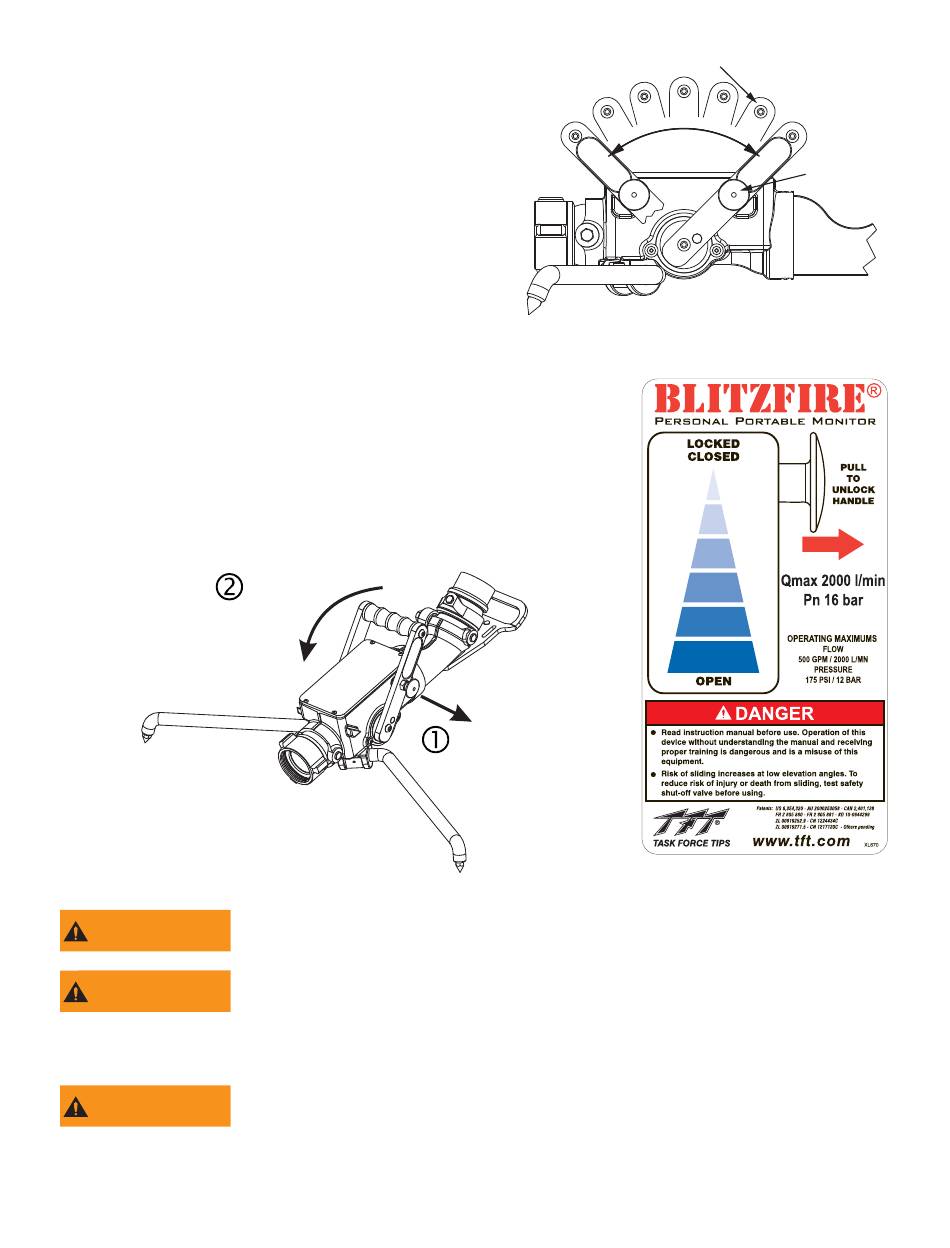

Figure 3.3.1 Valve Opening Procedure
WARNING
Injury or death may occur by attempting to use a damaged valve. The device shall be inspected
WARNING
and tested at least quarterly. Before using the monitor inspect it for damage resulting from:
Injury or death from an out of control monitor can occur. If monitor gets out of control, retreat
WARNING
from monitor immediately. Do not attempt to regain control of monitor while it is fl owing.
©Copyright Task Force Tips, Inc. 2002-2015
Open Valve
Quick changes in valve position can cause high pressure spikes due to water hammer and may
result in damaged equipment which could lead to injury or death. Open and close the valve
slowly to avoid water hammer.
• Failure to drain followed by exposure to freezing conditions
• Exposure of monitor to temperatures in excess of 160 degrees F
• Missing parts
• Physical abuse
Detent Flow Positions
ON
Figure 3.3 Valve Handle Positions
Pull Knob
5
LOCKED
CLOSED
Pull Knob
To Unlock
Handle
LIX-630 July 2, 2015 Rev19
