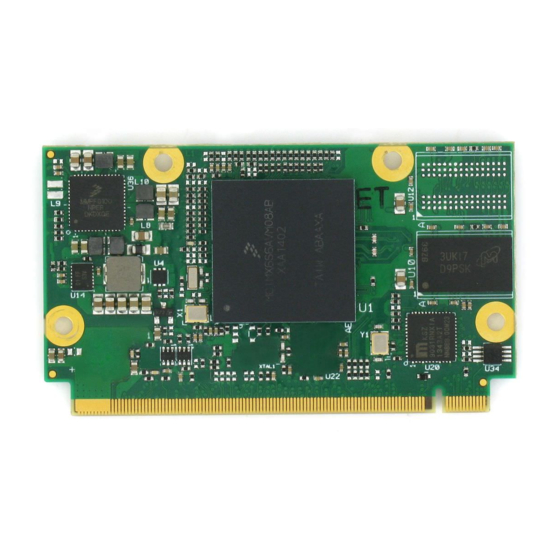

Seco Q7-A75-J User Manual

Module with nxp i.mx6 processor

Hide thumbs

Table of Contents

Quick Links

Download this manual

μQ7-A75-J

Extremely low power/low cost

μQseven

Rel. 2.0 Compliant

Module with NXP

i.MX6 Processor

Table of Contents

Summary of Contents for Seco Q7-A75-J

Page 1 μQ7-A75-J Extremely low power/low cost μQseven ® Rel. 2.0 Compliant Module with NXP i.MX6 Processor...
Page 2 SECO S.r.l. reserves the right to change precise specifications without prior notice to supply the best product possible. For further information on this module or other SECO products, but also to get the required assistance for any and possible issues, please contact us using the dedicated web form available at http://www.seco.com...
Page 3 3.2.2 Multiplexed signals ..........................................32 Chapter 4. Appendices ....................................38 Thermal Design ............................................39 μQ7-A75-J μQ7-A75-J User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by P.Z. - Copyright © 2016 SECO S.r.l.
Page 4 Information and assistance RMA number request Safety Electrostatic Discharges RoHS compliance Terminology and definitions Reference specifications μQ7-A75-J μQ7-A75-J User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by P.Z. - Copyright © 2016 SECO S.r.l.
Page 5: Warranty
All changes or modifications to the equipment not explicitly approved by SECO S.r.l. could impair the equipment s functionality and could void the warranty μQ7-A75-J μQ7-A75-J User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by P.Z. - Copyright © 2016 SECO S.r.l.
Page 6: Information And Assistance
A RMA Number will be sent within 1 working day (only for on-line RMA requests). μQ7-A75-J μQ7-A75-J User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by P.Z. - Copyright © 2016 SECO S.r.l.
Page 7: Electrostatic Discharges
The μQ7-A75-J module is designed using RoHS compliant components and is manufactured on a lead-free production line. It is therefore fully RoHS compliant. μQ7-A75-J μQ7-A75-J User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by P.Z. - Copyright © 2016 SECO S.r.l.
Page 8: Terminology And Definitions
Open Vector Graphics, an Open Source API dedicated to hardware accelerated 2D vector graphics μQ7-A75-J μQ7-A75-J User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by P.Z. - Copyright © 2016 SECO S.r.l.
Page 9 Transistor-transistor Logic Universal Serial Bus uSDHC Ultra Secure Digital Host Controller V_REF Voltage reference Pin μQ7-A75-J μQ7-A75-J User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by P.Z. - Copyright © 2016 SECO S.r.l.
Page 10: Reference Specifications
TMDS http://www.siliconimage.com/technologies/tmds USB 2.0 and USB OTG http://www.usb.org/developers/docs/usb_20_070113.zip http://www.nxp.com/products/microcontrollers-and-processors/arm-processors/i.mx-applications-processors-based-on-arm- NXP i.MX6 processor cores/i.mx-6-processors:IMX6X_SERIES μQ7-A75-J μQ7-A75-J User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by P.Z. - Copyright © 2016 SECO S.r.l.
Page 11 Chapter 2. Introduction Technical Specifications Electrical Specifications Mechanical Specifications Supported Operating Systems Block Diagram μQ7-A75-J μQ7-A75-J User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by P.Z. - Copyright © 2016 SECO S.r.l.
Page 12 RMII i.MX6 native interface is internally carried to a Micrel KSZ8091RN Ethernet Transceiver, allowing the implementation of a FastEthernet interface The μQ7-A75-J module is part of SECO’s “Just! Embedded” product line, which are modules totally designed around the features offered by the SOC only, with very few add-ons.
Page 13: Technical Specifications
2.2 Technical Specifications Processors Networking ® NXP i.MX6 Family, based on ARM CORTEX-A9 processors FastEthernet (10/100 Mbps) interface i.MX6S Solo - Single core up to 1GHz i.MX6DL Dual Lite - Dual core up to 1GHz per core 1 x USB OTG interface Memory 1 x USB2.0 Host interface Up to 1GB DDR3L onboard (up to 512MB with i.MX 6Solo)
Page 14: Electrical Specifications
2.3 Electrical Specifications specifications, μQ7-A75-J module needs to be supplied only with an external +5V ® According to Qseven power supply. 5 Volts standby voltage needs to be supplied for working in ATX mode. For Real Time Clock working and CMOS memory data retention, it is also needed a backup battery voltage. All these voltages are supplied directly through card edge fingers (see connector’s pinout).
Page 15: Mechanical Specifications
μQ7-A75-J module supports the following operating systems: Linux Android SECO will offer the BSP (Board Support Package) for these O.Ss, to reduce at minimum SW development of the board, supplying all the drivers and libraries ® needed for use both with the Qseven board and the Carrier Board, assuming that the Carrier Board is designed following SECO Qseven Design Guide, with the same IC’s.
Page 16: Block Diagram
Micrel KSZ8091RN Fast Ethernet Ethernet Transceiver NXP PCF2123 +5V_S, +5V_A Power section Factory Option μQ7-A75-J μQ7-A75-J User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by P.Z. - Copyright © 2016 SECO S.r.l.
Page 18 Card edge golden finger, pin 228 finger, pin 2 finger, pin 1 finger, pin 229 μQ7-A75-J μQ7-A75-J User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by P.Z. - Copyright © 2016 SECO S.r.l.
Page 19: Connectors Description
SUS_S3# PWR_MGMT Muxed functionalities SUS_STAT# PWRBTN# PWR_MGMT PWR_MGMT SLP_BTN# LIDBTN# Muxed functionalities PWGIN PWR_MGMT μQ7-A75-J μQ7-A75-J User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by P.Z. - Copyright © 2016 SECO S.r.l.
Page 20 N.A. N.C. N.C. N.A. N.A. N.C. N.C. N.A. Muxed functionalities CSPI1_MOSI CSPI1_MISO Muxed functionalities μQ7-A75-J μQ7-A75-J User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by P.Z. - Copyright © 2016 SECO S.r.l.
Page 21 TMDS_TX1- CSI_D0- Muxed functionalities HDMI TMDS_TX0+ CSI_D1+ Muxed functionalities HDMI TMDS_TX0- CSI_D1- Muxed functionalities μQ7-A75-J μQ7-A75-J User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by P.Z. - Copyright © 2016 SECO S.r.l.
Page 22 Muxed functionalities GP_TIMER_IN N.C. N.A. SPI_MOSI SPI_CS0# SPI_MISO SPI_CS1# SPI_CLK N.C. N.A. VCC_5V_SB VCC_5V_SB μQ7-A75-J μQ7-A75-J User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by P.Z. - Copyright © 2016 SECO S.r.l.
Page 24 All of the above mentioned signals can also be used for different functionalities; please refer to the pin muxing table for more details. μQ7-A75-J μQ7-A75-J User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by P.Z. - Copyright © 2016 SECO S.r.l.
Page 25 For EMI/ESD protection, common mode chokes on USB data lines, and clamping diodes on USB data and voltage lines, are also needed. μQ7-A75-J μQ7-A75-J User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by P.Z. - Copyright © 2016 SECO S.r.l.
Page 26 All of the above mentioned signals can also be used for different functionalities; please refer to the pin muxing table for more details. μQ7-A75-J μQ7-A75-J User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by P.Z. - Copyright © 2016 SECO S.r.l.
Page 27 All these signals have to be connected, on the Carrier Board, to an AC’97 or I2S Audio Codec. Please refer to the chosen Codec’s Reference Design Guide for correct implementation of audio section on the carrier board. μQ7-A75-J μQ7-A75-J User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by P.Z. - Copyright © 2016 SECO S.r.l.
Page 28 LVDS_BLT_CTRL/GP_PWM_OUT0: this signal can be used to adjust the panel backlight brightness in displays supporting Pulse Width Modulated (PWM) regulations. This pin can also be used differently, please check the pin-muxing table. μQ7-A75-J μQ7-A75-J User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by P.Z. - Copyright © 2016 SECO S.r.l.
Page 29 All of the above mentioned signals can also be used for different functionalities, please refer to the pin muxing table for more details. μQ7-A75-J μQ7-A75-J User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by P.Z. - Copyright © 2016 SECO S.r.l.
Page 31 Standard specifications, rel. 2.0, on pins designed as MFG_NC1 and MFG_NC2 are carried the NXP i.MX6 Internal UART #2 signals TX and RX, which can be used for debug purposes μQ7-A75-J μQ7-A75-J User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by P.Z. - Copyright © 2016 SECO S.r.l.
Page 32 WDT_TRIG_OUT SD2_DATA2 AUD4_TXD GPIO1_IO13 GP2_I2C_DAT/LVDS_DID_DAT SD2_DAT3 SD2_DATA3 AUD4_TXC GPIO1_IO12 FAN_TACHOIN/GP_TIMER_IN SD2_DAT0 SD2_DATA0 AUD4_RXD GPIO1_IO15 μQ7-A75-J μQ7-A75-J User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by P.Z. - Copyright © 2016 SECO S.r.l.
Page 33 USB Over Current USB_2_3_OC# KEY_ROW0 AUD5_TXD UART4_RX_DATA ECSPI1_MOSI GPIO4_IO07 USB_0_1_OC# KEY_COL1 AUD5_TXFS UART5_TX_DATA ECSPI1_MISO GPIO4_IO08 μQ7-A75-J μQ7-A75-J User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by P.Z. - Copyright © 2016 SECO S.r.l.
Page 34 CSI_DATA0_P DP_AUX- CSI_D0_DN CSI_DATA0_N RSVD (Differential Pair) CSI_D1_DP CSI_DATA1_P RSVD (Differential Pair) CSI_D1_DN CSI_DATA1_N μQ7-A75-J μQ7-A75-J User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by P.Z. - Copyright © 2016 SECO S.r.l.
Page 35 I2C2_SDA GPIO4_IO13 DP_LANE0-/TMDS_LANE2- HDMI_D2M HDMI_TX_DATA2_N HDMI_CTRL_CLK KEY_COL3 HDMI_TX_DDC_SCL SPDIF_IN I2C2_SCL GPIO4_IO12 DP_HDMI_HPD# HDMI_HPD HDMI_TX_HPD μQ7-A75-J μQ7-A75-J User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by P.Z. - Copyright © 2016 SECO S.r.l.
Page 36 GPIO_9 PWM1_OUT WDOG1_B GPIO1_IO09 eDP0_HPD#/LVDS_BLC_DAT GPIO_8 FLEXCAN1_RX I2C4_SDA GPIO1_IO08 eDP1_HPD#/LVDS_BLC_CLK GPIO_7 FLEXCAN1_TX I2C4_SCL GPIO1_IO07 μQ7-A75-J μQ7-A75-J User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by P.Z. - Copyright © 2016 SECO S.r.l.
Page 37 SATA0_RX+ SATA0_RX- WDTRIG# SD2_DAT2 WDT_TRIG_OUT SD2_DAT2 AUD4_TXD GPIO1_IO13 WATCHDOG WDOUT DISP0_DAT8 WDOG1_B PWM1_OUT GPIO4_IO29 μQ7-A75-J μQ7-A75-J User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by P.Z. - Copyright © 2016 SECO S.r.l.
Page 39: Thermal Design
Ordering Code Description μQ7-A75-J Heat Spreader (Passive), Packaged QA75-DISS-1-C-PK μQ7-A75-J HeatSink (Passive), Packaged QA75-DISS-2-C-PK μQ7-A75-J μQ7-A75-J User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by P.Z. - Copyright © 2016 SECO S.r.l.
Page 40 52100 Arezzo - ITALY Ph: +39 0575 26979 - Fax: +39 0575 350210 www.seco.com μQ7-A75-J μQ7-A75-J User Manual - Rev. First Edition: 1.0 - Last Edition: 1.0 - Author: S.B. - Reviewed by P.Z. - Copyright © 2016 SECO S.r.l.
