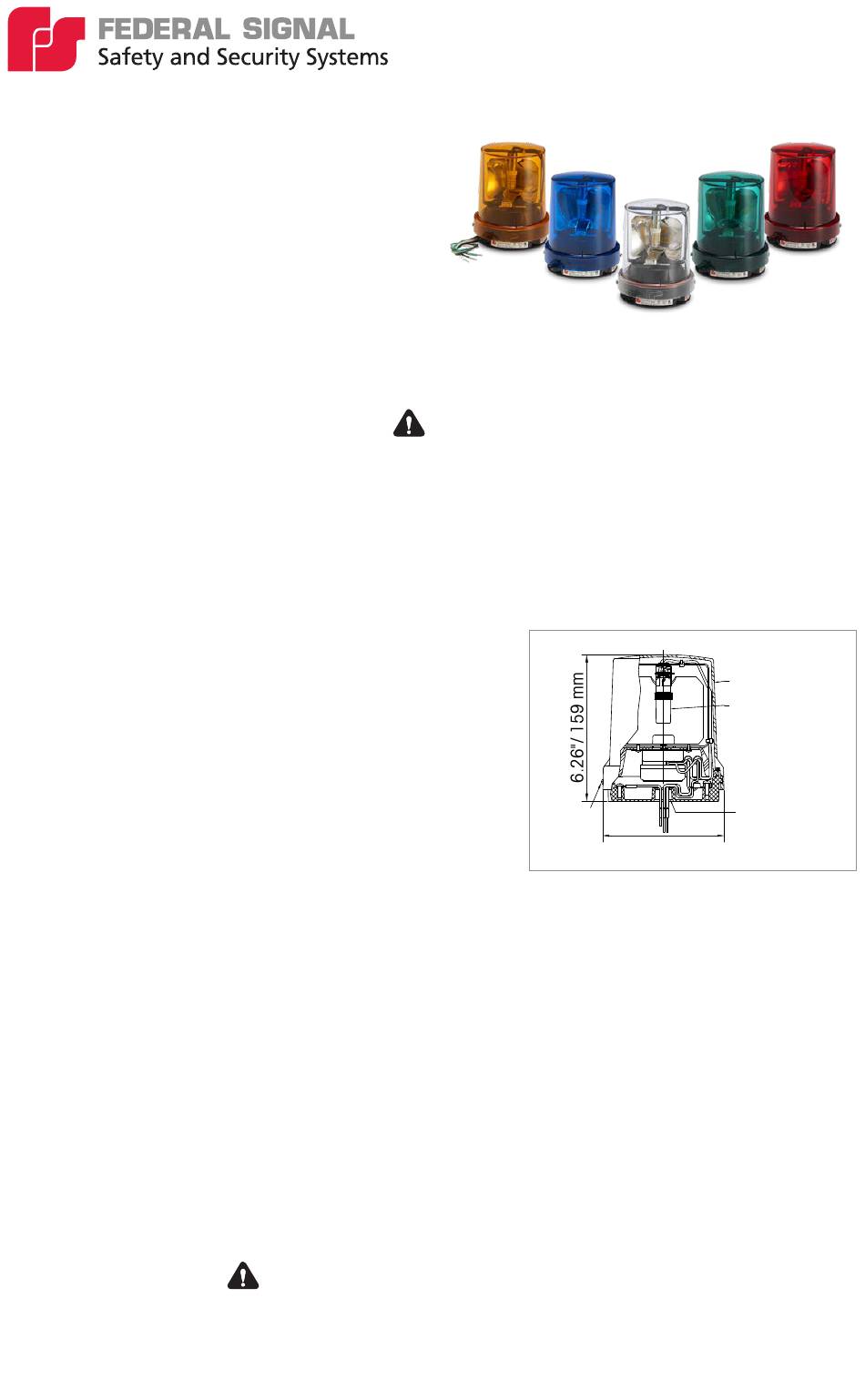

Federal Signal Corporation Vitalite 121SLED Installation And Maintenance Instructions Manual

Model 121SLED
Vitalite LED Rotating Light
®
UL/cUL Listed. Type 4X, IP66 enclosure.
IP69K compliant.
Installation and Maintenance Instructions
Warranty: This product's limited warranty can be found at
Limited
www.fedsig.com/SSG-Warranty

Safety Messages to Installers and Users

licensed electrician and follow all safety instructions. Failure to do so may result in property
damage, serious injury, or death.
• Read and understand instructions before installing or operating equipment.
• To avoid electrical shock hazards, do not connect wires when power is applied.
• To be an effective warning device, this product produces bright light that could be hazardous
to eyesight. The possibility exists that rapid flashing lights could induce photosensitive
epilepsy. Do not stare directly at the light.

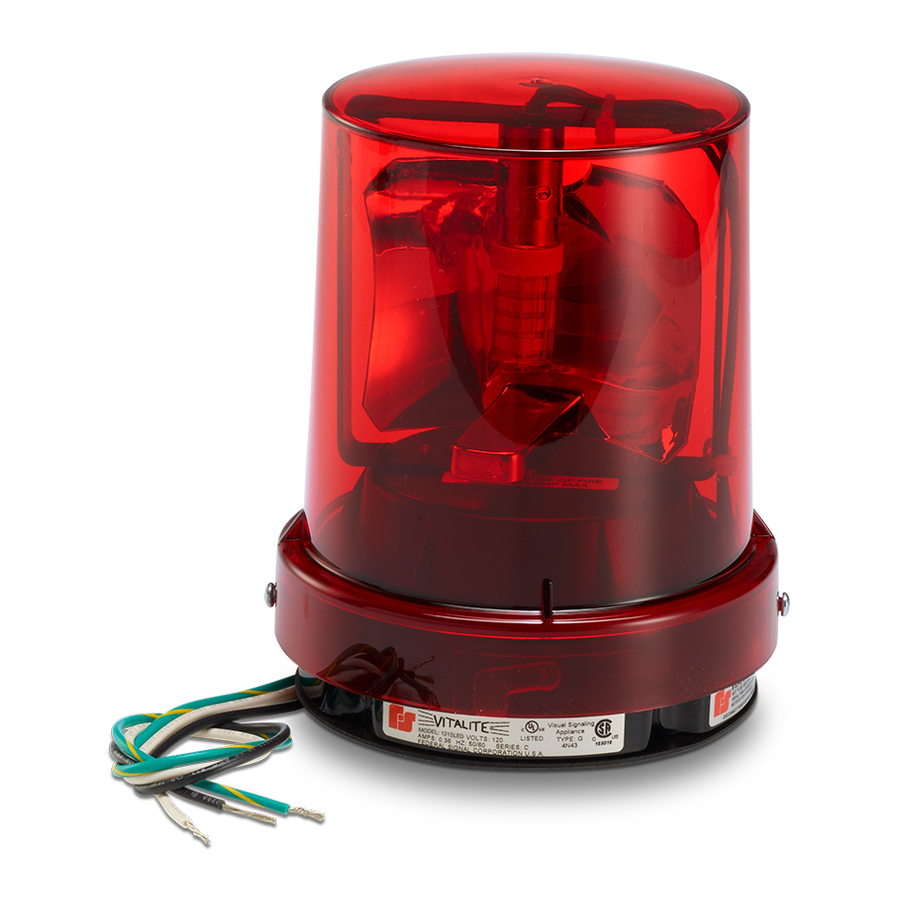

An Overview of the 121SLED: Model 121SLED rotating
LED is designed for mounting on a flat horizontal or
vertical surface or on a 1/2" NPT threaded pipe. Unit is
available in 120 VAC, 50/60 Hz. UL/cUL Listed. Type 4X,
IP66 enclosure. Electrical ratings: 120VAC 50/60Hz,
0.075A. Suitable for indoor or outdoor use. IP69K
compliant. Certified operating temperature: -40°F to
150°F (-40°C to 66°C).
Unpacking the Device: After unpacking the device,
examine it for damage and verify parts. Unit comes with:
(1) 121SLED assembled unit with flying leads, (1) panel mount gasket, and (3) # 8-32 panel
mounting tapping screws. If a part is missing or damaged do not install. Contact Federal Signal
Customer Support at +1 708-534-4756 or iordersup@fedsig.com.
Mounting the device: Unit comes standard to mount on a flat (horizontal or vertical) surface or
a 1/2" NPT pipe. Wall or corner mounting accessories are sold separately.
• Pipe Mounting – 121SLED can be pipe mounted on a 1/2" NPT pipe. Feed wires through
pipe and turn clockwise to tighten. Recommended tightening torque is 5-ft-lbs (6.8 N-m).
• Surface/Panel Mounting – Using provided gasket as template, mark three mounting holes
and center hole for wiring. Drill or punch 3/16" (4.8mm) diameter holes for mounting and
a 1" (25.4mm) for wiring. Set base on gasket, feed wires through center, and attach to the
mounting surface using provided #8 tapping screws from the underside.
• Wall/Corner Mounting – Mounting on a vertical surface with the lens positioned upward
can be accomplished using separately purchased Federal Signal wall (Model LWMB2) or
corner (Model LCMB2) mounting brackets.

Electrical Connections

energized. Use 18AWG field wiring or larger.
• 120VAC 50/60Hz Model – Connect the line (L or L1) power source lead to the black wire
and connect the neutral (N or L2) power source lead to the white wire. Connect ground to the
green/yellow wire if required.
: To avoid electrical shock, do not connect wires when circuits are
Products should be installed to code by a
:
Screw
in base
Polycarbonate
Dome
LED Lamp
1/2" NPT
Pipe Mount
5.12"/ 130 mm
