Summary of Contents for CIGWELD COMET Pipecutter

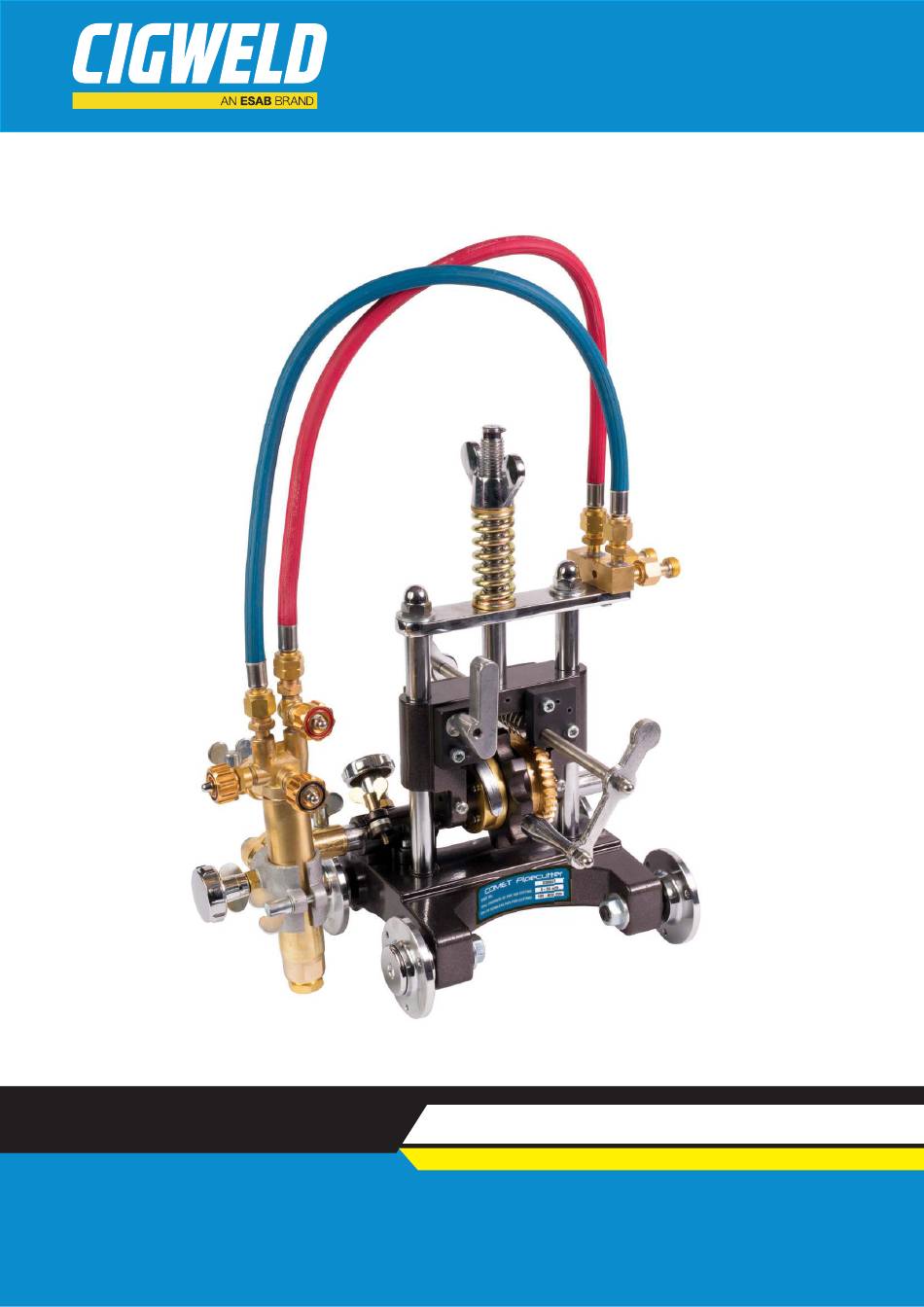

- Page 1 OPERATING MANUAL COMET Pipecutter Manual Part No: 338205-01-O18...
- Page 2 WE APPRECIATE YOUR BUSINESS! Congratulations on your new CIGWELD product. We are proud to have you as our customer and will strive to provide you with the best service and reliability in the industry. This product is backed by our extensive warranty and accredited service network.
- Page 3 While the information contained in this Manual represents the Manufacturer's best judgement, the Manufacturer assumes no liability for its use. Instruction Manual Number 338205-01-O18 for: Comet Pipecutter Published by: CIGWELD Pty Ltd CIGWELD An ESAB Brand 71 Gower Street Preston, Victoria, Australia, 3072 www.cigweld.com.au Copyright 2018 by CIGWELD An ESAB Brand All rights reserved.
- Page 4 This page intentionally left blank.
-
Page 5: Table Of Contents
TABLE OF CONTENTS SECTION 1: GAS EQUIPMENT SAFETY INSTRUCTIONS AND WARNINGS ......Page 6 1.01 Personal Safety ..................... Page 6 1.02 Cylinders – General ..................Page 6 1.03 Oxygen Cylinders ..................Page 7 1.04 Acetylene Cylinders ..................Page 7 1.05 LPG Cylinders ....................Page 8 1.06 Regulators .................... -
Page 6: Gas Equipment Safety Instructions And Warnings
SECTION 1: GAS EQUIPMENT SAFETY INSTRUCTIONS AND WARNINGS The information shown under this note must be followed carefully to avoid injuring the operator or anyone in the operating area. When an accident does occur with gas equipment, it’s usually due to the operator having become careless through over-familiarity. -
Page 7: Oxygen Cylinders
1.03 Oxygen Cylinders Oxygen cylinders are steel shells of ample strength for their purpose. Besides routine inspections, they periodically undergo a searching examination, which includes a hydraulic pressure test. Always call oxygen “Oxygen” not “Air”. Never use oxygen in pneumatic tools, in oil pre-heating burners, to start engines, to blow out pipelines or to freshen the atmosphere in confined spaces. -
Page 8: Lpg Cylinders
1.05 LPG Cylinders LPG cylinders are provided with relief valves or fusible plugs to discharge their contents and keep the cylinder pressure within safe limits should the cylinder be overheated by a fire. LPG cylinders should be used and stored upright in the open, away from combustible material. -
Page 9: Flashback Arrestors
Make sure the flashback arrestors you use now have this labelled on them. Testing AS 4289-1995 states flashback arrestors shall be tested annually, this can be done by one of CIGWELD’s extensive network of accredited service agents. Flashback arrestors should also be tested if they have been subjected to backfiring and flashbacks. - Page 10 Further, non-interchangeability of hose fittings is maintained by using a right hand (RH) thread for Oxygen and a left hand (LH) thread for fuel. CIGWELD’s COMET hose fittings fulfil all of these important requirements. Dimensions for hose fitting connector nuts and nipples are given in AS 4267.
-
Page 11: Introduction
SECTION 2: INTRODUCTION 2.01 BOX CONTENTS The Comet Pipecutter Box comes complete with the components listed below. Ensure when unpacking the box that all components are present. 1 x Comet Pipecutter 1 x Operating Manual 1 x Torch Holder 1 x Torch... -
Page 12: Installation And Use
SECTION 3: INSTALLATION AND USE 3.01 PRE-OPERATION HANDLING PRECAUTIONS Handle Torch Side Handle Drives the machine. Moves the torch left and right. Clutch Lever Torch Engages/dis-engages the handle drive worm from the chain sprocket. Up/Down Handle Gas Distributor Oxygen and acetylene gas inlets. Lateral Bar Wing Nut Chain... -
Page 13: Preparation For Operation
3.02 PREPARATION FOR OPERATION Carefully take the machine out of the case. Carefully check that the torch holder, gas distributor, torch etc. are in correct positions. Attach the gas supply hoses to the gas distributor. Oxygen hose – Blue Acetylene hose - Red ... -
Page 14: After Completion Of Use (Shut-Down)
IMPORTANT: This test should be done quickly, and it is important that there are no sources of ignition present during this process, as a certain amount gas will be released to the atmosphere. If no leaks are detected, the system is ready for use. In an Oxy/Fuel system, particular care needs to be taken to ensure that gasses are not mixed, as this may lead to flashback upon lighting up. -
Page 15: Securing Machine To Pipe
3.06 SECURING MACHINE TO PIPE 1. Calculate the necessary number of links. 2. Place the main unit on the pipe to be cut and turn the chain tension wing nut anti-clockwise to lower the slide bracket. 3. Engage the chain with the sprocket in the correct orientation as shown below. 4. -
Page 16: Cutting Operation
SECTION 4: CUTTING OPERATION Strictly observe safety rules, precautions and instructions to ensure safety during the gas cutting operation. 4.01 SAFETY PRECAUTIONS PRIOR TO OPERATION 1. Refer to the Cutting Data (see page 18) to select the right cutting nozzle for the thickness of steel pipe to be cut. 2. -
Page 17: Preparation For Cutting Operation
4.03 PREPARATION FOR CUTTING OPERATION 1. Align the nozzle with the cutting start point, ignite, and then adjust the flame. 2. Sufficiently preheat the cutting start point. 3. After heating, open cutting oxygen valve and turn the handle simultaneously to begin cutting. 4. -
Page 18: Maintenance And Inspection
SECTION 5: MAINTENANCE AND INSPECTION 5.1 Weekly Inspection Oil the rotary section of the machine (wheel, sprocket, worm gear, worm handle, handle and worm bearing), as well as the chain tension wing nut, lift shafts and sliding sections. SECTION 6: TROUBLE-SHOOTING Backfire and Flashback The most basic problems involve backfire and flashback. -
Page 19: Assembly Dimensions
SECTION 7: ASSEMBLY DIMENSIONS SECTION 8: CUTTING DATA Type 41 Oxy / Acetylene Total Oxygen Cutting Part Plate Fuel Gas Flow Flow & Pressure Speed † Number Size Thickness l/min @ 100 kPa l/min @ kPa mm/min 306069 31 (650) 306070 8-20 50 (650) -
Page 20: Accessories & Spare Parts
SECTION 9: ACCESSORIES & SPARE PARTS Part Number Description 338544 Chain 2.4m long 338547 Torch (single) 338548 Twin hose assembly (oxygen/acetylene) 338551 Gas torch holder bracket 338552 Gas torch holder 338553 Large Wheels x 2 338556 Torch nozzle nut 338557 M5 Screws x 6 338558 Gas torch to suit 3 seat nozzles... -
Page 21: Warranty
Any claim under this warranty must be made within the warranty period which commences on the date of purchase of the product. To make a claim under the warranty, take the product (with proof of purchase from a Cigweld Accredited Seller) to the store where you purchased the product or contact Cigweld Customer Care 1300 654 674 for advice on your nearest Service Provider. - Page 22 Notes.
- Page 23 This page left intentionally blank.
