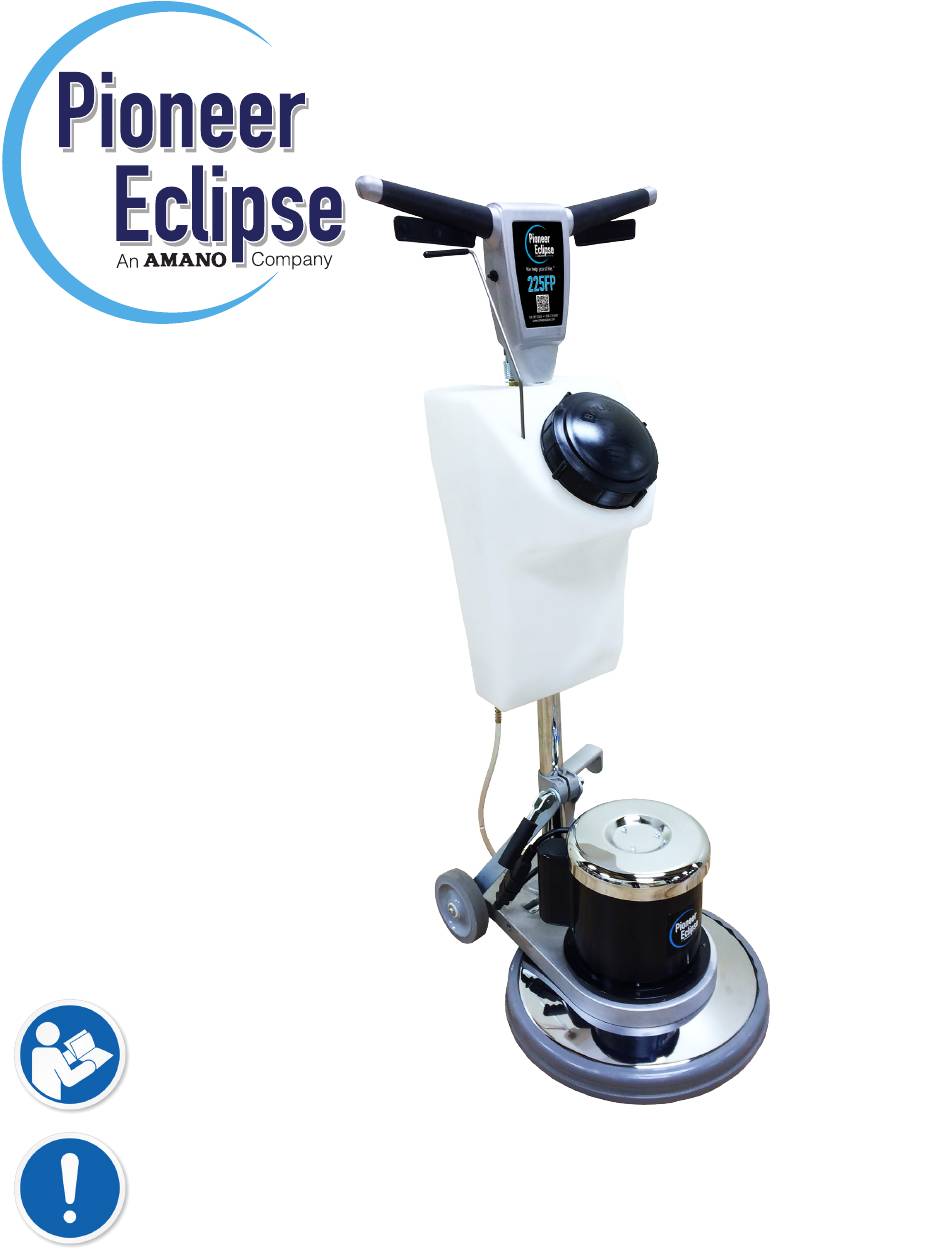

Floor Polisher
225FP16TR
Operator's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pioneer Eclipse 225FP16TR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Amano Pioneer Eclipse 225FP16TR

Summary of Contents for Amano Pioneer Eclipse 225FP16TR

  • Page 1 Floor Polisher 225FP16TR Operator’s Manual...
  • Page 2 FOR YOUR SAFETY DO NOT store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. Record This Important Information Date of Purchase Purchased From Address City State Phone Contact Machine Model Machine Serial Number Important Phone Numbers Medical Emergency...

  • Page 3: Table Of Contents

    Table of Contents Technical Specifications............4 How to Operate the Machine..........10 Safety Precautions..............5 Installing the Pad Driver........10 Operator Responsibility..........6 Operation..........10 Machine Preparation............6 After Use...............10 Unpacking the Machine..........6 Scheduled Maintenance...........11 Transporting the Machine........6 Machine Troubleshooting..........11 Grounding Instructions..........7 Parts Manual & Warranty...........12 Machine Components............8 Electrical Schematic..........13 Operator Handle Grips...........9 Motor Assembly............14...

  • Page 4: Technical Specifications

    Technical Specifications: Description Specification Voltage (V) Frequency (Hz) Current (A) Pad / Brush Speed 175 rpm Power 1.5 hp (1.1 kW) Gearbox 3-Planet Pad/Brush Size 16” (41 cm) Cord 12/3 Yellow SOOW Cord Length 50’ (15 m) Height w/ Handle 46”...

  • Page 5: Safety Precautions

    WARNING! Modifications or alterations to this machine can lead Safety Precautions to personal injury or damage to the machine. DO NOT make unauthorized modifications or alterations to this machine. Amano Anyone operating the machine should read the Pioneer Eclipse assumes no liabilities for injury or damage resulting following carefully and be informed of potentially from an unauthorized modification or alteration to the machine.

  • Page 6: Operator Responsibility

    Figure 1 Commercial use only. This machine is designed and manufactured for indoor use on hard floor surfaces. Amano Pioneer Eclipse Corporation (APEC) does not recommend use of this machine in any environment other than an indoor environment. This floor machine is designed and manufactured for commercial floor use only.

  • Page 7: Grounding Instructions

    Grounding Instructions 120 Volt Machines WARNING: To prevent possible electric shock, protect This product must be grounded while in use to protect the machine from rain. Keep the machine in a dry the operator from electrical shock. The machine is building.

  • Page 8: Machine Components

    Machine Components Operator Handle Grips Switch Levers Switch Lever Safety Lock Water Tank Fill Cap Cord Hook Handle Release Lever Water Release Handle GFCI Power Cord...

  • Page 9: Operator Handle Grips

    Operator Handle Grips Cord Hook Use the operator handle grips to operate and move To prevent the cord from being damaged while not is the machine. The switch levers on the underside of use, wrap the cord around the cord hook and the top of the handle grips, turn the motor on and off.

  • Page 10: How To Operate The Machine

    How to Operate the Machine Note: When the switch levers (3) are released, the Installing the Pad Driver machine shuts off immediately. WARNING! Make sure lid is secure on water tank 5. To release water from the water tank, pull up on the before tilting back the machine.

  • Page 11: Scheduled Maintenance

    Check the power cord for damage  Check machine wiring for fray or cut These items must be performed with the proper tools and training. Contact an Amano Pioneer Eclipse Factory Certified Technician unless you have the proper equipment and mechanical proficiency. Machine Troubleshooting...

  • Page 12: Parts Manual & Warranty

    225FP16TR Floor Polisher Parts Manual Notes: ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________...

  • Page 13: Electrical Schematic

    Electrical Schematic...

  • Page 14: Motor Assembly

    Motor Assembly Item Ref. No. Description Item Ref. No. Description 40694A CAPACITOR, START 53848A PLATE, MOUNTING 53191A CAPACITOR, RUN 40698A ENDBELL 53360A COVER, CAPACITOR 41053A CORD, IEC 53190A SWITCH, START 747553 RELIEF, STRAIN 902550 BEARING, BALL, 6203...

  • Page 15: Gearbox Assembly

    Gearbox Assembly Note: Use 8 ounces of grease in Gearbox Item Ref. No. Description Item Ref. No. Description 53646A GEARBOX, 1.5 HP 58520A SPACER, SLEEVE 503802 GREASE, 14 OZ 69195A COUPLING, SHAFT (NOT SHOWN) 54408A GEAR, PLANET 80141A SCREW, #10 -32 X 1” 54856A GEAR, RING 902606...

  • Page 16: Handle Assembly

    Handle Assembly RF062000 050416...
  • Page 17 Handle Assembly (continued) Item Ref. No. Description 61373A TUBE, HANDLE 40789A CORD, INTERCONNECT 21075A HANDLE, REAR 50781A CLAMP, HANDLE 21074A HANDLE, FRONT 10687A MODULE, INTERLOCK, ASM. 80290A SCREW, #10 X 3/8” 80291A WASHER, FLAT, #10 980603 WASHER, EXT LK, #10 MP484700 CORD, ADAPTER, GFCI 80284A...

  • Page 18: Main Assembly

    Main Assembly RF062300 050416...
  • Page 19 Main Assembly (continued) Item Ref. No. Description Item Ref. No. Description MP498500 HANDLE, ASM. MP481100 DRIVER, PAD 21088A FRAME, MAIN MP499200 DECAL, HANDLE, 225FP 80294A SCREW, SH, 5/16” X 1-5/8” 980349 WASHER, WEAR 61725A AXLE MP484900 TANK, WATER, 2-1/2 GAL, ASM. 61740A ARM, LINK, LEFT 56383098...

  • Page 20: Tank Assembly

    Tank Assembly RF054700 062915...
  • Page 21 Tank Assembly (continued) Item Ref. No. Description Item Ref. No. Description RV009500 LOOP, FOOTMAN 920280 NUT, JAM, 5/8” NB049100 SCREW, BH, #10 X 7/8” MP485900 GRIP, 3/16” X 2.50” NB030700 NUT, LOCK, #10 MP487000 PLUG, VALVE, ASM. MP252000 FITTING, 1/8” MNPT X 1/4” HB MP485200 HOUSING, VALVE MP485600...

  • Page 22: Manufacturer's Warranty

    Department at 1-800-367-3550 or 1-336-372-8080. If you are (2) The machine must have been purchased from Amano Pioneer dissatisfied with the service that you receive, call or email Amano Eclipse Corporation or an authorized Amano Pioneer Eclipse Pioneer Eclipse Corporation Customer Service Department at Corporation Distributor.
  • Page 24 Amano Pioneer Eclipse Corporation 1 Eclipse Rd l PO Box 909 Sparta, North Carolina 28675 l USA www.pioneereclipse.com +1-336-372-8080 1-800-367-3550 Fax +1-336-372-2913 LT074400 © 2016 Amano Pioneer Eclipse Corporation 225FP HDTR_A...
