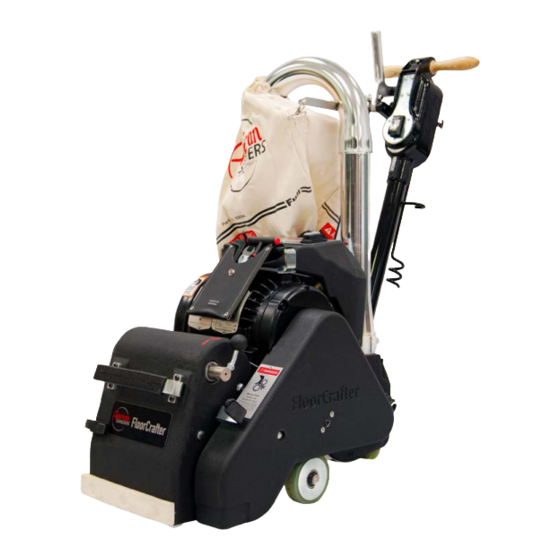

Amano American SANDERS FloorCrafter Operator's Manual

Hide thumbs Also See for American SANDERS FloorCrafter:
Table of Contents

Advertisement

Quick Links

Download this manual
Belt Sander
FloorCrafter
Operator's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the American SANDERS FloorCrafter and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Amano American SANDERS FloorCrafter

Summary of Contents for Amano American SANDERS FloorCrafter

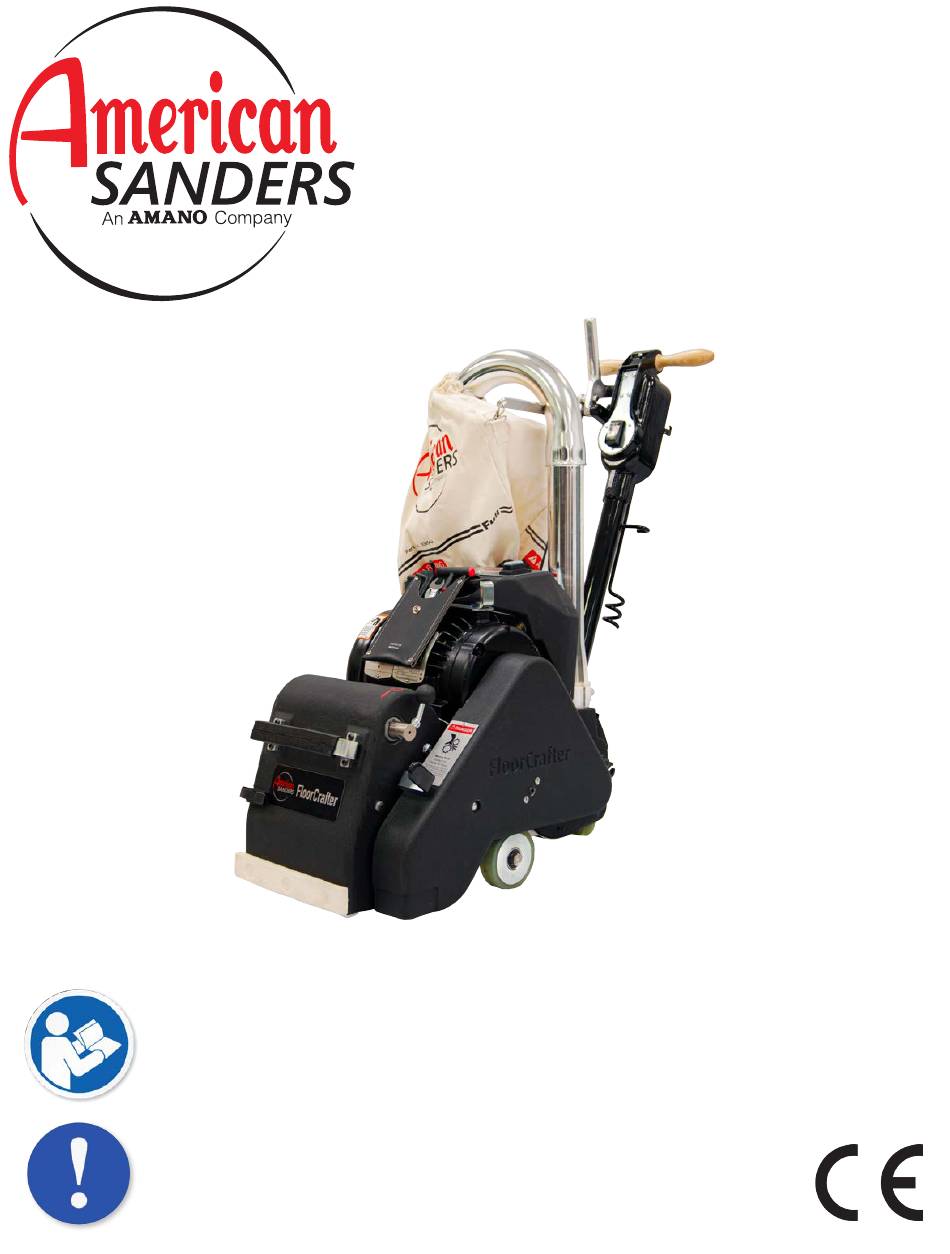

  • Page 1 Belt Sander FloorCrafter Operator’s Manual...

  • Page 3: Table Of Contents

    READ THIS BOOK This book has important information for the use and safe operation of this machine. Failure to read this book prior to operating or attempting any service or maintenance procedure to your American Sanders machine could result in injury to you or to other personnel;...
  • Page 4 DANGER: Failure to read the Owner’s Manual prior to operating or servicing your American Sanders machine could result in injury to you or to other personnel; damage to the machine or to other property could occur as well. You must have training in the operation of this machine before using it.
  • Page 5 General Power Tool Safety Warnings WARNING: Read all safety warnings and instructions. Failure to follow warnings and instructions may result in electric shock, fire and or serious injury. Save all warnings and instructions for future use. Safety Warnings For Sanding Operations This power tool is intended to function as a sander.
  • Page 6 General Power Tool Safety Warnings Additional Rules For Safe Operation Empty the dust bag or dust collection receiver frequently. Do not leave residue in dust bag or dust collection receiver unattended. Always empty into a non-combustible metal container. Sanding wood or varnish produces dust that can self ignite and cause injury or damage.

  • Page 7: Introduction

    Introduction The FloorCrafter can be used on a variety of surfaces. It is an ideal tool for wood flooring maintenance and restoration work. Machine Specifications Part # 07239A Model FloorCrafter 8 Electrical Requirements 240V~, 50Hz / 11.8 A, 2.2kW Sound Emission (Lpm)* 96.2 dB(A) Vibration 2.88 m/s...

  • Page 8: Machine Transportation

    Machine Transportation WARNING: The machine is heavy. Remove the motor from the machine before transporting. Get help loading the machine and motor. Use proper lifting techniques. Transporting the Machine - Using the Dolly Cart CAUTION: When deploying the dolly, the drum will contact the floor or ground over which the machine is resting. Care should be taken to avoid surfaces which might damage or contaminate the drum.
  • Page 9 Figure 7 Transporting the Machine - One Person Figure 8 NOTE: This is accomplished by removing the motor from the chassis and transporting the motor and chassis separately. Transporting the Machine by Carrying - Two People To transport the machine, follow this procedure 1.

  • Page 10: Machine Setup

    Machine Setup To set-up your machine, follow this procedure: Familiarize yourself with the machine and read all danger, warning, and caution statements. Make sure all operators of this machine have read this Operator's Manual. If they cannot read this manual, have the manual explained fully before allowing anyone to operate the sander.

  • Page 11: Machine Operation

    FRANÇAIS Assemblage de l’appareil 7. Insérez une nouvelle bande abrasive en la glissant au- dessus du rouleau compensateur et du tambour. (voir figure 12). 8. Faites tourner le levier à blocage rapide vers l’arrière pour resserrer la bande abrasive. MISE EN GARDE : Ne forcez pas le levier à...

  • Page 12: Sanding Cuts & Sandpaper

    Operating Instructions WARNING: Serious operator injury could occur if the operator has tied or strapped the loose end of the operator’s belt strap to the machine. Always wrap the strap so that you can let go and get away quickly in case of bag fire or explosion.

  • Page 13: Chatter-Wave Prevention

    Cómo evitar marcas de vibraciones y ondulaciones Chatter Wave Prevention Las máquinas de Clarke Sanders están diseñadas y fabricadas con las American Sanders belt sanders are designed and manufactured to the most rigid tolerancias más estrictas. Sin embargo, después de un corte de acabado, es tolerances.

  • Page 14: Sander Adjustment Procedure

    ESPAÑOL FRANÇAIS Sander Adjustment Procedures Procédures de réglage de Procedimientos de ajuste la ponceuse de la lijadora DANGER: Electrocution could occur if maintenance and repairs are performed on a unit that is not properly disconnected from the PELIGRO: Puede producirse electrocución si se realizan power source.
  • Page 15 uniforme. Si es necesario, realice los ajustes correspondientes. 3. Marque la nueva ubicación del indicador en la unidad principal Alineación de la correa NOTA: La correa de lijado debe correr uniformemente sobre la cara de la Belt Tracking rueda de contacto. Para esto, el borde exterior de dicha correa debe estar a NOTE: The sanding belt should run evenly on the face of the drum.

  • Page 16: Routine Maintenance

    Routine Maintenance The following items need to be periodically inspected and maintained to keep your sander in good working condition. Sanding Chamber Periodically blow out the sanding chamber to prevent large accumulations of debris which could interfere with the performance of the tension roller. NOTE: The tension lever should be in the run/tight abrasive position to blow out.

  • Page 17: Troubleshooting

    Troubleshooting...
  • Page 18 Troubleshooting Problem Cause Action Burning or glazing. Dull abrasive. Replace abrasive. Excessive sanding pressure. Decrease sanding pressure setting. (Fig. #16, page 14). Too fine of an abrasive belt. Use coarser abrasive. Slow cutting. Dull abrasive. Replace abrasive. Too fine of an abrasive belt. Use a coarser abrasive belt.
  • Page 20 FloorCrafter Belt Sander Parts Manual Notes: ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ ________________________________________________ 20 52...

  • Page 21: Wiring Diagram

    Wiring Diagram RF081500 102120...

  • Page 22: Handle Assembly

    Handle Assembly Handle Assembly RF081200 111120...
  • Page 23 Handle Assembly Item Ref. No. Description 10145A MOUNT HANDLE CONTROL 64405A HANDLE-STEERING 20016A SWITCHBOX SANDER 21904C CLAMP STEERING HANDLE-BLACK 25601A LEVER CONTROL CLASSIC 8 NB071200 SCREW, SHOULDER, 1/2" X 5/8" X 3/8-16 85818A SCREW 5/16-18 X 2-1/2 HX HD 53537A ROD END 3/8-24 R.H.

  • Page 24: Base Assembly

    Base Assembly BASE ASSEMBLY BASE ASSEMBLY 33 18 33 18 RF066100 RF066100 051419 051419...
  • Page 25 Base Assembly Item Ref. No. Description ACCESSORIES 962184 SCR 1/4 -20X 3/8 ST ST KNURL 56106070 BEARING, BALL Item Ref. No. Description 19611A WHEEL ASM CASTER 80 A 53560A BELTLEATHER OPERATORS 20019A BRACKET LEVELING 50954A BAG DUST SANDERS AS068200 FRAME, FLOORCRAFTER, CE 53718A ADAPTOR 2 HOSE FITTING 50992A...

  • Page 26: Belt Tensioner Assembly

    BELT TENSIONER ASSY Belt Tensioner Assembly...
  • Page 27 Belt Tensioner Assembly Item Ref. No. Description 699202 WIRE TIE 925546 PIN-3/16X1/2 ROLL 962165 SCR 10-24X 3/16 ST ST CUPPT 962870 SCR 3/8 -16X1 BT ST ALLEN 10247A CAM RELEASE WELDMENT 30087A BOOT-BELT TENSIONING ASM 51099A KNOB RELEASE 51211A E-RING .25 DIA 51216A ROD END FEMALE 51221A...

  • Page 28: Dolly Assembly

    Dolly Assembly DOLLY ASSEMBLY RF066200 103116...
  • Page 29 Dolly Assembly Item Ref. No. Description 10392A DOLLY ASSEMBLY FLOORCRAFTER (ALL ITEMS EXCEPT 3 & 14) 39857A WHEEL 5 X 1.50 X .500 51372A SKEWER, QUICK RELEASE 60346A BRACKET RIGHT MOUNTING 60347A BRACE DOLLY 60348A BRACKET RIGHT 60349A BRACKET LEFT 80047A BOLTSHOULDER 1/2DIA X 1-3/4 87627A...

  • Page 30: Dust Control Assembly

    Dust Control Assembly Dust Control Assembly RF081100 102120...
  • Page 31 Dust Control Assembly Item Ref. No. Description 20026B COVER, FAN, BLACK 60366A PULLEY FAN 51111A BEARING BALL 902567 BEARING BALL DOUBLE SEALED 60370A SHAFT FAN 877304 RING RETAINING INT., .918OD 23301A 61602A COLLAR 66170A PULLEY IDLER - 3L CLASSIC 8 60414A ARM IDLER PNTD8 BELT SANDER 68010A...

  • Page 32: Motor Assembly

    Motor Assembly Capacitor Box Assembly Capacitor Box Assembly RF081300 102120 RF081300 102120 RF081400 102120...
  • Page 33 Motor Assembly Item Ref. No. Description Item Ref. No. Description AS068000 MOTOR 2.2 kW 51215A BEARING FLANGE 5/8 X 1 X 1 51273A KEY HEX 3/32 80138A NUT, JAM, 5/8-11 51222A SCREW, BELT TENSIONING 52421A PAD STOP 10173A ASSY MOTOR MOUNT 51111A BEARING BALL 60365A...

  • Page 34: Sanding Drum Assembly

    Sanding Drum Assembly ENGLISH SANDING DRUM ASSY Item Ref. No. Description 56382754 Beltabrasive100grt 8sndrs Cs=5 20021A Access Door 51024A Belt Drive 51051A Bearing Carrier 51052A Shaft Arbor 51053A Pulley Drum 51211A E-Ring .25 Dia 51223A Bearing Ball 51224A Bearing Ball 60376A Plate Drum End 60389A...
  • Page 35 Sanding Drum Assembly Item Ref. No. Description 56382754 BELTABRASIVE100GRT 8SNDRS CS=5 20021A ACCESS DOOR 51024A BELT DRIVE 51051A BEARING CARRIER 51052A SHAFT ARBOR 51053A PULLEY DRUM 51211A E-RING .25 DIA 51223A BEARING BALL 51224A BEARING BALL 60376A PLATE DRUM END 60389A PIN HINGE 70236A...

  • Page 36: Norms / Directives

    EC Machinery Directive 2006/42/EC We, Amano Pioneer Eclipse Corp. (1 Eclipse Road, PO Box 909, Sparta NC28675, USA) with authorized EU representative (see info under section importer) declare under our sole responsibility that the following described equipment in our delivered version complies with the appropriate basic safety and health requirements of the above-mentioned Directives based on its design and type, as brought into circulation by us.
  • Page 37 07239A Serial Tag...

  • Page 38: Warranty

    Limited Warranty FloorCrafter TO QUALIFY FOR THIS WARRANTY INSTRUCTIONS AND CONDITIONS FOR WARRANTY REIMBURSEMENT (1) Machine must be registered within 30 days from the time of purchase on a form provided by American Sanders. Your Order replacement part: Orders will be processed and charged, American Sanders Distributor is responsible for the registration as normal procedure.
  • Page 40 American Sanders an AMANO Company 1 Eclipse Rd l PO Box 909 Sparta, North Carolina 28675 l USA www.pioneereclipse.com www.americansanders.com +1-336-372-8080 1-800-367-3550 Fax 1-336-372-2913 LT085700 © 2020 American Sanders FloorCrafter CE 12.21.20...
