Summary of Contents for Amano Pioneer Eclipse 250MFP

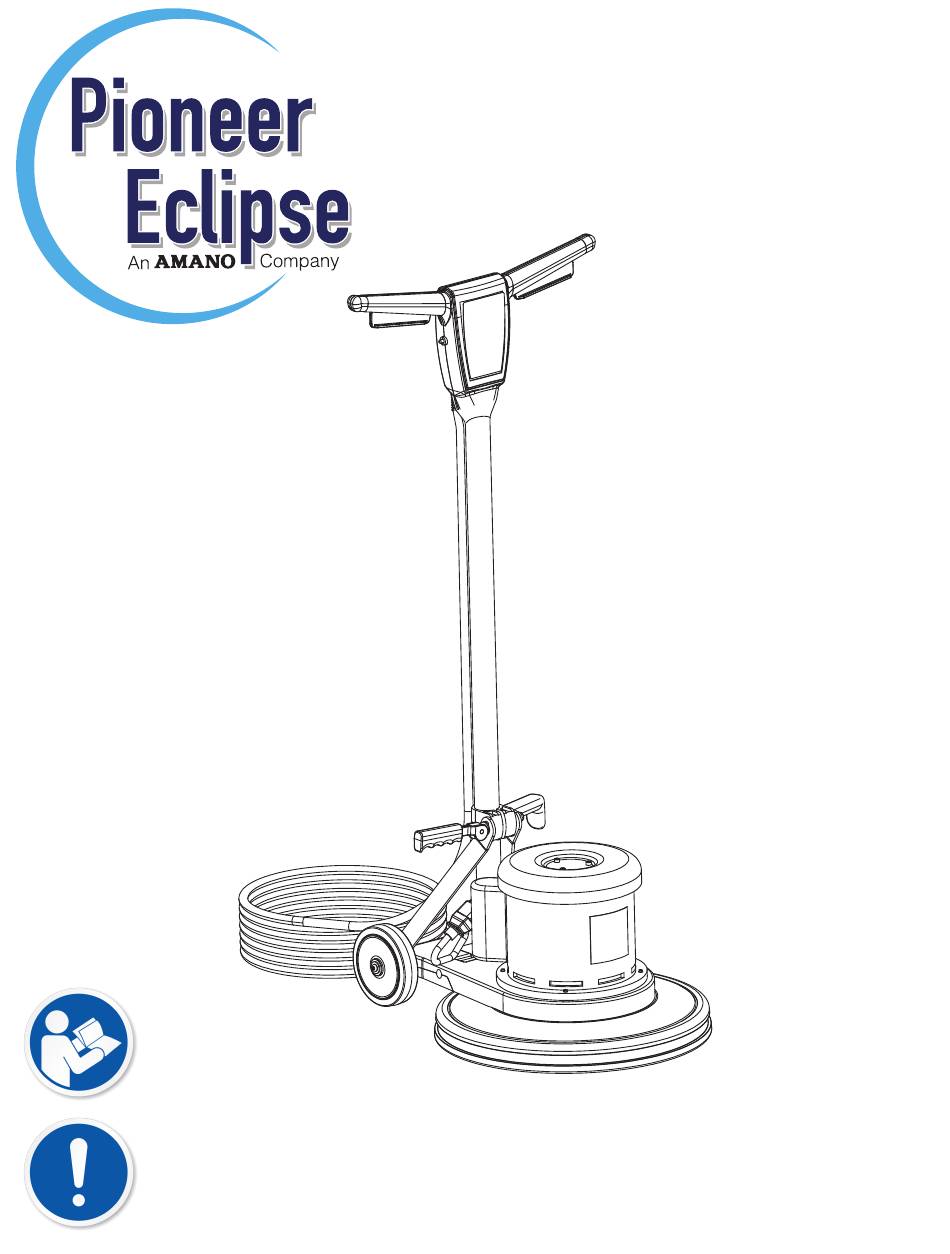

- Page 1 Modular Floor Polisher 250MFP & 250MGP Operator’s Manual...
-
Page 2: For Your Safety
FOR YOUR SAFETY DO NOT store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. Record This Important Information Date of Purchase Purchased From Address City State Phone Contact Machine Model Machine Serial Number Important Phone Numbers Medical Emergency... -
Page 3: Table Of Contents
Table of Contents Safety Precautions..............4 How to Operate the Machine..........11 Technical Specifications............5 Shroud Removal And Attachment.......11 Operator Responsibility............6 Installing the Pad Driver or Brush......11 Machine Preparation............6 Installing the Planetary Driver......11 Unpacking the Machine..........6 Operation..........11 Transporting the Machine........6 After Use...............12 Assembling the Handle........6 Scheduled Maintenance...........12 Grounding Instructions..........7 Machine Troubleshooting..........12... -
Page 4: Safety Precautions
WARNING! Modifications or alterations to this machine can lead Safety Precautions to personal injury or damage to the machine. DO NOT make unauthorized modifications or alterations to this machine. Amano Anyone operating the machine should read the Pioneer Eclipse assumes no liabilities for injury or damage resulting following carefully and be informed of potentially from an unauthorized modification or alteration to the machine. -
Page 5: Technical Specifications
Technical Specifications: Description 250MFP17 250MFP20 250MGP17 Voltage (V) Frequency (Hz) Current (A) Pad / Brush Speed 175 rpm 175 rpm Power 1.5 hp (1.1 kW) 1.5 hp (1.1 kW) 1.5 hp (1.1 kW) Gearbox 3-Planet 3-Planet 3-Planet Pad/Brush Size 17" (43 cm) 20”... -
Page 6: Operator Responsibility
2. Using two 3/4” wrenches, tighten the locknut to the This machine is designed and manufactured for bolt. indoor use on hard floor surfaces. Amano Pioneer Eclipse Corporation (APEC) does not recommend 3. Connect the handle interconnect cord to the motor use of this machine in any environment other than an cord. - Page 7 Transporting the Machine Figure 2 To transport the machine, follow this procedure: 1. Raise and lock the handle in the upright position. To lock the handle, push down on the handle release lever (See Figure 2). 2. Unplug the machine from wall outlet and wrap cord around the handle and cord hook.
-
Page 8: Grounding Instructions
Grounding Instructions WARNING: To prevent possible electric shock, protect 120 Volt Machines the machine from rain. Keep the machine in a dry This product must be grounded while in use to protect building. the operator from electrical shock. The machine is WARNING: To prevent possible electric shock, always provided with a three-conductor cord and a three contact use a 3-wire electrical system connected to the electrical... -
Page 9: Machine Components
Machine Components Operator Handle Grips Switch Levers Switch Lever Safety Lock Water Tank Cord Hook Water Release Handle Handle Release Lever Power Cord... -
Page 10: Operator Handle Grips
Operator Handle Grips Handle Release Lever Use the operator handle grips to operate and move This handle is used to release or lock the operators the machine. The switch levers on the underside of handle. Pulling up on the lever will allow the handle to the handle grips, turn the motor on and off. -
Page 11: How To Operate The Machine
How to Operate the Machine Installing the Planetary Driver LT094100 MANUAL Place the handle in the upright (vertical) position and Shroud Removal and Attachment lock the handle release lever. Tilt the machine back on To Remove: Place the handle in the upright (vertical) the transport wheels and let the handle rest on the floor. -
Page 12: Operation
Check the power cord for damage • Check machine wiring for fray or cut These items must be performed with the proper tools and training. Contact an Amano Pioneer Eclipse Factory Certified Technician unless you have the proper equipment and mechanical proficiency. -
Page 13: Machine Troubleshooting
Machine Troubleshooting Problem Possible Cause Solution Check the main power supply (building circuit breaker). No power Check the cord connection at the wall outlet Switch lever safety lock not depressed Hold in the switch lever safety lock and then engage switch levers. Machine will not start Bad connection Check the motor and cord interlock connections. -
Page 14: Electrical Schematic
Electrical Schematic - 120V RF068800... -
Page 15: Main Assembly (250Mfp20)
MAIN ASSEMBLY (250MFP) MAIN ASSEMBLY 250MFP17 & 250MFP20 ITEM NO. QTY. PART NO. DESCRIPTION ITEM NO. QTY. PART NO. DESCRIPTION NB017100 WASHER, FLAT, NARROW, 1/2" AS087800 WASHER, WEAR, CAM, SS NB018000 WASHER, FLAT, NYLON, 1/2" NB086600 BOLT, HEX, 1/2-13 X 9 1/2, ZN MP565900 DRIVER, PAD, 17 MOD(250MFP17) NB003100... -
Page 16: Main Assembly 250Mgp17
MAIN ASSEMBLY (250MGP17) MAIN ASSEMBLY 250MGP17 ITEM NO. PART NUMBER DESCRIPTION QTY. ITEM NO. PART NUMBER DESCRIPTION QTY. AS087800 WASHER, WEAR, CAM, SS MP566000 CHASSIS ASM, MODULAR NB086600 BOLT, HEX, 1/2-13 X 9 1/2, ZN AS126900 DRIVER, 17", PLANETARY, ASM. AS133700 SHROUD, 17", PLANET, MOD, ASM. -
Page 17: Base Assembly
BASE ASSEMBLY MODULAR BASE ASSEMBLY ITEM NO. QTY. PART NUMBER DESCRIPTION 61741A LINK ARM RIGHT 21088A MAIN FRAME AS127100 LUG, MOUNTING, MODULAR NB086800 SCREW, SHF, 5/16 X 2.5 39857A WHEEL 5 POLISHER 980648 WASH-17/32 ID X 1&1/16 OD PLN 80295A WASHER BOWED .516ID X 1.06OD 61725A AXLE .50 X 11.34... -
Page 18: Handle Assembly
HANDLE ASSEMBLY HANDLE ASSEMBLY ITEM NO. QTY. PART NUMBER DESCRIPTION 61373A HANDLE TUBE 21075A HANDLE BACK CFP 21074A HANDLE FRONT CFP 80284A SCREW, SHC, #10-32 X 3/4 50781A CLAMP HANDLE C2K 80290A SCREW, SHC, #10-32 X 3/8 80291A WASHER, FLAT, #10 980603 WASHER, LK 10 EXT TOOTH 40789A... -
Page 19: 17" Planetary Shroud Assembly
17” PLANETARY SHROUD ASSEMBLY 17" PLANETARY SHROUD ASSEMBLY ITEM QTY. PART NUMBER DESCRIPTION NB024100 PIN, HITCH, EXTERNAL NB060600 WASHER, NYLON, .200 ID x .437 NB060700 WASHER, NYLON, .218 ID x .625 NB049200 SCREW, BH, #10-24 X 5/8, SS NB9735 NUT, NYLOK, #10-24 MP098700 RETAINER, HITCH PIN, PLATE, CLIP AS129600... -
Page 20: 17" Planetary Driver Assembly
17” PLANETARY DRIVER ASSEMBLY 17" PLANETARY DRIVER ASSEMBLY RF098300 1/3/2025... - Page 21 17” PLANETARY DRIVER ASSEMBLY 17" PLANETARY DRIVER ASSEMBLY ITEM NO. QTY. PART NUMBER DESCRIPTION AS129501 PLATE, DRIVER, PLANETARY NB086000 SPACER, .63 OD X .28 ID X 1.38 AS126700 GEAR, PLANETARY AS004600 PLATE, CLUTCH, DRIVER NB074900 SCREW, FHSCS, 1/4-20 X 2 1/4 747304 RING RETAIN ARM BRG 37 NB070200...
-
Page 22: Modular Head Options
MODULAR HEAD OPTIONS MODULAR HEAD OPTIONS SA040002 KIT, 17" MODULAR HEAD ITEM NO. QTY. PART NUMBER DESCRIPTION AS133300 SHROUD, 17", MOD, ASM. 30725A SKIRT RS-16DC MP565900 DRIVER, PAD, 17 MOD SA040001 KIT, 20", VAC, MODULAR HEAD ITEM NO. QTY. PART NUMBER DESCRIPTION AS133600 SHROUD, 20", VAC, MOD, ASM. - Page 23 MODULAR HEAD OPTIONS MODULAR HEAD OPTIONS SA040005 KIT, 13" MODULAR HEAD ITEM NO. QTY. PART NUMBER DESCRIPTION AS133200 SHROUD, 13", MOD, ASM. AS134200 SKIRT, 13" DIA X 3"H FABRIC MP565600 DRIVER, PAD, 13, MOD SA040004 KIT, 17" PLANETARY MODULAR HEAD ITEM NO.
-
Page 24: Motor & Gearbox Assembly
Motor & Gearbox Assembly MOTOR PARTS LIST ITEM NO. PART NUMBER DESCRIPTION QTY. 40694A CAPACITOR, START 53191A CAPACITOR, RUN 53360A COVER, CAPACITOR 53190A SWITCH, START 902550 BEARING, BALL, 6303 53848A PLATE, MOUNTING 40698A ENDBELL 41053A CORD, IEC 747553 RELIEF, STRAIN 61716A COVER DRIP STD 80290A... -
Page 25: Gearbox Assembly
Gearbox Assembly Note: Use 8 ounces of grease in Gearbox 53647A Item Ref. No. Description Item Ref. No. Description 53646A GEARBOX, ASM. 58520A SPACER, SLEEVE 53647A GREASE, TUBE, 14OZ 69195A COUPLING, SHAFT 54408A GEAR, PLANET 80141A SCREW, SH, #10 X 1” 54856A GEAR, RING 902606... - Page 28 Amano Pioneer Eclipse Corporation 1 Eclipse Rd l PO Box 909 Sparta, North Carolina 28675 l USA www.pioneereclipse.com +1-336-372-8080 1-800-367-3550 Fax +1-336-372-2913 LT094100 250MFP-GP_A © 2025 Amano Pioneer Eclipse Corporation 012825...
