Drum Sander
American 12
Operator's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the American Sanders American 12 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Amano American Sanders American 12

Summary of Contents for Amano American Sanders American 12

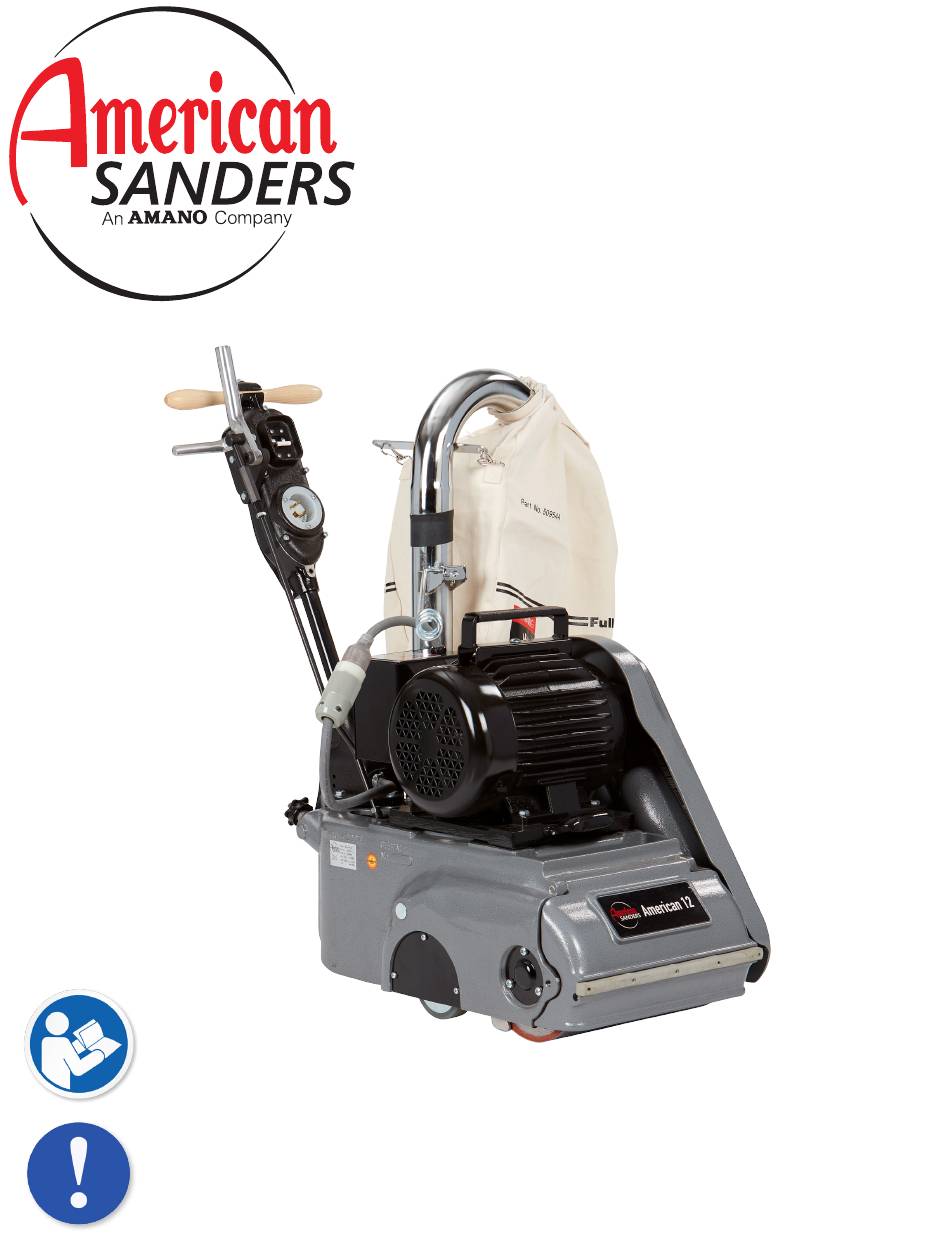

  • Page 1 Drum Sander American 12 Operator’s Manual...

  • Page 2: Table Of Contents

    DANGER: Failure to read the Owner’s Manual prior to operating or servicing your American Sanders machine could result in injury to READ THIS BOOK you or to other personnel; damage to the machine or to other property could occur as well. You must have training in the operation of this machine before using it.
  • Page 3 If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) or ground fault circuit Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. As interrupter (GFCI ) protected supply. Use of a RCD or GFCI reduces the risk of electric shock . appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stopping flying debris generated by various operations.

  • Page 4: 230V Electrical Connection Instructions

    Introduction Electrical Connection Instructions Operating Controls CAUTION: This machine will operate only on AC fre- quency and on electrical voltage shown on the equipment nameplate. Make sure you Motor Starter / Protector have the correct frequency and voltage before connecting the power cord to an outlet. See the example in figure 1.

  • Page 5: Machine Set-Up

    Machine Transportation Machine Set-up To set-up your machine follow this procedure: 11. Tighten the abrasive. WARNING: The machine is heavy. Remove the motor 1. Familiarize yourself with the machine and read all danger, To tighten the abrasive, follow this procedure: from the machine before transporting.
  • Page 6 Operating Instructions Operating Instructions 1. Install the operator's belt as follows: DANGER: Sanding/finishing wood floors can create a. Position the operator's belt around waist. an environment that can be explosive. b. Cross the straps at the waist. See figure 5. Cigarette lighters, pilot lights and any other c.

  • Page 7: Sanding Cuts And Sandpaper

    Operating Instructions Sanding Cuts and Sandpaper Initial Cut The purpose of the initial cut is to remove old finish and gross imperfections on the floor surface. The sanding equipment should be adjusted to heavy sanding pressure setting and a coarse abrasive should be used. If the surface is severely damaged by deep scratches, pre-existing dwell marks, uneven planks, etc., it may be necessary to sand across or diagonally to the grain to restore evenness to the surface.

  • Page 8: Routine Maintenance

    Sander Adjustment Procedures Routine Maintenance Leveling The following items need to be periodically inspected and main- tained to keep your sander in good working condition. If the sanding drum is out of adjustment, follow this Wheels procedure: Periodically remove the debris from the truck and caster wheels. 1.

  • Page 9: Troubleshooting

    Troubleshooting Chatter - Wave Prevention Problem Action Cause Drive belts slip. Insufficient tension. Tension drive belt. American Sanders Sanders are designed and manufactured to the most rigid tolerances. However, after a (Squeaking or squealing sound) finishing cut it is possible to see “chatter” or “waves”. Worn belts.
  • Page 10 Chatter - Wave Prevention LEA ESTE MANUAL Este manual contiene información importante para el uso y la operación segura de la máquina. El hecho de no leer este manual antes de operar su máquina American Sanders o realizar cualquier procedimiento de servicio o mantenimiento, puede resultar en que usted u otros miembros del personal sufran lesiones.
  • Page 11 Introducción PELIGRO: El hecho de no leer el Manual del operador antes de operar su máquina American Sanders o realizar tareas de mantenimiento, puede resultar en que usted u otros miembros del personal sufran lesiones. Asimismo, pueden producirse daños a la máquina o a otras propiedades. Antes de utilizar esta máquina, debe capacitarse en la operación de la misma.
  • Page 12 Transporte de la máquina Instrucciones para la conexión eléctrica PRECAUCIÓN: Esta máquina funciona únicamente con ADVERTENCIA: la frecuencia de CA y el voltaje eléctrico que La máquina es pesada. Retire el se indican en la placa de identificación del motor de la máquina antes de transportarla. equipo.
  • Page 13 Configuración de la máquina Instrucciones de uso Para configurar la máquina, siga este procedimiento: 11. Ajuste el papel abrasivo. PELIGRO: El lijado/acabado de pisos de madera 1. Familiarícese con la máquina y lea todas las indicaciones puede generar un ambiente que puede ser de peligro, advertencia y precaución.
  • Page 14 Instrucciones de uso Instrucciones de uso 1. Colóquese el cinturón del operador como se indica a continua- ción: a. Colóquese el cinturón alrededor de la cintura. b. Cruce las correas a la altura de la cintura. Consulte la Figura 5. c.
  • Page 15 Pasadas de lijado y papel de lija Procedimientos de ajuste de la lijadora Asada inicial Nivelación El propósito de la pasada inicial es eliminar el acabado y las imperfecciones gruesas de la superficie del piso. El equipo de lijado debe establecerse Si el tambor de lijado está...
  • Page 16 Mantenimiento periódico Resolución de problemas Los siguientes componentes se deben inspeccionar y mantener Problema Medida Causa periódicamente para conservar la lijadora en buenas condiciones de funcionamiento. Las correas de transmisión se La tensión es insuficiente. Tense la correa de transmisión. deslizan.
  • Page 17 Prevención de vibraciones y ondas Prevención de vibraciones y ondas 3) UNEVEN WALKING PACE..can leave lengthy “waves”. The machine cuts more material during Las lijadoras American Sanders están diseñadas y fabricadas con las tolerancias más estrictas. Sin embar- RITMO DE AVANCE IRREGULAR: puede provocar que queden “ondas” grandes. go, después de una pasada de acabado es posible que queden “marcas de vibración”...
  • Page 18 Drum Sander American 12 Section II Parts Manual...

  • Page 19: Handle Assy (Models 07108A, 07109A, 07204A, 07108C)

    HANDLE ASSY (MODELS 07108A, 07109A, 07204A, 07108C) HANDLE ASSY (MODELS 07108A, 07109A, 07204A, 07108C) Model 07108A, 07204A, 07108C AS016800 Cord, Power, 100', 230V (model 07109A) AS016800 22127C Cover, Switch Box-Black Cord, Power, 100', 230V (model 07109A) (Not Shown) 43501A Inlet- 20A, 250V AS016800 Cord, Power, 100', 230V (model 07109A) (Not Shown) Cord-Interconnecting...

  • Page 20: Handle Assy (Model 07001A, 07108B)

    HANDLE ASSY (MODEL 07001A, 07108B) HANDLE ASSY (MODEL 07001A, 07108B) HANDLE ASSY [MODEL 07001A] HANDLE ASSY [MODEL 07001A] Parts List Parts List PART PART ITEM QTY DESCRIPTION ITEM QTY DESCRIPTION NUMBER NUMBER 920284 NUT STOP ELASTIC 1/4-20 80021A BOLT, SHOULDER 3/8 X 5/8 HEAVY NB071200 SCREW, SHOULDER, 1/2"...

  • Page 21: Handle Assy (Model 07120A)

    HANDLE ASSY (MODEL 07120A) HANDLE ASSY (MODEL 07120A) Item Ref. No. Qty Description 920284 Nut Stop Elastic 1/4-20 Heavy 925036 Pln-3/32x3C/4 otter 962015 Screw1 0-24X 3/8P nS t Ph 962794 5 Screw1 0-24x1P nS t Ph 20704C Box-Switch 21102c Bracke-Ht andle 21904C ClampS teeringH andle- Black 22127C...

  • Page 22: Motor Assy (Model 07001A, 07108B)

    MOTOR ASSY (MODEL 07001A, 07108B) MOTOR ASSY (MODELS, 07108A, 07109A, 07204A, 07108C) FRONT MOTOR ASSY (MODEL 07001A, 07108B) 1 56381703 MOTOR PULLEY AM-12 3 170674 CONNECTOR WIRE NUT - RED 1 56382557 MOTOR CORD 3P-4W 1 962870 SCR 3/8 -16X1 BT ST ALLEN (07108A, 07109A, 07204A, 07108C) 1 56382827 CABLE CONNECTOR 3/4 1 MX1075...

  • Page 23: Motor Assy (Model 07120A)

    MOTOR ASSY (MODEL 07120A) DRUM ASSEMBLY DRUM ASSEMBLY DRUM ASSEMBLY Parts List Parts List PART PART ITEM QTY DESCRIPTION ITEM QTY DESCRIPTION NUMBER NUMBER 55400A KEY 3/16 X 3/4 DIA. HYPRO 67818A SPACER, SHAFT DRUM 920280 NUT-5/8-18X3/8 HEX JAM 67819A SPACER-SHAFT DRUM 980644 WASHER, FELT, 5/8 SAE...

  • Page 24: Dust Control Assy

    DUST CONTROL ASSY DUST CONTROL ASSY AS030400 Belt Fan (Models 07108A, 07109A, 07204A, 07120A, 07108C) AS018600 Belt, 3V 35.5 (Model 07001A, 07108B)
  • Page 25 ASE ASSEMBLY ASE ASSEMBLY Item Ref. No. Description 501345 Plug, Button 25/32 FM 962015 Screw, 10-24 x 3/8 PN ST PH 10243A Wheel Asm, Urethane 23406A Frame 25200C Knob Hand - Black 25600A Lever - Reach 29403C Yoke Wheel - Black 60101A Axle 60715B...

  • Page 26: Base Assy

    BASE ASSY (MODELS 07044C, 07049C) BASE ASSY (MODELS 07044C, 07049C) Item Part No. Description 501345 Plug, Button 25/32 FM 962015 Screw, 10-24 x 3/8 PN ST PH 23406A Frame 25200C Knob Hand - Black 25600A Lever - Reach 29403C Yoke Wheel - Black 59928A Wheel, Steel, American 8 &...

  • Page 27: Belt Guard Assy (Models 07108A, 07109A, 07204A, 07108C)

    BELT GUARD ASSY (MODELS 07108A, 07109A, 07204A, 07108C) BELT GUARD ASSY (07001A, 07108B) BELT GUARD ASSY [07001A] (MODELS 07108A, 07109A, 07204A, 07108C) BELT GUARD ASSY (07001A,07108B) Parts List ITEM PART NUMBER DESCRIPTION 21902C CLAMP - BELT GAURD - BLACK 23801A GAURD - BELT PNTD 26000C NUT - BLACK...

  • Page 28: Accessories

    BELT GUARD ASSY (MODEL 07120A) ACCESSORIES (std on models 07108A, 07109A, 07120A, 07204A, 07108C) Leather Operators Belt (std on models 07108A, 07109A, 07120A, 07204A, 07108C) (std on models 07108A, 07109A, 07120A, 07204A, 07001A, 07108C, 07108B) (std on models 07108A, 07109A, 07120A, 07204A, 07001A, 07108C, 07108B) (std on models 07108A, 07109A, 07204A, 07108C) (std on models 07108A, 07109A, 07120A, 07204A, 07001A, 07108C, 07108B)
  • Page 29 WIRING DIAGRAM Model (07001A, 07108B) WIRING DIAGRAM Models (07044C, 07049C, 07108A and 07109A)

  • Page 30: Warranty

    Limited Warranty Garantía limitada American 12 American 12 PARA CALIFICAR PARA ESTA GARANTÍA INSTRUCCIONES Y CONDICIONES PARA EL REEMBOLSO DE TO QUALIFY FOR THIS WARRANTY INSTRUCTIONS AND CONDITIONS FOR WARRANTY GARANTÍA (1) El equipo debe registrarse dentro de los 30 días a partir de la REIMBURSEMENT fecha de compra en un formulario proporcionado por American l Pida la pieza de reemplazo: Los pedidos se procesarán y...
  • Page 31 Garantie limitée American 12 POUR ÊTRE ADMISSIBLE À LA PRÉSENTE GARANTIE INSTRUCTIONS ET CONDITIONS POUR L’OBTENTION D’UN REMBOURSEMENT SOUS GARANTIE (1) L’appareil doit être inscrit dans les 30 jours suivant la date d’achat à l’aide de la fiche fournie par American Sanders. l Commande de pièce de rechange : Les commandes sont L’enregistrement de votre appareil s’effectue auprès de votre traitées et facturées comme toute procédure normale.
  • Page 33 American Sanders an AMANO Company 1 Eclipse Rd l PO Box 909 Sparta, North Carolina 28675 l USA www.pioneereclipse.com www.americansanders.com +1-336-372-8080 1-800-367-3550 Fax 1-336-372-2913 LT069100 © 2021 American Sanders American 12_H 080321...
