Summary of Contents for Amano American Sanders American 8

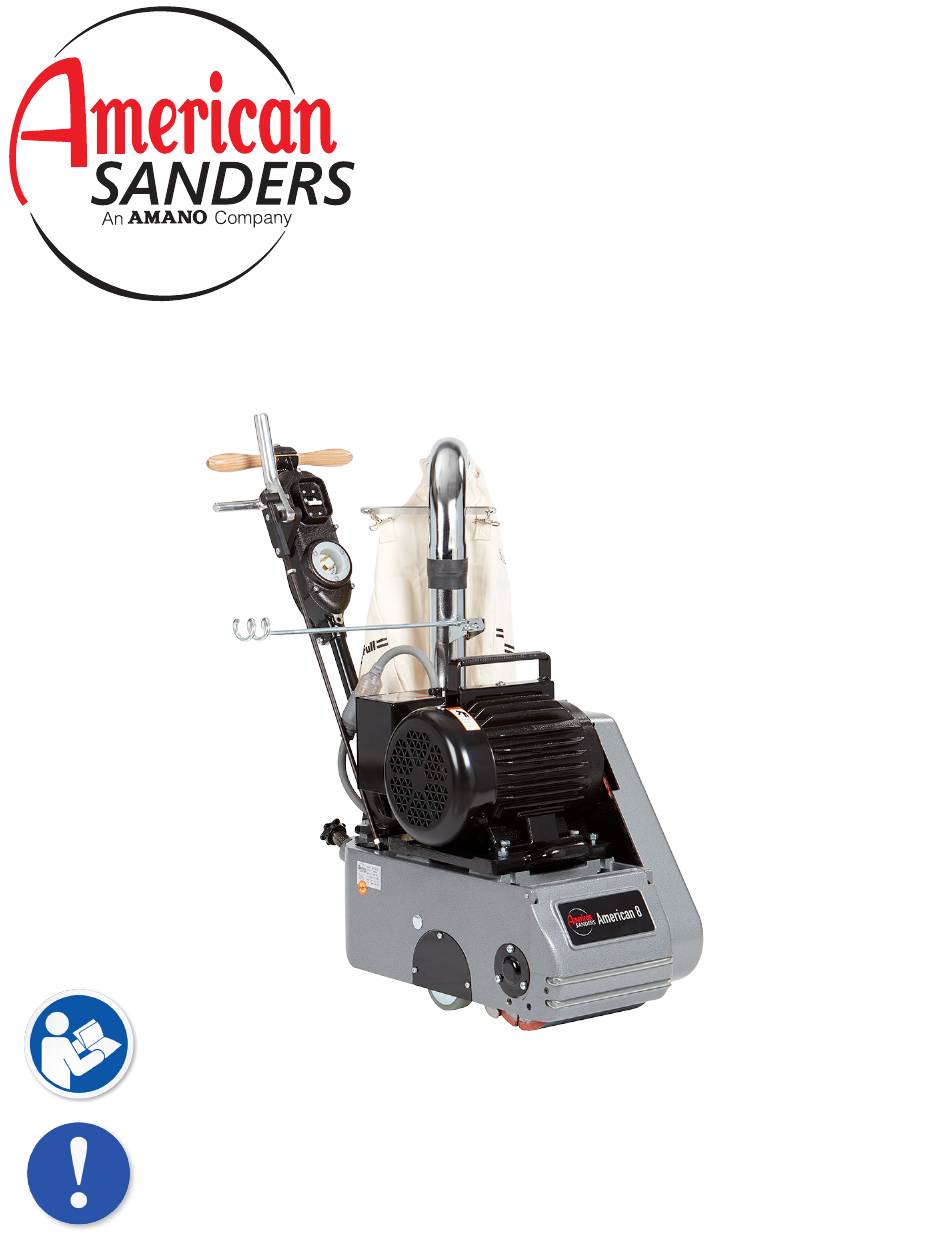

- Page 1 Drum Sander American 8 Operator’s Manual...
-
Page 3: Table Of Contents
READ THIS BOOK This book has important information for the use and safe operation of this machine. Failure to read this book prior to operating or attempting any service or maintenance procedure to your American Sanders machine could result in injury to you or to other personnel;... - Page 4 DANGER: Failure to read the Owner’s Manual prior to operating or servicing your American Sanders machine could result in injury to you or to other personnel; damage to the machine or to other property could occur as well. You must have training in the operation of this machine before using it.
- Page 5 If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) or ground fault circuit interrupter (GFCI ) protected supply. Use of a RCD or GFCI reduces the risk of electric shock. 3) Personal safety Stay alert, watch what you are doing and use common sense when operating a power tool.
- Page 6 Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stopping flying debris generated by various operations. The eye protection must be capable of stopping flying debris generated by various operations . The dust mask or respirator must be capable of filtering particles generated by your operations.
-
Page 7: Machine Specifications
Machine Specifications Model American 8 PART NUMBER 07032C 07105A 07048C 07106A Abrasive Size 8 x 26½” paperback 20.3 x 67.3 cm Contact Wheel Speed (rpm)* 2400/2800 2000/2333 Abrasive Speed (sfm)* (m/min)* 4398/5131 sfm 1117/1303 m/min. Dust Fan Speed (rpm)* 6000 5000 Dust Fan Flow (cfm)* 210 cfm... -
Page 8: 230V Electrical Schematic
230V Electrical Connection Instructions CAUTION: This machine will operate only on AC frequency and on electrical voltage shown on the motor nameplate. Make sure you have the correct frequency and voltage before connecting the power cord to an outlet. The machine has a plug as shown below. -
Page 9: Machine Setup
Machine Set-Up To set-up your machine follow this procedure: 1. Familiarize yourself with the machine and read all danger, warning and caution statements. Make sure all operators of this machine have read this Owner’s Manual. If they cannot read English, have the manual explained fully before allowing anyone to operate the sander. 2. -
Page 10: Chatter-Wave Prevention
Machine Set-Up Initial Cut: The purpose of the initial cut is to remove old finish and gross imperfections on the floor surface. The sanding equipment should be adjusted to heavy sanding pressure setting and a coarse abrasive should be used. If the surface is severely damaged by deep scratches, pre-existing dwell marks, uneven planks, etc., it may be necessary to sand across or diagonally to the grain to restore evenness to the surface. -
Page 11: Machine Operation
Operating Instructions DANGER: To operate the machine follow this procedure: Sanding/finishing wood floors can create an environment that can be explosive. 1. Install the operator’s belt as follows: Cigarette lighters, pilot lights and any a. Position the operator’s belt around waist. other source of ignition can create an b. - Page 12 E. Work the remaining unsanded floor E. Work the remaining unsanded floor in the same fashion, right to left. in the same fashion, right to left. Figure 6 ® Clarke Page 12 American Sanders American 8 Floor Sander Operator's Manual...
- Page 13 Sander Adjustment Procedures DANGER: Electrocution could occur if maintenance and repairs are performed on a unit that is not properly disconnected from the power source. Disconnect the power supply before attempting any maintenance or service. DANGER: Moving parts of this machine can cause serious injury and/or damage.
-
Page 14: Sander Adjustments
1. Loosen the locknut on the control rod. See figure 9. 2. Screw the control rod adjuster out until desired reach is found. Figure 9 3. Tighten the locknut. ® Clarke American Sanders American 8 Floor Sander Operator's Manual Page 15... -
Page 15: Routine Maintenance
Routine Maintenance The following items need to be periodically inspected and maintained to keep your sander in good working condition. Wheels Periodically remove the debris from the truck and caster wheels. Debris can cause waves on a sanded surface. Lubricate truck mechanism every 25 hours of use. -
Page 16: Troubleshooting
Troubleshooting Problem Cause Action Drive belts slip. Insufficient tension. Tension drive belts (Squeaking or squealing sound) Worn belts. Replace belts. Squealing, growling or grinding Damaged and/or worn bearing. Remove drive belts, rotate arbor noise coming from machine. motor, fan, shafts and idler pulley to located ragging or rough bearing Contact an authorized dealer. - Page 17 Notes...
-
Page 19: Wiring Diagram
Wiring Diagram WIRING DIAGRAM ® Clarke American Sanders American 8 Floor Sander Operator's Manual Page 19... -
Page 20: Handle Assy
Handle Assembly... - Page 21 Handle Assembly Item Ref. No. Description Cord Set 41706A Connector 962065 Screw- 8-32 x 1/4 Pn St Mach 43501A Inlet - 20A, 250V 962070 Screw- 6-32 x 1/4 PnS t Mach 980607 Washer - #1106 Shakeproof 962794 Screw- 10-24 x 1 980650 Washer - 3/16 Lock 22127C...
-
Page 22: Base Assy - 1
Base Assembly - 1... - Page 23 Base Assembly - 1 Item Ref. No. Description Item Ref. No. Description 62800A Pipe - Assembly 962823 Screw - 1/4 - 20 x 1/2 Pn St Mach 85706A Screw - 1/2 - 13 x 13/4 Hex St 77234A Label, Lifting Warning 87006A Washe-r 14/25 X 119/50 X 11/100 Flat 66169A...
-
Page 24: Base Assy - 2
Base Assembly - 2... -
Page 25: Accessories
Base Assembly - 2 Item Ref. No. Description Item Ref. No. Description 962052 Screw - 10-24 x 1/2 Flt St Mach 67821A Spacer 962161 Screw - 10-24 x 3/4 St St Cuppt 81102A Nut, 1/4-20 ESNA 25200C Knob - Hand 29403C Yoke, Wheel 66912A... -
Page 26: Warranty
Limited Warranty American 8 TO QUALIFY FOR THIS WARRANTY Order replacement part: Orders will be processed and charged, as normal procedure. (1) Machine must be registered within 30 days from the time Call American Sanders for R/A number. of purchase on a form provided by American Sanders. You will need the Machine Serial Number and the Your American Sanders Distributor is responsible for the registration of your machine. - Page 28 American Sanders an AMANO Company 1 Eclipse Rd l PO Box 909 Sparta, North Carolina 28675 l USA www.pioneereclipse.com www.americansanders.com +1-336-372-8080 1-800-367-3550 Fax 1-336-372-2913 LT069200 AMERICAN 8_H © 2019 American Sanders 080919...
