Avantco Equipment MX60 User Manual

Gear driven 60 qt. commercial mixer

Advertisement

Quick Links

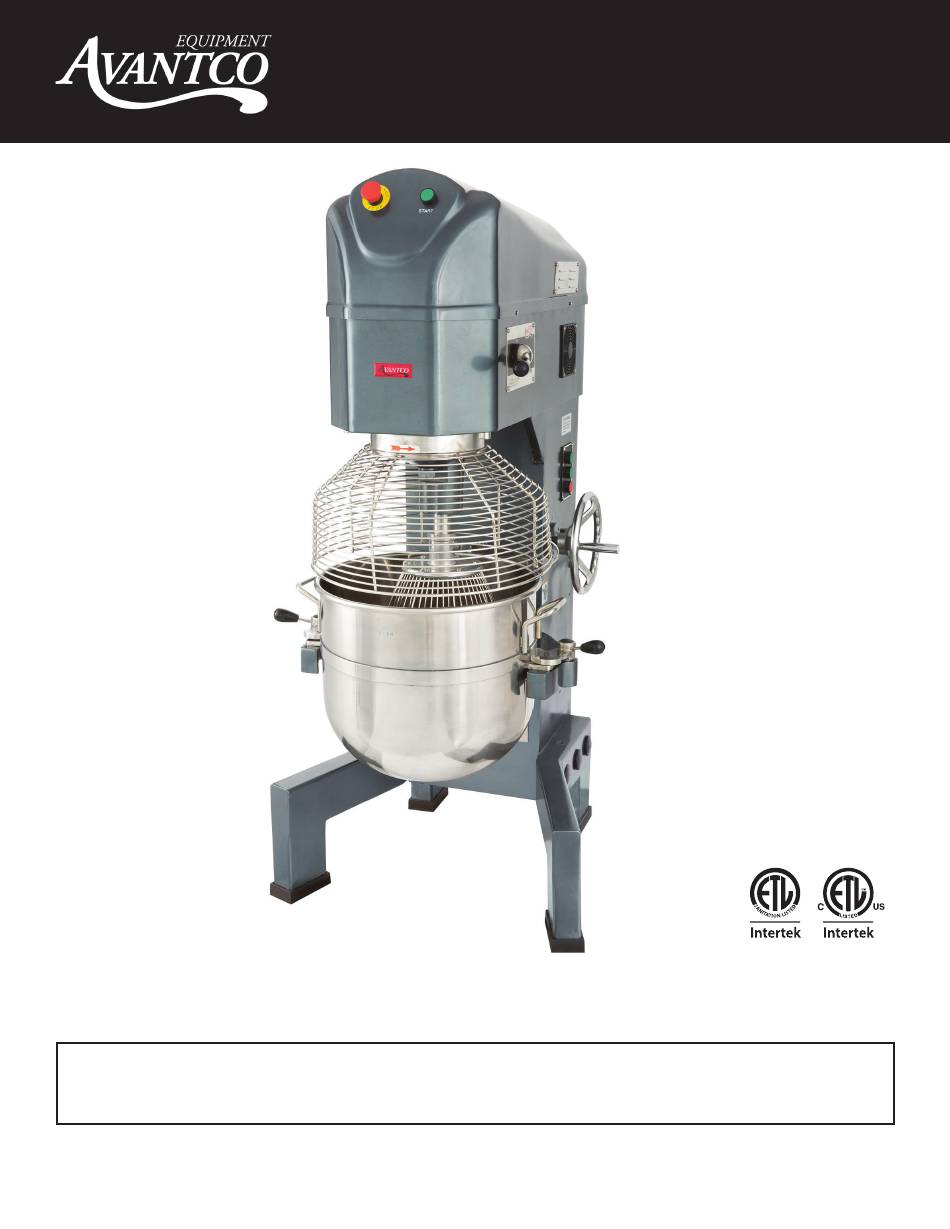

Gear Driven 60 Qt. Commercial Mixer
Models: MX60
Please read and keep these instructions. Indoor use only.
www.AvantcoEquipment.com
User Manual
User Manual
Shifting gears while this unit is
running will void warranty.
05/2021
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the MX60 and is the answer not in the manual?

Questions and answers

Summary of Contents for Avantco Equipment MX60

  • Page 1 User Manual User Manual Gear Driven 60 Qt. Commercial Mixer Shifting gears while this unit is Models: MX60 running will void warranty. 05/2021 Please read and keep these instructions. Indoor use only. www.AvantcoEquipment.com...
  • Page 2: Table Of Contents

    User Manual Index Standard Accessories ............ 3 Operation Instructions ..........3 Mixer Capacity Chart ............. 4 Figure 1: Top Cover and Hand Cart ....... 5 Figure 2: Center Axle ............. 6 Figure 3: Gear Axle ............7 Figure 4: Motor ............... 8 Figure 5: Fork ..............
  • Page 3: Standard Accessories

    STANDARD ACCESSORIES STANDARD ACCESSORIES OPERATION INSTR FIGURE 10 STANDARD ACCESSORIES User Manual FIGURE 10 STANDARD ACCESSORIES FIGURE 10 Please ensure power supply m Please ensure power supply m FIGURE 10 NEMA 5015P 110V 110V FOR CHANGING THE SPEED: before changing speed in order t STANDARD ACCESSORIES OPERATION INSTRUCTION FOR CHANGING THE SPEED:...
  • Page 4: Operation Instructions

    OPERATION INSTRUCTION CTION OPERATION INSTRUCTION User Manual OPERATION INSTRUCTION s your machine s your machine. Please ensure power supply matches your machine Please ensure power supply matches your machine. Please ensure power supply matches your machine stop machine first NEMA 5015P damage to the gear box 110V Please ensure power supply matches your machine...
  • Page 5: Mixer Capacity Chart

    User Manual Mixer Capacity Chart Maximum Bowl Product Agitator and Speed Capacity Bread and Roll Dough -60 % AR Dough Hook - 1st only 50 lb. Heavy Bread Dough -55% AR Dough Hook - 1st only 40 lb. Pizza Dough, Thin -40% AR Dough Hook - 1st only 25 lb.
  • Page 6 User Manual TOP COVER AND HAND CART Figure 1 Descviption Description top cover start switch urgent stop timer relay body foot wheel pulling board joint handle www.AvantcoEquipment.com...
  • Page 7 User Manual CENTER AXLE Figure 2 Descviption Description Center axle roundlet board Up board Gear ring Engager Center axle Center axle ring Mid-speed passive gear Gasket Small join Small join gasket High-speed passive gear Gigh-speed passive copper Oil seal 60*90*10 Bearing 6210 Oil seal 50*80*10 Ring for cente axle...
  • Page 8 User Manual GEAR AXLE Figure 3 Item Descviption Descviption Description Axle Bearing 80207 Sleeve reactor Gear Sleeve Gear board Sleeve Gear screw Sleeve ring Gear Screw M10*20 Gasket gear bearing gear NOTES handwheel Be sure that the keys are inserted for each gear.
  • Page 9 User Manual MOTOR Figure 4 Descviption Description Descviption motor motor oil seal oil seal spiral spiral stop ring stop ring NOTES NOTES If the motor does not work, first verify the power If the motor does not work, first verify the power power source and connection are correct.
  • Page 10 User Manual FORK Figure 5 Descviption Descviption Description Spring gasket Spring gasket Fork axle Fork axle Fork nut Fork nut Fork spring Fork spring Fork small axle Fork small axle www.AvantcoEquipment.com...
  • Page 11 User Manual SPEED BLOCK Figure 6 Descviption Center axle roundlet board Up board Gear ring Engager Center axle Center axle ring Mid-speed passive gear Gasket Small join Small join gasket High-speed passive gear Gigh-speed passive copper Oil seal 60*90*10 Bearing 6210 Oil seal 50*80*10 Ring for cente axle Key 12*8*60...
  • Page 12 User Manual BOWL LIFTER UNIT Figure 7 Item Descviption Description Descviption Axle Bearing 80207 reactor Sleeve Gear Sleeve board Gear Sleeve screw Gear ring Sleeve Gear Screw M10*20 gear Gasket bearing gear NOTES handwheel Be sure that the keys are inserted for each gear.
  • Page 13 User Manual TURNING PLATE AND MIXING AXLE Figure 8 380V Before using, please check power supply if it m your machine and be sure ground wire is eliable Descviption Description Inner gear Before testing, please take mixing device off firs Screw order to avoid damage machine which is match ving direction.
  • Page 14 User Manual ELECTROMOTION TYPE BOWL LIFTER UNIT Figure 9 Descviption Description Screw M6*16 Spring gasket 6 Gasket Lift big belt wheel Screw M6*25 Bearing 6004 Lift gear box cover Screw M4*14 Bearing cover Motor transmission axle Key 5*12 Gear Stop ring 18 Lift gear box Oil cover Nut M12...
  • Page 15: Three Phase Motor Diagram

    SK1 30S timer K reactor 177MX60 30M timer motor proximity switch lift motor SPECIFICATIONS safety protect switch Type MX60 Capacity 60 QT. Power Supply 240V Phase Input Power 1750W Hertz 60 Hz Horsepower 2 1/2 HP Max. Flour Capacity 50 LB.
  • Page 16: Troubleshooting

    User Manual The machine must be put in the dry and flat ground, and make su Cleaning The machine must be put in the dry and flat ground, and make sure the machine steadily. machine steadily. We can use four screws to fix the bracket, so the mixer will not sh WARNING: DISCONNECT THE MACHINE FROM THE POWER SOURCE BEFORE CLEANING We can use four screws to fix the bracket, so the mixer will not shake or All new mixer bowls and accessories including whips, beaters, and dough hooks should be properly washed before use.
  • Page 17: Warranty Information

    Limited Service Warranty Avantco Equipment warrants its equipment to be free from defects in material and workmanship for a period of 1 year when purchased from an authorized dealer. This is the sole and exclusive warranty made by Avantco covering your Avantco brand e or equipment.
