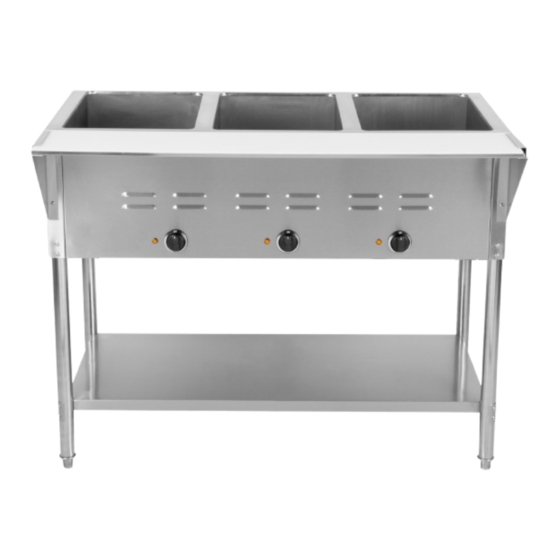

- Page 1 User Manual Electric Open Well Steam Tables 11/2020 Models: 177STE2S, 177STE3S, 177STE4SA, 177STE4SH, 177STE5S Please read and keep these instructions. Indoor use only. www.AvantcoEquipment.com...
- Page 2 User Manual The steam table is designed to be operated dry. If wet operation is required, a spillage pan must be used. Spillage pans are available from the distributor you purchased your Avantco steam table from in stainless steel and aluminum. Please read this manual thoroughly prior to equipment set-up, operation, and maintenance.
- Page 3 User Manual ASSEMBLY INSTRUCTIONS Remove all components from shipping container. Base Assembly Cutting Board Shelf Cutting Board Legs Cutting Board Shelf Undershelf Leg Cutting Board Undershelf Support Brackets Plates Holddown Brackets Short Screws Long Screws www.AvantcoEquipment.com...
- Page 4 User Manual Place the base (A) assembly on floor with well openings down and bottom pan facing up. Install legs (D) into gussets using short screws (I). Make sure the rivet in leg is closer to gusset than to foot end. Align under-shelf (E) gussets with legs and slide under-shelf down legs to desired position using long screws (J) to tighten, using the leg plate (G) beneath the screws to reinforce the shelf.
- Page 5 User Manual Use the short screws (I) to fix the front shelf supports (F) on the base (A). Put the white board (C) onto the stainless steel board (B). Then put these 2 parts on the front shelf supports (F). In the middle of the base (A) front board (above the knob) there is a screw (for 3, 4 and 5 well models only), before assembling you should unscrew it out of the base (A), then screw it in to ensure the front shelf is secured tightly.
- Page 6 User Manual OPERATION The steam table is designed to be operated dry. If wet operation is required, a spillage pan must be used. The unit is intended for holding hot food for short periods of time. A cover is needed on food to maintain temperature while not serving.
- Page 7 Avantco reserves the right to approve or deny the repair or replacement of any part or repair request. The warranty is not transferable. Avantco Equipment installed in/on a food truck or trailer will be limited to a period of 30 days from the original date of purchase.
