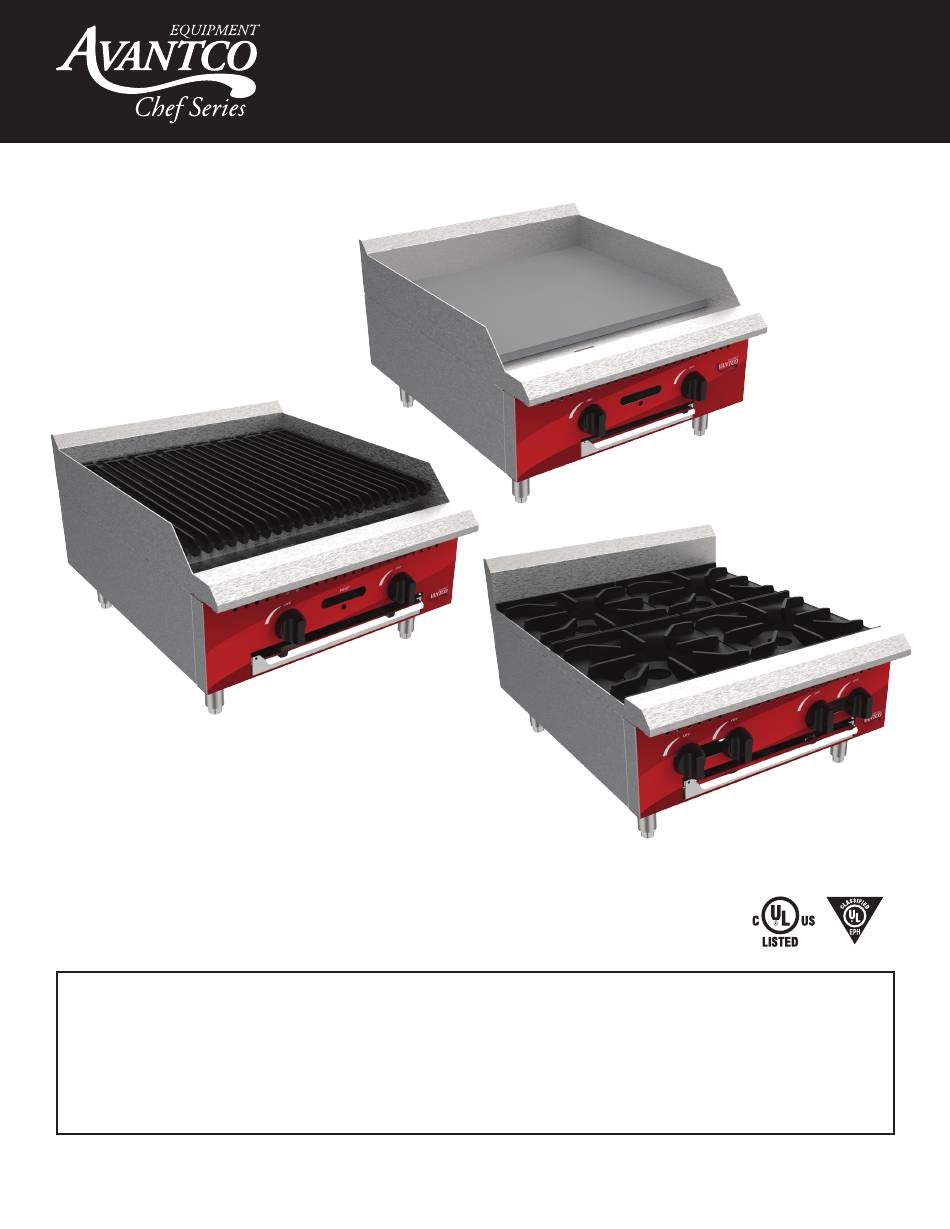

Commercial Countertop
Griddles, Charbroilers, & Ranges
Models: 177CAG15TG, 177CAG24TG, 177CAG36TG, 177CAG48TG,
177CAG60TG, 177CAG15MG, 177CAG24MG, 177CAG36MG,
177CAG48MG, 177CAG60MG, 177CAG24RC, 177CAG36RC,
177CAG48RC, 177CAGR212, 177CAGR424, 177CAGR636
01/2021
Please read and keep these instructions. Indoor use only.
www.AvantcoEquipment.com
User Manual
User Manual
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Avantco Equipment Chef Series
Summary of Contents for Avantco Equipment Chef Series
- Page 1 User Manual User Manual Commercial Countertop Griddles, Charbroilers, & Ranges Models: 177CAG15TG, 177CAG24TG, 177CAG36TG, 177CAG48TG, 177CAG60TG, 177CAG15MG, 177CAG24MG, 177CAG36MG, 177CAG48MG, 177CAG60MG, 177CAG24RC, 177CAG36RC, 177CAG48RC, 177CAGR212, 177CAGR424, 177CAGR636 01/2021 Please read and keep these instructions. Indoor use only. www.AvantcoEquipment.com...
-
Page 2: Table Of Contents
User Manual Index Important Safety Information ....... . . 3 Installation . -
Page 3: Important Safety Information
User Manual IMPORTANT SAFETY INFORMATION Please observe all local and national codes and ordinances. • • Installation must conform with local codes, or in the absence of local codes, the National Fuel Gas Code, ANSI Z223.1 (latest edition). In Canada, installation should conform to installation codes for gas burning appliances and equipment standard CAN/CGA-8149.1 or the propane installation code, CAN/CGA-8149.2, as applicable. - Page 4 User Manual Do not repair or replace any part of the equipment unless specifically recommended in the • manual. • Clean the product daily after use using neutral detergent. Use abrasive materials only for work surface cleaning. Do not use the product to heat the environment. •...
-
Page 5: Installation
User Manual Installation Upon receipt of the equipment, make sure that the product is not defective. For assembly, verify first if the accessory kit has the following items: a gas pressure regulator, an instruction manual, the gas conversion, the gas conversion injectors, and a lighter (wick). Position the product carefully and adjust the foot level. -
Page 6: Rating Plate
User Manual Rating Plate Information on this plate includes the model, serial number, BTU/hour input of the burners, operating gas pressure in inches WC, and whether the appliance is orificed for natural or propane gas. When communicating with factory about a unit or requesting special parts or information, rating plate data is essential for proper identification. -
Page 7: Gas Pressure Regulator
User Manual Gas Pressure Regulator The gas pressure regulator (which accompanies the product) is of utmost importance for its operation and is indispensable. The pressure regulator must be installed in the product supply gas line (failure to install the pressure regulator will void the equipment warranty). Regulators are supplied with 3/4”... -
Page 8: Gas Conversion Instructions
User Manual Gas Conversion Instructions The products are produced for the use of natural gas (NG). Then check if the gas used in your region is compatible with the type of gas for which the product was manufactured. Otherwise, the product must be converted to be used in propane gas (LPG). - Page 9 User Manual 6. In place of the removed gas injectors (4), place the new injectors that are included with the kit shipped with the product. But first apply some pipe sealant to the valve thread and then screw-in the new injectors to the correct gas type.
- Page 10 User Manual COUNTERTOP RADIANT GAS CHARBROILER For conversion the following guidelines should be followed: 1. Close the manual gas valve and disconnect the product from the gas network, making sure that there is no leakage. Then remove the pressure regulator from the gas inlet on the product to make work easier. 2.
- Page 11 User Manual LGP Gas Installation at Low Pressure To use the product with LPG gas at low pressure, it is necessary that the product is checked with the injector for use of LPG gas, if it is not with the appropriate injector, the gas conversion should be performed following the steps described in item 2.5 of this manual.
- Page 12 User Manual First-Time Use Against shock damage or rocking from transportation, the sides and waste tray have a protective PVC film. Remove any plastics, straps, or protective film from the product before operating the equipment. COUNTERTOP GAS GRIDDLE, THERMOSTATIC & MANUAL To protect the equipment against possible moisture damage between fabrication and installation on site, the flat-tops are coated with a layer of vegetable shortening and brown paper.
- Page 13 User Manual COUNTERTOP GAS GRIDDLE, THERMOSTATIC 1. Open the manual gas supply valve (which will release gas into the product). 2. Immerse in alcohol the lighter (wick) that accompanies the product and light it. Note: Make sure that the container where the alcohol is located is away from the product and wick after immersing.
- Page 14 User Manual COUNTERTOP RADIANT GAS CHARBROILER 1. Open the manual gas supply valve (which will release gas into the product). 2. Immerse in alcohol the lighter (wick) that accompanies the product and light it. Note: Make sure that the container where the alcohol is located is away from the product and wick after immersing.
-
Page 15: Cleaning
User Manual Cleaning IMPORTANT Do not use toxic or high chemical cleaning materials. See all instructions given by the cleaning product manufacturer. After using the product and with the equipment not working or hot, clean it to remove food residue. Remove the waste drawer for debris removal and cleaning. -
Page 16: Maintenance
User Manual Maintenance Maintenance is one of the precautions to be taken for a good equipment life. Proper cleaning, installation, checking, and product life all contribute to reduced maintenance. Before any maintenance, verify that the gas connections, regulators, or check valves must be completely closed and disconnected from the product. -
Page 17: Technical Specifications
User Manual Technical Specifications COUNTERTOP GAS GRIDDLE, THERMOSTATIC Exterior Product Dimensions & Weight Shipping Crate Dimensions & Weight MODEL # WIDTH DEPTH HEIGHT WEIGHT WIDTH DEPTH HEIGHT WEIGHT 177CAG15TG 15" ∕ " ∕ " 9" 110 lb. ∕ " ∕ "... - Page 18 User Manual COUNTERTOP RADIANT GAS CHARBROILER Exterior Product Dimensions & Weight Shipping Crate Dimensions & Weight MODEL # WIDTH DEPTH HEIGHT WEIGHT WIDTH DEPTH HEIGHT WEIGHT 177CAG24RC 24" 18" 99 lb. ∕ " ∕ " ∕ " 143 lb. ∕ "...
-
Page 19: Technical Data
User Manual Technical Data COUNTERTOP GAS GRIDDLE, THERMOSTATIC Gas Supply Manifold Pressure MODEL # BURNERS GAS TYPE NOZZLE BTU/HR KCAL/HR TUBE PRESSURE (in. W.C.) NAT. GAS 35,000 8,820 177CAG15TG L.P . GAS 35,000 8,820 NAT. GAS 70,000 17,640 177CAG24TG L.P . GAS 70,000 17,640 NAT. - Page 20 User Manual Technical Data COUNTERTOP RADIANT GAS CHARBROILER Gas Supply Manifold Pressure MODEL # BURNERS GAS TYPE NOZZLE BTU/HR KCAL/HR TUBE PRESSURE (in. W.C.) NAT. GAS 30,000 7,560 177CAG24RC L.P . GAS 30,000 7,560 NAT. GAS 60,000 15,120 177CAG48RC L.P . GAS 60,000 15,120 NAT.
-
Page 21: Parts Diagrams
User Manual PARTS DIAGRAM COUNTERTOP GAS GRIDDLE, THERMOSTATIC www.AvantcoEquipment.com... - Page 22 User Manual PARTS LIST COUNTERTOP GAS GRIDDLE, THERMOSTATIC PART QUANTITY BY MODEL (SIZE) PART # DESCRIPTION 15" 24" 36" 48" 60" 8.09.03.00000400 LEG ASSEMBLY 8.01.53.00002000 GAS VALVE ASSEMBLY 8.01.53.00001900 KNOB ASSEMBLY 8.01.53.00000060 KNOB BEZEL GREASE TRAP 8.01.53.00000045 FRONT PANEL 8.01.53.00002300 GAS DISTRIBUTION TUBE ASSEMBLY 8.20.55.42425362 STAINLESS STEEL FLEX TUBE 3/16"...
- Page 23 User Manual PARTS DIAGRAM COUNTERTOP GAS GRIDDLE, MANUAL www.AvantcoEquipment.com...
- Page 24 User Manual PARTS LIST COUNTERTOP GAS GRIDDLE, MANUAL PART QUANTITY BY MODEL (SIZE) PART # DESCRIPTION 15" 24" 36" 48" 60" 8.01.53.00009500 BURNER ASSEMBLY 8.01.52.00072100 GRIDDLE PLATE ASSEMBLY 8.01.52.00000785 BURNER DEFLECTOR 8.01.53.00000042 GAS TUBE BACK BRACKET 8.01.52.00000786 EXTERNAL BACK PANEL 8.01.52.00000787 INTERNAL BACK PANEL STAINLESS STEEL 4.5 X 10 NT OPEN RPX RIVET...
- Page 25 User Manual PARTS DIAGRAM COUNTERTOP RADIANT GAS CHARBROILER www.AvantcoEquipment.com...
- Page 26 User Manual PARTS LIST COUNTERTOP RADIANT GAS CHARBROILER PART QUANTITY BY MODEL (SIZE) PART # DESCRIPTION 24" 36" 48" 8.01.25.00000105 TOP GRATE 8.01.53.00000063 RADIANT 8.01.53.00004600 EXTERNAL FRAME ASSEMBLY 8.01.53.00000065 SMALL BURNER PROTECTION DEFLECTOR 8.01.53.00000064 LARGE BURNER PROTECTION DEFLECTOR 8.01.52.00000791 SIDE DEFLECTOR 8.01.53.00009500 BURNER ASSEMBLY 8.01.53.00000042...
- Page 27 User Manual PARTS DIAGRAM COUNTERTOP GAS HOT PLATE www.AvantcoEquipment.com...
- Page 28 User Manual PARTS LIST COUNTERTOP GAS HOT PLATE PART QUANTITY BY MODEL (SIZE) PART # DESCRIPTION 12" 24" 36" 8.01.25.00000110 TOP GRATE 8.01.53.00001700 BACK BURNER ASSEMBLY 8.01.53.00001600 FRONT BURNER ASSEMBLY 8.01.53.00001200 TOP FRAME ASSEMBLY STAINLESS STEEL SCREW 4.2 X 13 NT 8.01.53.00000007 BACK BURNER BRACKET STAINLESS STEEL 4.5 X 10 NT OPEN RPX RIVET...
-
Page 29: Warranty
Avantco reserves the right to approve or deny the repair or replacement of any part or repair request. The warranty is not transferable. Avantco Equipment installed in/on a food truck or trailer will be limited to a period of 30 days from the original date of delivery.
