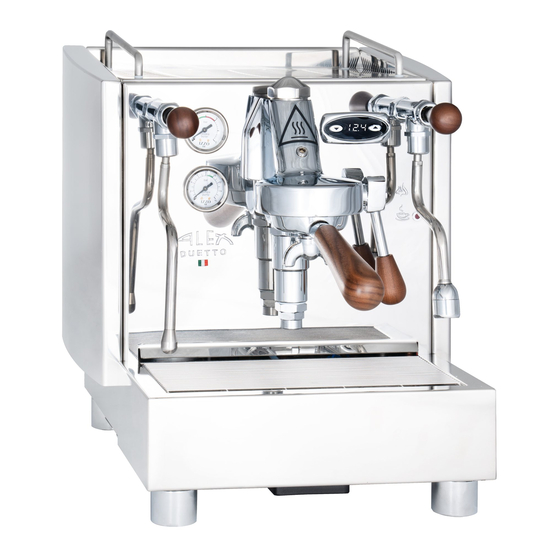

Izzo ALEX DUETTO 4 PLUS Use And Maintenance Manual
  1. Manuals
  2. Brands
  3. Izzo Manuals
  4. Coffee Maker
  5. ALEX DUETTO 4 PLUS
  6. Use and maintenance manual

Izzo ALEX DUETTO 4 PLUS Use And Maintenance Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ALEX DUETTO 4 PLUS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Izzo ALEX DUETTO 4 PLUS

Summary of Contents for Izzo ALEX DUETTO 4 PLUS

  • Page 4: Table Of Contents

    TABLE OF CONTENTS GENERAL WARNINGS .............................3 1. FOLLOW THE INSTRUCTIONS....................4 2. GROUP IZZO SRL CONTACTS ....................5 3. IMPORTANT ADVICE ...........................5 3.1 TRANSPORT ...............................7 3.2 DISPOSAL ..............................7 4. INSTALLATION.............................8 5. GENERAL OPERATION ........................8 5.1 DISPLAY ................................8 5.2 PARAMETER SETTING ........................9 5.3 PARAMETERS .............................9 5.4 PRESET PARAMETERS .........................
  • Page 5 7 WATER INPUT ............................13 7.1 FILLING FROM RESERVOIR ....................13 7.2 FILLING FROM MAINS WATER ..................13 8 ALARMS................................15 8.1 VISUAL ALARMS FROM DISPLAY .................. 15 8.2 ACOUSTIC ALARMS FROM BUZZER UNIT ............15 8.3 BEEP ON-OFF SWITCH ALARM (ONLY FOR VALEXIA MODEL) ......................................

  • Page 6: General Warnings

    GENERAL WARNINGS Carefully read the warnings contained in these instructions, since they provide important information regarding safe installation, use, and maintenance. Keep this booklet carefully for future reference. THIS MACHINE IS DESIGNED FOR DOMESTIC USE, OR SIMILAR, FOR EXAMPLE: - KITCHEN AREAS IN SHOPS, OFFICES AND OTHER WORK ENVIRONMENTS;...

  • Page 7: Follow The Instructions

    KEEP THE MACHINE AND THE ELECTRIC CABLE OUT OF THE REACH OF CHILDREN UNDER THE AGE OF 8. NEVER IMMERSE THE MACHINE, OR PARTS OF IT, IN WATER. IF THE POWER CORD OF THE MACHINE IS DAMAGED, IT MUST BE REPLACED BY A SERVICE CENTRE AUTHORISED BY THE MANUFACTURER, SINCE SPECIAL TOOLS ARE REQUIRED.

  • Page 8: Group Izzo Srl Contacts

    CHILD HAZARD This is used to draw attention to possible risks to children. 2. GROUP IZZO SRL CONTACTS Address: Strada Provinciale 12 Casilina Stazione Sgurgola 28 A - 03012 Anagni (FR) - Italy Tel. +39 0775-774036 Fax. +39 0775.768524 info@gruppoizzo.it...
  • Page 9 If the machine is sold or transferred to a third party, the manual must be given to the new user. For any doubts, or for further information, please contact the dealer. The use of the espresso machine involves compliance with some basic rules.

  • Page 10: Transport

    3.1 TRANSPORT The machine should always be transported in a vertical position; do not turn the machine upside down or lay it on its side. Proceed with caution, and avoid impact and exposure to the elements. When the package is received, make sure that the machine is the one indicated on the accompanying documents, including any accessories.

  • Page 11: Installation

    • anufacturers and importers compl ith their responsibilit environmentally friendly recycling, treatment, and disposal either directly or by participating in a collective system. THE MANUFACTURER, AT ITS OWN DISCRETION, RESERVES THE RIGHT TO MAKE ALL NECESSARY CHANGES TO THE PRODUCTS, DICTATED BY LEGISLATIVE, INDUSTRIAL, COMMERCIAL OR AESTHETIC PURPOSES.

  • Page 12: Parameter Setting

    5.2 PARAMETER SETTING To turn the machine on, press and hold the keys simultaneously. When the display shows F.01, release the keys. The key scrolls the parameters while the key confirms the selected parameter. To quit programming, turn the machine off and on again. Note.

  • Page 13: Preset Parameters

    enables the water and steam channel. Where XX indicates the coffee temperature setpoint Where XX indicates the water and steam temperature setpoint Not used Where X indicates the correction factor of the coffee channel Where X indicates the correction factor of the water and steam channel Not used 5.4 PRESET PARAMETERS...

  • Page 14: Water And Steam Boiler Temperature Range

    5.6 WATER AND STEAM BOILER TEMPERATURE RANGE CELSIUS FAHRENHEIT INFORMATION: When the machine is switched on, it is necessary to wait about 14 249.8 to 15 minutes to reach the 251.6 1.15 operating temperature. 253.4 255.2 T1 = coffee boiler 1.35 T2 = water and steam boiler 258.8...

  • Page 15: Machine Start-Up

    6. MACHINE START-UP 6.1 TURNING ON THE MACHINE Turn on the machine by placing the main switch in position “I” or “ON” (fig. 13, tab. The machine heats the steam boiler and the coffee boiler only after they have been filled. NOTE: The machine is set by default to be used with the reservoir function.

  • Page 16: First Use With Water Mains Connection

    6.3 FIRST USE WITH WATER MAINS CONNECTION Make sure that connection to the mains water has been performed. Turn the tap located under the drip tray (as shown below). Then turn on the machine by placing the main switch in position “I” or “ON” (fig. 13, tab.
  • Page 17 tap to the mains water option remembering to turn on the water tap (fig. 11, tab.1), as shown below. NOTE It is recommended to use filters to reduce the build up of limescale. Make sure that the tap located under the drip tray, (fig. 11, tab. 1) is in the appropriate position.

  • Page 18: Alarms

    ADJUSTING THE PUMP: The pump of the machine is adjusted and set at a value of approximately 10 bar for the model that connects to mains water and between 9-9.5 bar for the model that connects to the reservoir. It is possible to change this value by raising the unit lever, reading the pressure value on the pressure gauge 0-16 bar and adjusting the pump as follows: •...

  • Page 19: Beep On-Off Switch Alarm (Only For Valexia Model)

    to operate the machine, reservoir or mains water, you may come across different sound alerts. MACHINE WITH RESERVOIR FILLING Alarm 1: using the machine with reservoir filling, the buzzer will automatically produce an audible signal if there is no water in the reservoir. MACHINE WITH MAINS WATER OR RESERVOIR FILLING Alarm 2: following continuous activity of the motor for longer than 60 seconds the buzzer will automatically produce an audible signal.

  • Page 20: Dispensing

    9. DISPENSING 9.1 PREPARING ESPRESSO COFFEE Manually lifting the coffee dispenser lever (fig. 8, tab. 1) starts the dispensing stage. Lowering the lever, dispensing is interrupted. For every cup of coffee add 6-8 grams of ground coffee in the filter holder and press it down.

  • Page 21: Switching Off

    start to come out and heat the liquid. When finished, turn the steam knob clockwise to turn off the tap. To achieve a cappuccino with a lot of froth, it is advised to use a tall, narrow container, half-filled with milk. Immerse the steam wand about 2/3 cm into the milk.

  • Page 22: Description Of Components

    For general cleaning procedures use an everyday detergent or a water and vinegar solution. The use of non-aggressive detergents is recommended. Always remember to rinse thoroughly after cleaning. The filter holder and filters must be cleaned by soaking them in a solution of water and baking soda or a specific detergent for coffee machines.
  • Page 23 Water-steam boiler 1.8 lt / 1450 W (230V) - 1200 W (110V) Water boiler 0.8 lt / 1000 W (230V) - 800 W (110V) Boiler/Resistor New stainless steel boilers with emptying system through valve positioned in the lower part of the machine. Access to resistors from lower grills for maintenance.

  • Page 24: Technical Data

    13. TECHNICAL DATA 220 V 110 V 240 V Voltage 50/60 Hz 50/60 Hz 50/60 Hz 1000W (coffee) 800W (coffee) 1000W (coffee) Power 1400W 1200W 1000W (water/steam) (water/steam) (water/steam) Electrical 4.5A (coffee) 7A (coffee) 4.5A (coffee) consumption 6A (water/steam) 11A (water/steam) 4.5A (water/steam) Reservoir 2 litres...
  • Page 25 220 V 110 V 240 V Voltage 50/60 Hz 50/60 Hz 50/60 Hz 1000W (coffee) 800W (coffee) 1000W (coffee) Power 1400W 1200W 1000W (water/steam) (water/steam) (water/steam) Electrical 4.5A (coffee) 7A (coffee) 4.5A (coffee) consumption 6A (water/steam) 11A (water/steam) 4.5A (water/steam) Reservoir 2 litres 2 litres...

  • Page 26: Troubleshooting

    14. TROUBLESHOOTING In the event of a malfunction when using the machine, before contacting a service centre, carefully read the following points. PROBLEMS SOLUTIONS Make sure that the plug is correctly inserted The machine does not work when into the socket and that the main switch is in turned on the ON position Make sure there is water in the reservoir or, if...

  • Page 27: Warranty Terms And Conditions

    15. WARRANTY TERMS AND CONDITIONS This coffee machine is guaranteed for 12 months by the manufacturer from the date of purchase, accompanied by a document valid for tax purposes issued by the authorised dealer showing the date on which the product was sold.
