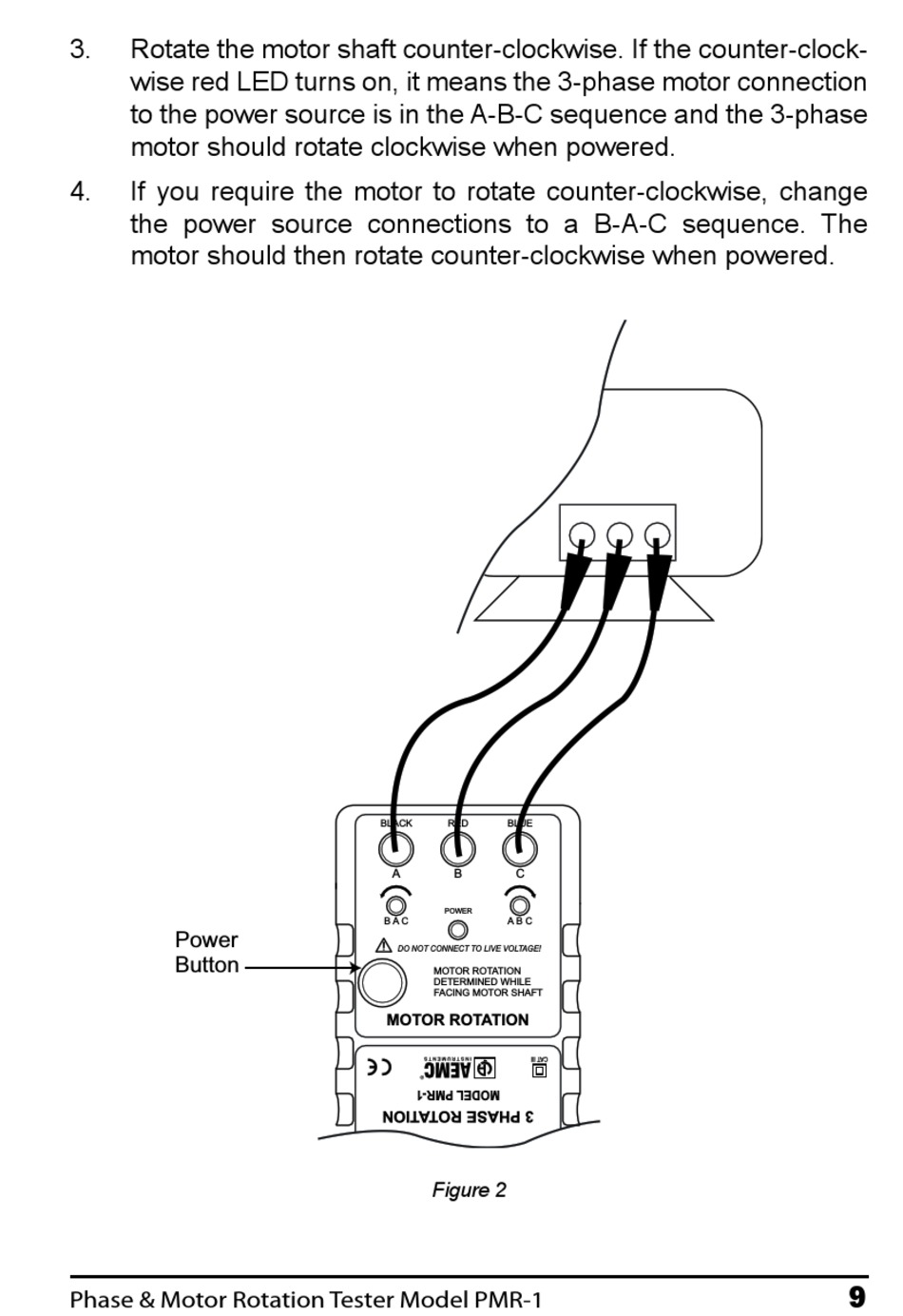

Rotate the motor shaft counter-clockwise. If the counter-clock-

wise red LED turns on, it means the 3-phase motor connection

to the power source is in the A-B-C sequence and the 3-phase

motor should rotate clockwise when powered.

If you require the motor to rotate counter-clockwise, change

the power source connections to a B-A-C sequence. The

motor should then rotate counter-clockwise when powered.

��

Phase & Motor Rotation Tester Model PMR-1

��

�

��

Figure 2
