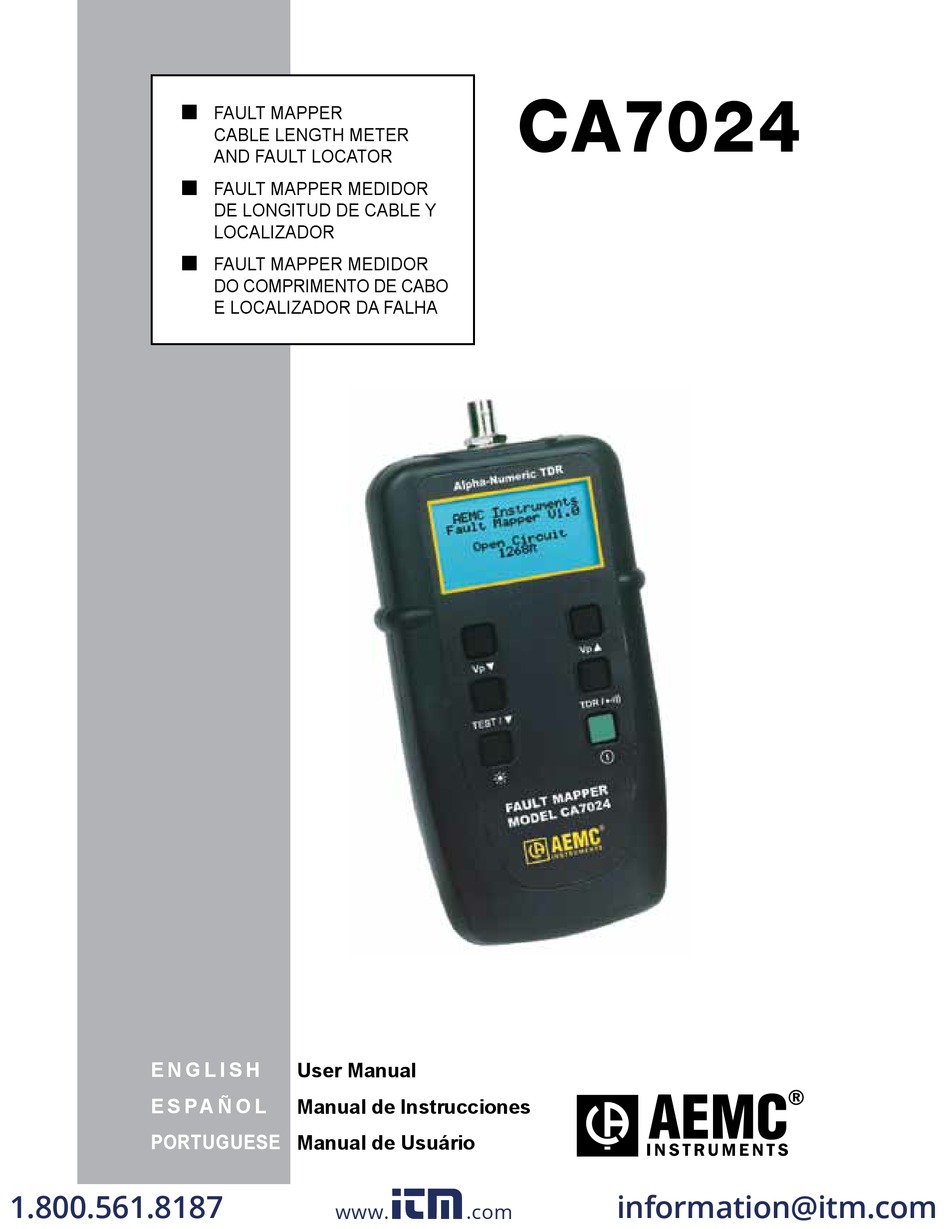

- Page 1 CA7024 FAULT MAPPER CABLE LENGTH METER AND FAULT LOCATOR FAULT MAPPER MEDIDOR DE LONGITUD DE CABLE Y LOCALIZADOR FAULT MAPPER MEDIDOR DO COMPRIMENTO DE CABO E LOCALIZADOR DA FALHA E N G L I S H User Manual E S PA Ñ...
- Page 2 For recalibration, please use our calibration services. Refer to our repair and calibration section at www.aemc.com. Serial #: ________________________________ Catalog #: 2127.80 Model #: CA7024 Please fill in the appropriate date as indicated: Date Received: _________________________________ _______________________ Date Calibration Due: ®...
-
Page 3: Table Of Contents
4.12 Measuring Cable Length or Fault Distance ......16 5. MAINTENANCE ................17 5.1 Changing the Battery ..............17 5.2 Cleaning ..................17 5.3 Storage ...................17 Repair and Calibration ................18 Technical and Sales Assistance ............18 Limited Warranty ...................19 Warranty Repairs ...................19 Fault Mapper Model CA7024 1.800.561.8187 information@itm.com www. .com... -
Page 4: Introduction
In this manual, the symbol preceding instructions indicates that if the instructions are not followed, bodily injury, installation/sample and product damage may result. Risk of electric shock. The voltage at the parts marked with this symbol may be dangerous. Fault Mapper Model CA7024 1.800.561.8187 information@itm.com www. .com... -
Page 5: Receiving Your Shipment
Save the damaged packing container to substantiate your claim. Ordering Information Fault Mapper Model CA7024..........Cat. #2127.80 Includes meter, carrying case, BNC pigtail with alligator clips, 4 x 1.5V AA batteries, user manual and product warranty card. 1.3.1 Accessories and Replacement Parts Tone Receiver / Cable Tracer Model TR03 ...... -
Page 6: Product Features
Emits an audible tone used to trace a cable and identify the type of fault Displays “Voltage Detected” and warning sound when >10V is present on the tested sample Fault Mapper Model CA7024 1.800.561.8187 information@itm.com www. .com... -
Page 7: Fault Mapper Features
2. Alpha-Numeric LCD 3. Vp (Velocity of Propagation) decrement button 4. Test/function select button 5. Backlight button 6. Vp (Velocity of Propagation) increment button 7. Mode select button (TDR or Tone Tracer) 8. Power ON/OFF button Fault Mapper Model CA7024 1.800.561.8187 information@itm.com www. .com... -
Page 8: Specifications
*Measurement accuracy of ±2% assumes the instrument setting for velocity of propagation (Vp) of the cable under test to be accurately set, and homogeneity of the velocity of propagation (Vp) along the cable length. Specifications are subject to change without notice. Fault Mapper Model CA7024 1.800.561.8187 information@itm.com www. -
Page 9: Operation
Vp along the cable length. If the Vp is set incorrectly by the operator, or the Vp varies along the length of the cable, then additional errors will be incurred and the measurement accuracy will be affected. See § 4.9 for setting the Vp. NOTE: The Vp is less well defined with unshielded multi-conductor cable, including power cable, and is lower when a cable is tightly wound on a drum than when it is installed in a linear fashion. Fault Mapper Model CA7024 1.800.561.8187 information@itm.com www. .com... -
Page 10: Getting Started
Press the button again to save changes and exit set-up mode. TDR / NOTE: When the Fault Mapper is turned off, it will remember the current set-up parameters. This feature is useful in the situation where the operator is performing many tests on the same type of cable. Fault Mapper Model CA7024 1.800.561.8187 information@itm.com www. .com... -
Page 11: Programming A Custom Library Location
Once the desired character is selected, press the TEST / button to enter the Edit Character mode. Next, press the button to change the character at the selec- tion point. Fault Mapper Model CA7024 1.800.561.8187 information@itm.com www. .com... -
Page 12: Backlight
TDR / Backlight The display backlight is switched on and off with the button. Tone Generator The Fault Mapper may also be used as a tone generator, to trace and identify cables and wires. The user will need a cable tone tracer, such as the AEMC Tone Receiver/Cable Tracer Model TR03 (Cat. #2127.76) or equivalent. Fault Mapper Model CA7024 1.800.561.8187 information@itm.com www. .com... -
Page 13: Voltage Safety Warning (Live Sample)
* * * * * * * * * * * * * * * * * * * ! ! ! ! Voltage Detected ! ! ! ! * * * * * * * * * * * * * * * * * * * Fault Mapper Model CA7024 1.800.561.8187 information@itm.com www. .com... -
Page 14: Determining And Measuring Vp Values
3. Connect one end of the cable to the Fault Mapper (see § 4.11). Leave the end unterminated and make sure the wires do not short to each other. 4. Measure the length and adjust the Vp until the exact length is displayed. 5. When the exact length is displayed, Vp is established. Fault Mapper Model CA7024 1.800.561.8187 information@itm.com www. .com... -
Page 15: Selecting A Library Cable Or Setting Vp
Ethernet 9907 General 22/2 IBM Type 3 IBM Type 9 Main SWA Multicore PVC RG6/U RG58 (8219) RG58 C/U RG59 B/U RG62 A/U Romex 14/2 Stabiloy XHHW-2 Telco Cable T&E BS6004 Twinax URM70 URM76 Fault Mapper Model CA7024 1.800.561.8187 information@itm.com www. .com... - Page 16 Vp will be displayed with a value, which can be selected from 1 to 99%. If the Vp value is not known, see § 4.9. AEMC Instruments Fault Mapper V3.1B Vp=95% NOTE: When the Fault Mapper is turned off, it will remember the last selected Cable Library or Vp setting. This feature is useful in the situation where the operator is performing many tests on the same type of cable. Fault Mapper Model CA7024 1.800.561.8187 information@itm.com www. .com...
-
Page 17: Attaching A Cable To The Fault Mapper
Shielded Cable: Connect the Black clip to a wire adjacent to the shield and the Red clip to the shield. Twisted Pair: Separate out one pair and connect the red and black clips to the two wires of the pair. Multi-conductor Cable: Connect the clips to any two wires. Coaxial Cable Shielded Cable Twisted Pair Multi-conductor Cable Fault Mapper Model CA7024 1.800.561.8187 information@itm.com www. .com... -
Page 18: Measuring Cable Length Or Fault Distance
Fault Mapper V3.1B Open Circuit 632ft If there is a short at the end of the cable or at some point along the cable, then the display will show the distance to the short. AEMC Instruments Fault Mapper V3.1B Short Circuit 87.2ft Fault Mapper Model CA7024 1.800.561.8187 information@itm.com www. .com... -
Page 19: Maintenance
Rinse with a damp cloth and then dry with a dry cloth. • Do not splash water directly on the instrument. • Do not use alcohol, solvents or hydrocarbons. Storage If the instrument is not used for a period of more than 60 days, it is recom- mended to remove the batteries and store them separately. Fault Mapper Model CA7024 1.800.561.8187 information@itm.com www. .com... -
Page 20: Repair And Calibration
, Inc. d.b.a. AEMC Instruments 200 Foxborough Boulevard Foxborough, MA 02035 USA Phone: (800) 343-1391 (508) 698-2115 Fax: (508) 698-2118 E-mail: techsupport@aemc.com www.aemc.com NOTE: Do not ship Instruments to our Foxborough, MA address. Fault Mapper Model CA7024 1.800.561.8187 information@itm.com www. .com... -
Page 21: Limited Warranty
® Instruments 15 Faraday Drive • Dover, NH 03820 USA Phone: (800) 945-2362 (Ext. 360) (603) 749-6434 (Ext. 360) Fax: (603) 742-2346 or (603) 749-6309 Caution: To protect yourself against in-transit loss, we recommend you insure your returned material. NOTE: You must obtain a CSA# before returning any instrument. Fault Mapper Model CA7024 1.800.561.8187 information@itm.com www. .com... - Page 22 4.12 Midiendo la Longitud de Cable o la Distancia del Fallo ..35 5. MANTENIMIENTO ................. 36 5.1 Reemplazo de Baterías ............36 5.2 Limpieza .................36 5.3 Almacenaje ................36 Reparación y Calibración ..............37 Asistencia técnica y venta ..............37 Garantía Limitada ..................38 Garantía de Reparación ................38 Fault Mapper Modelo CA7024 1.800.561.8187 information@itm.com www. .com...
