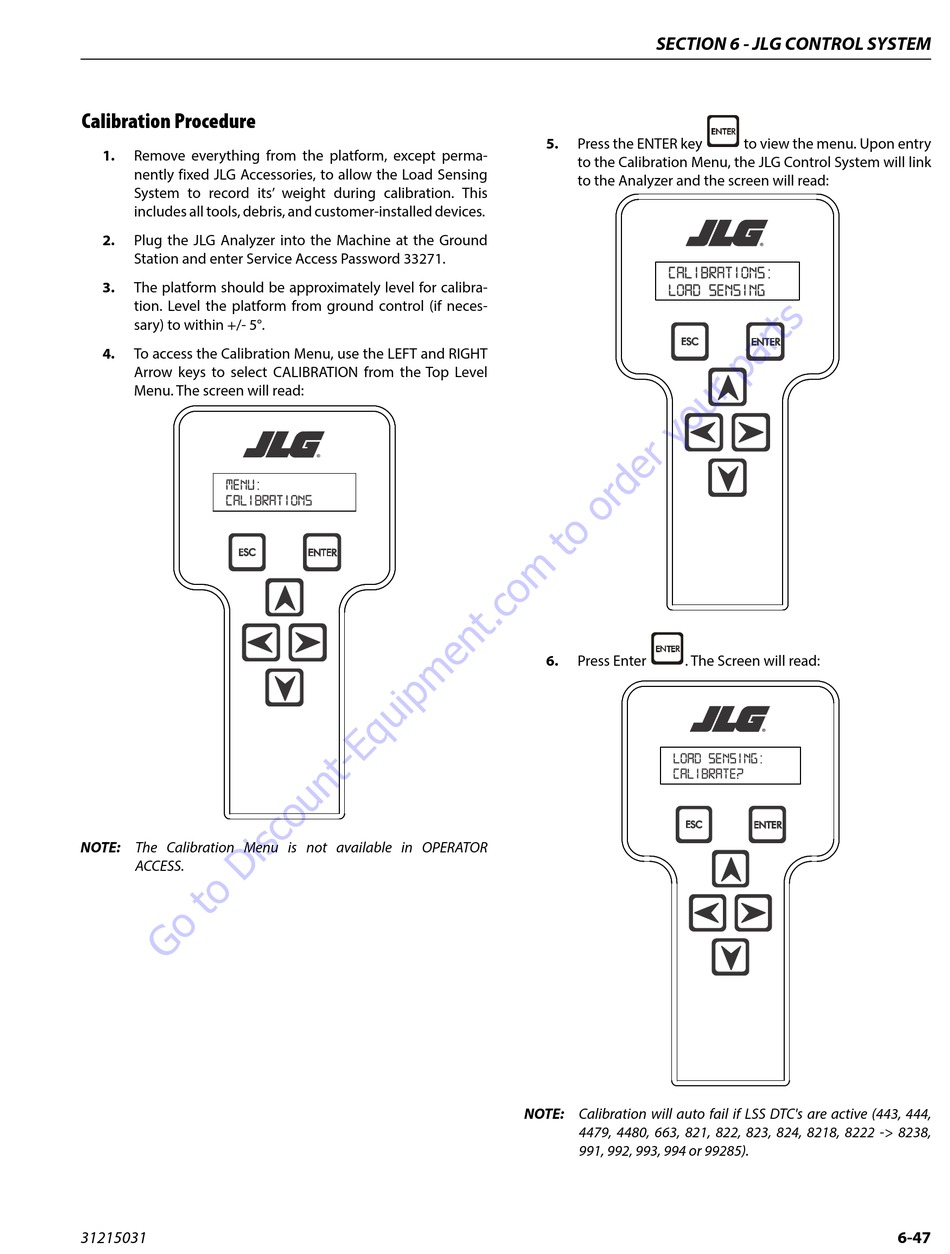

Calibration Procedure

1. Remove everything from the platform, except perma-
nently fixed JLG Accessories, to allow the Load Sensing
System to record its' weight during calibration. This
includes all tools, debris, and customer-installed devices.
2. Plug the JLG Analyzer into the Machine at the Ground
Station and enter Service Access Password 33271.
3. The platform should be approximately level for calibra-
tion. Level the platform from ground control (if neces-
sary) to within +/- 5°.
4. To access the Calibration Menu, use the LEFT and RIGHT
Arrow keys to select CALIBRATION from the Top Level
Menu. The screen will read:
NOTE: The Calibration Menu is not available in OPERATOR
ACCESS.
31215031
SECTION 6 - JLG CONTROL SYSTEM
5. Press the ENTER key
to the Calibration Menu, the JLG Control System will link
to the Analyzer and the screen will read:
6. Press Enter . The Screen will read:
NOTE: Calibration will auto fail if LSS DTC's are active (443, 444,
4479, 4480, 663, 821, 822, 823, 824, 8218, 8222 -> 8238,
991, 992, 993, 994 or 99285).
to view the menu. Upon entry

6-47
