Homewerks SmartVent 7146-80-MS Instructions Manual page 10

EXISTING CONSTRUCTION INSTALLATION INSTRUCTIONS (continued)

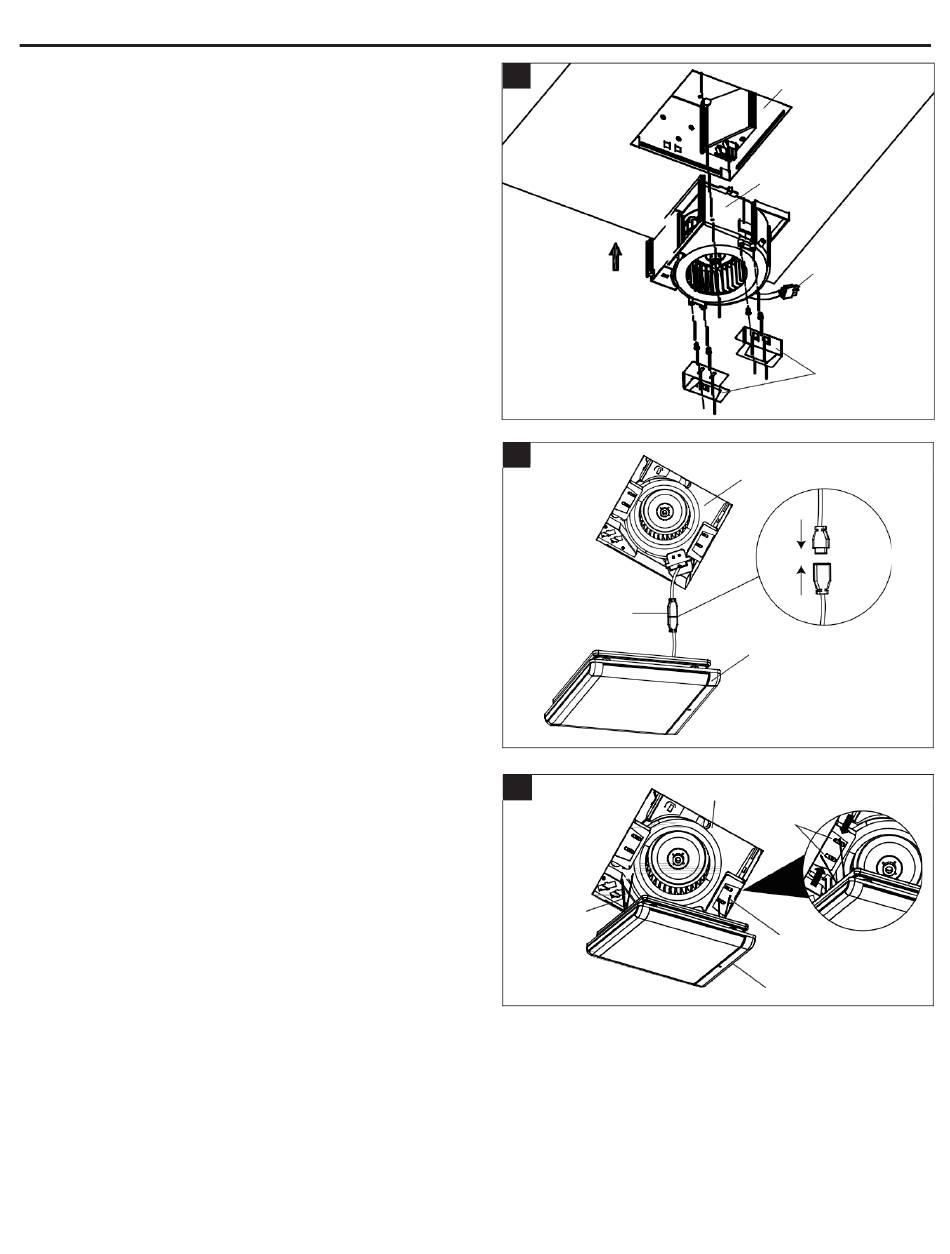

9. Plug the three prong plug on the fan motor back into the fan
housing (A). Place the fan motor back into the fan housing (A),
aligning the duct with the duct opening in the fan housing (A).
Replace the grille mounting brackets and secure with the
screws removed earlier.
10. Join the connectors from the fan housing (A) and the grille (B).
The grille (B) must be connected BEFORE turning on power
to the fan.
11. Attach grille (B) by pinching the mounting springs and inserting
them into the narrow rectangular slots in the fan housing (A).
Turn on power source. Test the unit.
9
10
Connectors
11
Mounting
spring
10
A
Motor
Fan plug
Mounting
brackets
A
B
A
Housing
slots
Mounting
spring
B
HomewerksWW.com
