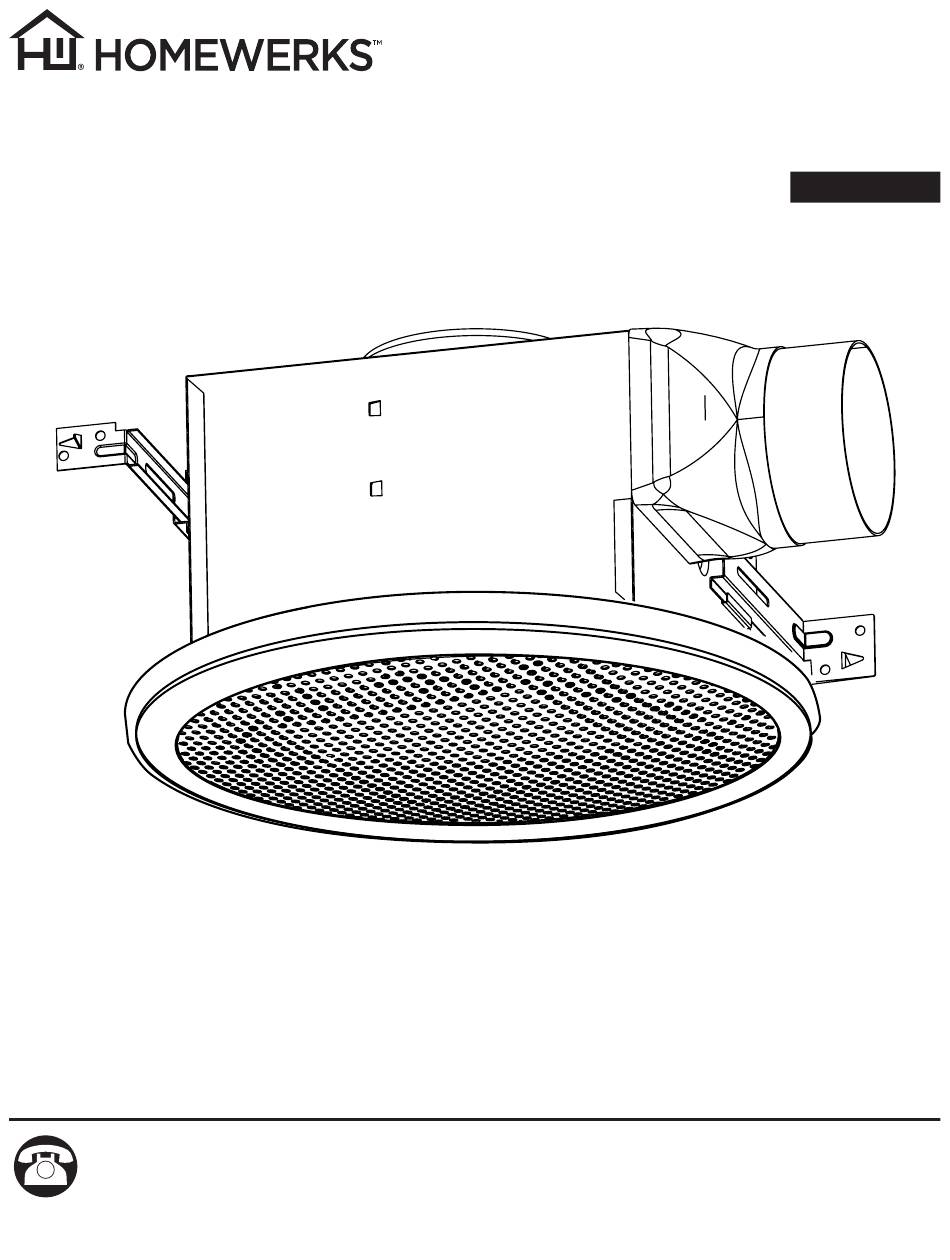

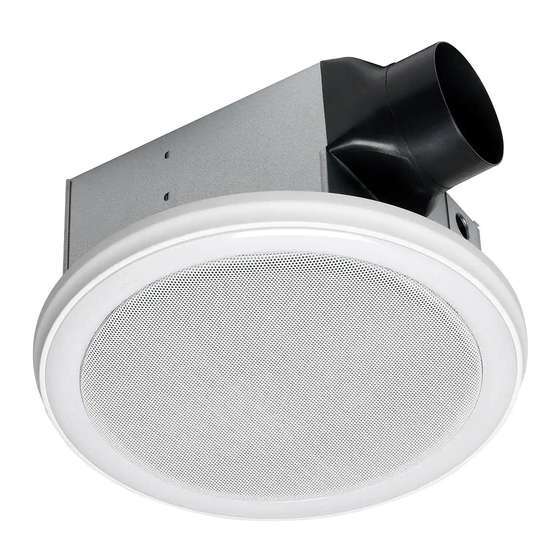

BATH FAN WITH BLUETOOTH
READ AND SAVE THESE INSTRUCTIONS
SPEAKERS, LED LIGHT,
AND NIGHT LIGHT
®
MODEL 7130-16-BT
Español p. 13
8-2021
Advertisement
Chapters
Table of Contents
Related Manuals for Homewerks 7130-16-BT
Summary of Contents for Homewerks 7130-16-BT
- Page 1 BLUETOOTH SIG, Inc. and any use of the said mark by Homewerks Worldwide is under license. Other trademark and trade names are those of their respective owners. Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-877-319-3757, 7:30 a.m.
-
Page 2: Table Of Contents
Homewerks.com... -
Page 3: Package Contents
Grille with BLUETOOTH Wall Switch ® Speakers and LED Light Suspension Bracket Suspension Bracket HARDWARE INCLUDED (not actual size) Wood Screw Machine Screw Machine Screw M4 x 30 M4 x 12 M4 x 10 Qty. 8 Qty. 2 Qty. 1 Homewerks.com... -
Page 4: Safety Information
Contact customer service for replacement parts at 1-877-319-3757, 7:30 a.m. - 4:30 p.m., CST, Monday - Friday. Tools Required for Assembly (not included): Hammer, Flathead Screwdriver, Wire Connectors, Nails, Duct Tape, Phillips Head Screwdriver, and Utility Knife or Drywall Saw. Helpful Tools (not included): Electric Drill, Drill Bits Homewerks.com... - Page 5 NOTE: This switch is intended to only operate independently with this bath Switch Power/black fan. Connections to other electrical Switch/red connection/black fixtures is prohibited and could cause electrical issues. AC120V/60Hz If you require assistance, please call 1-877-319-3757 before attempting Fan neutral/white switch installation. House neutral/white Homewerks.com...
-
Page 6: Installation Instructions
4. Insert suspension bracket (C) into the tabs on the duct side of the fan housing (A). Insert suspension bracket (D) into the tabs on the opposite side of the fan housing (A) and then slide suspension bracket (E) into suspension bracket (D). Homewerks.com... - Page 7 If you require assistance, please call 1-877-319-3757 before attempting switch installation. CAUTION: This switch is intended to only operate with this bath Quick connector fan. Connections to other electrical fixtures are prohibited and could cause electrical issues. Homewerks.com...
- Page 8 BEFORE turning on power to the fan. Black connectors Gray connectors 11. Attach grille (B) by pinching the mounting springs and inserting them into narrow rectangular slots in the fan Mounting springs housing (A). Housing slots Turn on power source. Test the unit. Homewerks.com...
-
Page 9: Pairing Light Switch With Fan
This prevents your device from sending your data to the wrong BLUETOOTH accessory. ® 5. Choose the Homewerks speaker, and then enter a passkey or PIN (0000) if prompted. ™ 6. When pairing is complete, use the BLUETOOTH speaker to play audio from your device. - Page 10 Repeat the same step for the small black connectors. The grille (B) must be connected BEFORE turning on power to the fan. Mounting springs Black connectors Gray connectors Homewerks.com...
-
Page 11: Troubleshooting
Neutral wire connection from the switch to the fan is wire. The switch included with this ventilation fan not engaging. requires a dedicated neutral wire connection. If a neutral line is not present, one must be run by a qualified electrician. Homewerks.com... -
Page 12: Warranty
SHALL VOID THIS WARRANTY. Shipping costs for return product as part of a claim on the warranty must be paid for by the customer. Inquiries regarding warranty claims can be directed to 1-877-319-3757, 7:30 a.m. - 4:30 p.m., CST, Monday - Friday. Homewerks.com... - Page 13 Bluetooth SIG, Inc., y cualquier uso de estas marcas por parte de ® Homewerks Worldwide se efectúa bajo licencia. Otras marcas y nombres comerciales son los de sus respectivos dueños. ¿Tiene preguntas, problemas, o faltan piezas? Antes de regresar a la tienda, llame al Servicio al Cliente, 1-877-319-3757, de lunes a viernes de 7:30 a.m.
-
Page 14: Especificaciones Del Producto
Si este equipo produce interferencia dañina a la recepción de radio o televisión, lo que puede determinarse encendiendo y apagando el equipo, se insta al usuario a intentar corregir la interferencia mediante uno de los siguientes métodos: Homewerks.com... -
Page 15: Contenido Del Paquete
® Soporte de suspensión Soporte de suspensión MATERIALES INCLUIDOS (no se ilustran en tamaño real) Tornillo para Tornillo para Tornillo para madera metales metales M4 x 30mm M4 x 12mm M4 x 10mm Cantidad 8 Cantidad 2 Cantidad 1 Homewerks.com... -
Page 16: Información Sobre Seguridad
Si hace falta alguna pieza o se encuentra danada, no intente ensamblar el producto. Pongase en contacto con el Servicio al Cliente para piezas de repuesto 1-877-319-3757, de 7:30 a. m. a 4:30 p. m., hora central estándar, de lunes a viernes. Homewerks.com... - Page 17 Conector, ventilador de baño. Las conexines Interruptor /rojo Potencia/negro interruptor/negro a otros accesorios eléctricos están prohibidas y podrían causar AC120V/60Hz problemas eléctricos. Si necesita ayuda, por favor llame al 1-877-319-3757 antes de Vivienda neutro/blanco intentar instalar el interruptor. Homewerks.com...
-
Page 18: Instrucciones De Installación
(A). Inserte el soporte de suspensión (D) en las pestañas en el lado opuesto de la car- casa del ventilador (A) y luego deslice el soporte de suspensión (E) en el soporte de suspensión (D). Homewerks.com... - Page 19 1-877-319-3757 antes de intentar instalar el interruptor. Conector rapido PRECAUCIÓN: este interruptor está diseñado para funcionar solo con este ventilador de baño. Las conexiones a otros accesorios eléc- tricos están prohibidas y podrían causar problemas eléctricos. Homewerks.com...
- Page 20 Conectores grises 11. Coloque la rejilla pellizcando resortes de montaje y se Resortas de insertan en ranuras rectangulares estrechas en la carcasa montaje del ventilador (A). Ranuras en la caja Encienda la fuente de energía. Pruebe el ventilador. Homewerks.com...
-
Page 21: Emparejar El Interruptor De La Luz Con El Ventilador
BLUETOOTH incorrecto. ® 5. Elija el altavoz Homewerks y luego ingrese una contraseña o NIP (0000) si se le solicita. ™ 6. Cuando se complete el emparejamiento, puede usar el altavoz BLUETOOTH para reproducir audio con su ®... - Page 22 Resortas de Conectores montaje negros Conectores grises 2. Use una aspiradora para eliminar el polvo y la suciedad de la carcasa del ventilador (A). 3. Limpie la carcasa del ventilador (A) con un paño húmedo y seque con un paño. Homewerks.com...
-
Page 23: Solución De Problemas
15 minutos despues de terminar con su ducha, entonces el ventilador esta funcionando adecuadamente. El dispositivo Bluetooth no se Asegúrese de que la señal BLUETOOTH esté desactivada ® Otro dispositivo ya está emparejado. empareja con el ventilador. en otros dispositivos. Homewerks.com... -
Page 24: Garantía
Los costos de envío para el producto devuelto como parte de una reclamación de la garantía deben ser pagados por el cliente. Las consultas sobre reclamaciones de garantía pueden dirigirse al 1-877-319-3757, de 7:30 a.m. a 4:30 p.m., CST, de lunes a viernes. Homewerks.com...
