Summary of Contents for Safe Fleet FleetMind SSV9

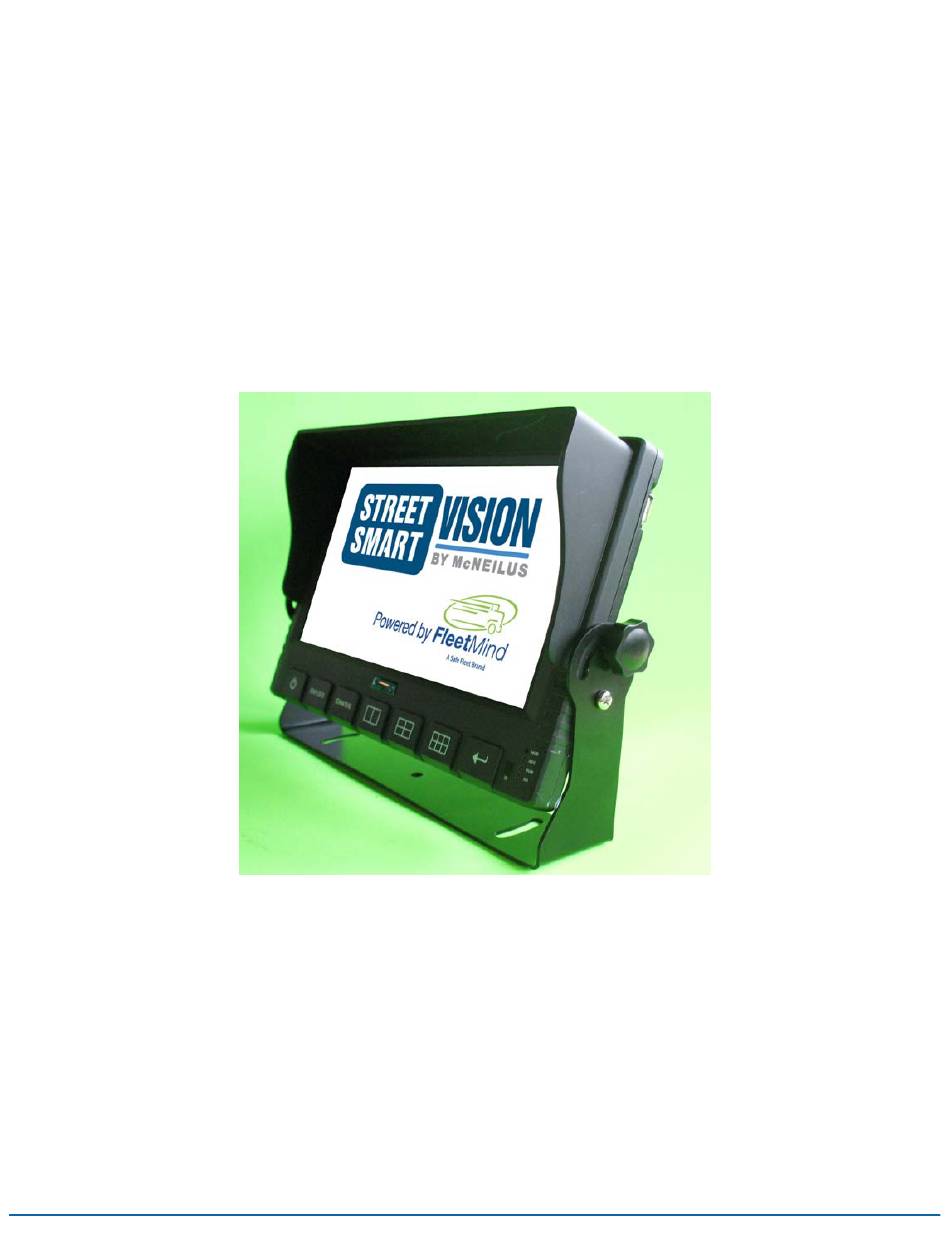

- Page 1 FleetMind SSV9 DVR Monitor Installation and Setup Guide © Safe Fleet | September 2019 | All rights reserved...
-
Page 2: Table Of Contents
Setting Video Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 © Safe Fleet | September 2019 | All rights reserved... - Page 3 Product information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46 © Safe Fleet | September 2019 | All rights reserved...
-
Page 4: Introduction
198.72(H) × 111.78(V) mm Power supply DC9-36V / Automatic Power On/Off by ACC Operating temp. (-20°C ~ +75°C ) Storage temp. (-30°C ~ +85°C ) Weight 600g Trigger External Dimensions L236.5XW 182XD35.9 © Safe Fleet | September 2019 | All rights reserved... - Page 5 1SSD 2 SDXC High speed card (up to 256GB) SD card 1 USB 2.0 (support U disk/mouse/download) USB interface 1 ACC signal Ignition input 1 LVTTL Level UART Disk lock © Safe Fleet | September 2019 | All rights reserved...
-
Page 6: Kit Contents
Cycles through Camera Channels “1 and 2”, “3 and 4”, “5 and 6”, “3 and 2”, “4 and 2” 4-SPLIT SCREEN Cycles through Camera Channels “1,2,3 and 4”, “3,4,5 and 6” 6-SPLIT SCREEN Displays all six camera channels © Safe Fleet | September 2019 | All rights reserved... -
Page 7: Back Panel
SSV9 Installation and Setup Guide Kit Contents Back Panel Showing GPS connector, lock, SD compartment open. SD Compartment © Safe Fleet | September 2019 | All rights reserved... -
Page 8: Right Side - Usb Port
SSV9 Installation and Setup Guide Kit Contents Right Side - USB Port Bottom Panel Connectors © Safe Fleet | September 2019 | All rights reserved... -
Page 9: Camera Connection Cable
SSV9 Installation and Setup Guide Kit Contents Camera Connection Cable Power and Trigger Cable See the table on the following page for description of trigger functions. © Safe Fleet | September 2019 | All rights reserved... - Page 10 Channel 4 camera on right 5 second delay when trigger off. When trigger is activated: Display Channel 5 camera, no delay when trigger off. When trigger is activated: Display Channel 6 camera, no delay when trigger off. © Safe Fleet | September 2019 | All rights reserved...
-
Page 11: Making Connections
NOTE: Camera channels Channels 2, 3, and 4 are special purpose cameras. To ensure full functionality, assign these channels appropriately, as defined in the legend in the table on the following page. © Safe Fleet | September 2019 | All rights reserved... -
Page 12: Trigger Connections
12V). Other names for the battery disconnect are night switch and kill switch. CAUTION: Do not connect to ignition! Power should NOT be connected to the vehicle’s ignition key switch. © Safe Fleet | September 2019 | All rights reserved... -
Page 13: Recommended Camera Locations And Settings
The configurations presented here are “minimal” configurations, i.e., not all 6 cameras need be used in each scenario. You can use as many cameras as you deem appropriate for your particular application. Residential Front-Load (Curotto-Can) Commercial Front-Load © Safe Fleet | September 2019 | All rights reserved... -
Page 14: Roll-Off And Rear-Load
SSV9 Installation and Setup Guide Recommended Camera Locations and Settings Roll-off and Rear-Load Residential Side-Load © Safe Fleet | September 2019 | All rights reserved... -
Page 15: System Configuration
In order to set up system configuration parameters, you must use the system menus. 1 . Touch and hold the lower area of the screen to display the control panel. © Safe Fleet | September 2019 | All rights reserved... - Page 16 3 . Use the Admin user name and, if required, enter the password. For first-time access, the default password “456789” is defined. You can change the password later using the User Accounts menu . The Main Menu displays. © Safe Fleet | September 2019 | All rights reserved...
-
Page 17: Setting Date/Time And Operating Language
1 . Select System Settings . The System Settings menu displays. 2 . Select General Settings . The General Settings menu enables you to set date and time parameters and choose an operating language. © Safe Fleet | September 2019 | All rights reserved... - Page 18 For example: USA Eastern time is either UTC -5 or UTC -4, depending whether DST is in effect. 4 . Choose a date format. 5 . Select a time format. 6 . Select a language. 7 . To save your changes, press the Save button. © Safe Fleet | September 2019 | All rights reserved...
-
Page 19: Setting Video Parameters
The Video Settings menu enables you to specify video properties for each of the six channels, which are selectable from the channel pull-down menu. After you select a channel from the menu, you can apply properties for that channel as described in the following steps . © Safe Fleet | September 2019 | All rights reserved... - Page 20 5 . Select video encoding quality. 6 . Select the frame rate—number of frames per second (fps). Generally, the higher the FPS, the smoother the motion appears. 7 . Set the bit stream rate. © Safe Fleet | September 2019 | All rights reserved...
- Page 21 To copy your settings from one channel to one or more of the other ones: 1 . Press the Copy button. A dialog displays prompting you for target channel(s). 2 . Select your target channels, and then press Ok . © Safe Fleet | September 2019 | All rights reserved...
-
Page 22: Specifying Record Settings
2 . With loop recording, the video files are stored on the memory card, with the newest video continuously replacing the oldest video. Select Yes or No from the loop recording pull-down menu. © Safe Fleet | September 2019 | All rights reserved... - Page 23 The recording plan defines a schedule for manual mode recording. Use the day-of-the-week menu below in conjunction with the hourly schedule menus to define up to 4 different schedules per day. © Safe Fleet | September 2019 | All rights reserved...
-
Page 24: Specifying Alarm Settings
A dialog displays prompting you for target channel(s). 2 . Select your target channels, and then press Ok . Specifying Alarm Settings 1 . From the System Settings menu, select Alarm Setting . © Safe Fleet | September 2019 | All rights reserved... - Page 25 6 . Periods of time . 7 . Alarm output. Both options can be selected. I/O output can be used, for example, to send a signal to an additional device such as a beeper. © Safe Fleet | September 2019 | All rights reserved...
-
Page 26: Specifying Camera Settings
A dialog displays prompting you for target channel(s). 2 . Select your target channels, and then press Ok . Specifying Camera Settings 1 . From the System Settings menu, select Camera Settings . © Safe Fleet | September 2019 | All rights reserved... - Page 27 . Then choose the amount of time (0 to 5 seconds) that you want the off delay to be activate and allow the camera image to be displayed on the monitor during the turn signal cycle. © Safe Fleet | September 2019 | All rights reserved...
-
Page 28: Specifying Motion Detection Settings
A dialog displays prompting you for target channel(s). 2 . Select your target channels, and then press Ok . Specifying Motion Detection Settings 1 . From the System Settings menu, select Motion Detection . © Safe Fleet | September 2019 | All rights reserved... - Page 29 3 . Select the alarm delay (in seconds) by pressing in the field and using the numeric keypad. Press Enter when done . Alarm delay is the length of time the alarm channel displays in full-screen mode and with a recorder. © Safe Fleet | September 2019 | All rights reserved...
- Page 30 7 . Select periods of time. 8 . Select the alarm output. As with alarms, both options can be selected. I/O output displays a yellow “motion” icon on the screen. © Safe Fleet | September 2019 | All rights reserved...
-
Page 31: Specifying Monitor Display Settings
A dialog displays prompting you for target channel(s). 2 . Select your target channels, and then press Ok . Specifying Monitor Display Settings 1 . From the System Settings menu, select Monitor Display. © Safe Fleet | September 2019 | All rights reserved... -
Page 32: Specifying Vehicle Information
Specifying vehicle and driver information is useful for data collection and analysis, for record keeping, and for identifying the vehicle on the map display of the MDVR player. 1 . From the Main Menu, select Vehicle Settings . © Safe Fleet | September 2019 | All rights reserved... - Page 33 3 . Enter all information in the text fields. This information is made available to the MDVR player software for viewing in the status window during playback. 4 . Select Save when done . © Safe Fleet | September 2019 | All rights reserved...
-
Page 34: Specifying G-Sensor Settings
3 . Make your choices from the menus, and then press Save . © Safe Fleet | September 2019 | All rights reserved... -
Page 35: User Management
You perform user management for SSV9 using the User Accounts menu. 1 . From the Main Menu, select Advanced Options . 2 . From the Advanced Options menu, select User Account . The Username dialog displays. © Safe Fleet | September 2019 | All rights reserved... - Page 36 The SSV9 is configured before shipping with the default password 456789. 5 . To modify access privileges (for Default account only), select Modify Access . 6 . Make your required changes, and then select Ok . © Safe Fleet | September 2019 | All rights reserved...
-
Page 37: System Information, Disk And File Management
The System Info menu gives you read-only access to system information for the SSV9. • From the Main Menu, select System Info . Select Memory Info or Version Info to review this information. Memory Info Version Info © Safe Fleet | September 2019 | All rights reserved... -
Page 38: File Backup
1 . Select a partition from the upper panel, and then press Add. A search window is displayed in full-screen mode. 2 . Select a date range, channel(s), and type(s) of records to search, and then press Search. Results are displayed in the lower panel. © Safe Fleet | September 2019 | All rights reserved... -
Page 39: Restore Default
Use the check boxes to make your selection(s), and then press OK . Format CAUTION: Prevent data loss Formatting will erase the entire contents of your SD card(s). Exercise caution when using this option! © Safe Fleet | September 2019 | All rights reserved... -
Page 40: Playing Back Videos
SSV9 Installation and Setup Guide Playing Back Videos Playing Back Videos 1 . Touch lower area of screen to display controls. 2 . Press the Playback button. © Safe Fleet | September 2019 | All rights reserved... - Page 41 SSV9 Installation and Setup Guide Playing Back Videos 3 . Enter user name and password, if required. 4 . Select a date/time range, and press search . © Safe Fleet | September 2019 | All rights reserved...
- Page 42 SSV9 Installation and Setup Guide Playing Back Videos 5 . Select a saved video from the list, and press play . Video plays in the currently selected view (e.g.,two/four/six-panel view or full-screen). © Safe Fleet | September 2019 | All rights reserved...
- Page 43 SSV9 Installation and Setup Guide Playing Back Videos Full-screen view Control panel hidden © Safe Fleet | September 2019 | All rights reserved...
- Page 44 SSV9 Installation and Setup Guide Playing Back Videos To show the control, tap the lower area of the screen and select the menu option. Control Panel © Safe Fleet | September 2019 | All rights reserved...
-
Page 45: Troubleshooting
Disconnect power cable from the device and then reconnect it. When inserting the connector, push it until the connector lock is closed. You should hear a light clicking sound. © Safe Fleet | September 2019 | All rights reserved... -
Page 46: Touch Screen And Cameras
Ensure the CAMERAS harness is properly connected to the screen . b. Disconnect non-working camera from the camera harness and connect to another (known working) channel to check whether the camera is functional © Safe Fleet | September 2019 | All rights reserved... -
Page 47: Support Information
General Inquiries: 1.888.639.1666 • Email: support@fleetmind.com Product information For product information and related documentation, please visit the Safe Fleet Community: • https://community.seon.com/ Please contact Technical Support if you do not have credentials to log in. © Safe Fleet | September 2019 | All rights reserved...
