Safe Fleet RVS-6035 Instruction Manual

3-channel tft 5” lcd digital color rear view monitor (with power harness)

Advertisement

Quick Links

RVS-6035
Rear View Monitor
3-Channel TFT 5" LCD Digital Color
Rear View Monitor (with Power Harness)
Instruction Manual
© Rear View Safety 2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RVS-6035 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Safe Fleet RVS-6035

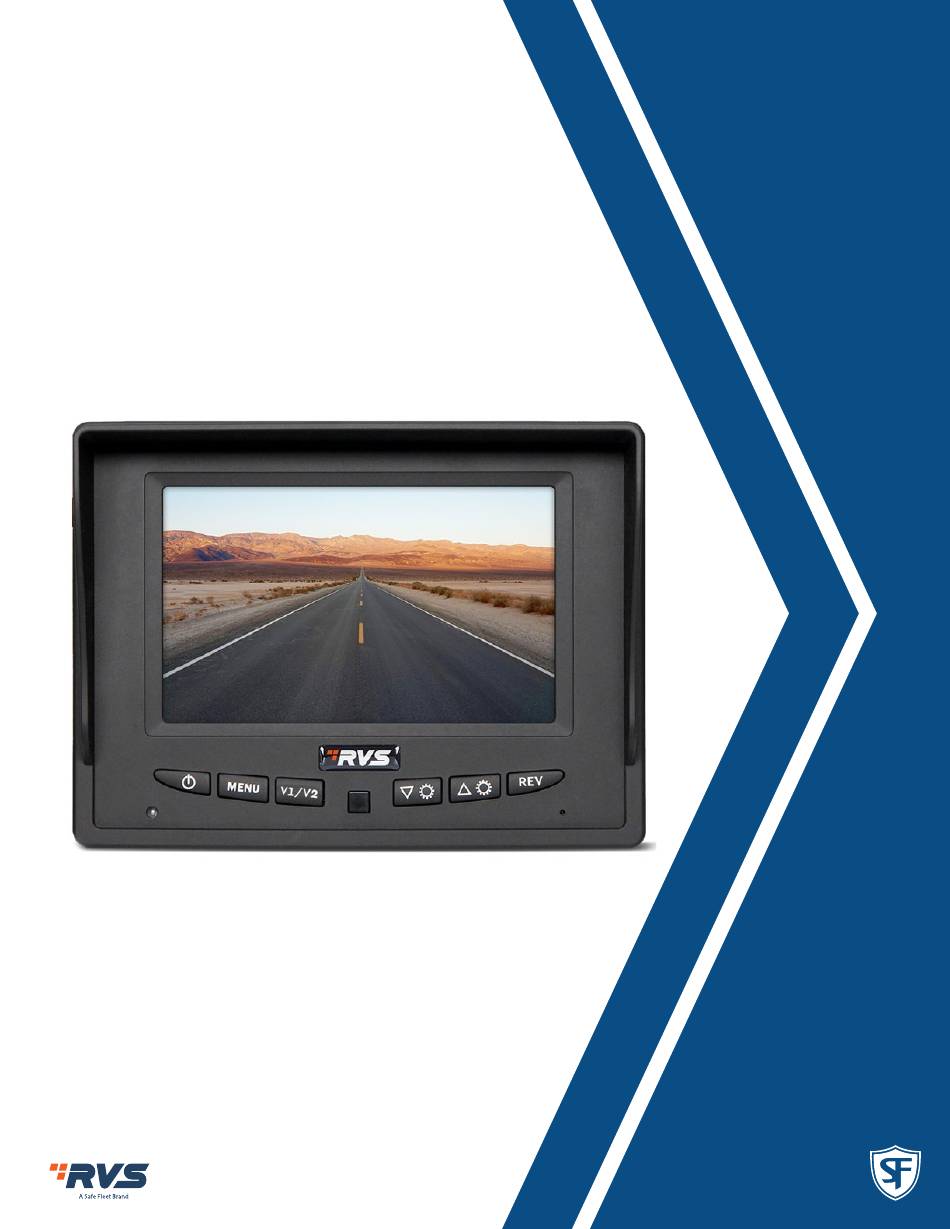

  • Page 1 RVS-6035 Rear View Monitor 3-Channel TFT 5” LCD Digital Color Rear View Monitor (with Power Harness) Instruction Manual © Rear View Safety 2022...
  • Page 2: Table Of Contents

    Introduction ....................3 In The Box ......................3 Safety Information ..................4-6 Before Beginning Installation ..............7 Installation Guide ..................8 Replacement Installation Diagram ............8 Wiring Camera & Monitor ................9-10 Connection Diagram ..................11 Monitor Operation ..................12 Splitting & Splicing ...................13 Positioning ....................14 Monitor Dimensions ...................15 Monitor Specifications ................16 Troubleshooting ....................17 Warranty ......................18...
  • Page 3: Introduction

    Congratulations on purchasing a Rear View Backup Camera System! With this manual you will be able to properly install and operate the unit. The Backup Camera System is intended to be installed as a supplement aid to your standard rear view mirror that already exists in your vehicle. The Backup Camera System should not be used as a substitute for the standard rear view mirror or for any other mirror that exists in your vehicle.
  • Page 4: Safety Information

    SAFETY INFORMATION PLEASE READ THE ENTIRE MANUAL AND FOLLOW THE INSTRUCTIONS AND WARNINGS CAREFULLY. FAILURE TO DO SO CAN CAUSE SERIOUS DAMAGE AND/OR INJURY, INCLUDING LOSS OF LIFE. BE SURE TO OBEY ALL APPLICABLE LOCAL TRAFFIC AND MOTOR VEHICLE REGULATIONS AS IT PERTAINS TO THIS PRODUCT.
  • Page 5 SAFETY INFORMATION INSTALLATION Electric shock or product malfunction may occur if this product is installed incorrectly. Use this product within the voltage range specified. Failure to do so can • cause electronic shock or product malfunction. Take special care when cleaning the monitor. •...
  • Page 6 If you have questions about this product, please contact us at: 800.764.1028 sales@rearviewsafety.com www.rearviewsafety.com New York 1797 Atlantic Ave Brooklyn, NY 11233 Indiana 319 Roske Dr. Elkhart, Indiana 46516 Canada 68 Trafalgar Square Thornhill, ON, L4J 7M5, Canada IN NO EVENT SHALL SELLER OR MANUFACTURER BE LIABLE FOR ANY DIRECT OR CONSEQUENTIAL DAMAGES OF ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM ANY DEFECTIVE PRODUCT OR THE USE OF ANY PRODUCT.
  • Page 7: Before Beginning Installation

    BEFORE YOU BEGIN INSTALLATION Before drilling please check that no cable or wiring is on the other side of the wall. Please clamp all wires securely to reduce the possibility of them being damaged while vehicle is in use. Keep all cables away from hot or moving parts and electrical noisy components.
  • Page 8: Installation Guide

    INSTALLATION GUIDE Cable 1. Be sure to position the cable properly. The aviation camera cable uses aircraft grade connectors which means the camera cable can be exposed to all weather elements. Do not run the cable over sharp edges, do not kink the cable and keep away from HOT and rotating parts.
  • Page 9: Wiring Camera & Monitor

    WIRING CAMERA AND MONITOR The Power Harness • To power the system connect the power (RED) 12V+ wire to ignition power and the ground (BLACK) wire to chassis ground. • These are the only wires needed to power the entire system and all the cameras.
  • Page 10 WIRING CAMERA AND MONITOR Audio: There is audio on channels 2 and 3. On channel 3 the blue trigger wire must be energized (12V) to activate the audio. On channel 2 the audio is always on. Grid-lines: The grid-lines are also carried through the blue wire. To use the grid-lines for reversing, connect the blue wire to a reverse power.
  • Page 11: Connection Diagram

    CONNECTION DIAGRAM Rear View Safety, 1797 Atlantic Ave., Brooklyn NY 11233 800.764.1028 sales@rearviewsafety.com www.rearviewsafety.com...
  • Page 12: Monitor Operation

    MONITOR OPERATION To turn on the monitor, press “ON” button. • To adjust brightness, press “MENU” 1 time and use arrows • To adjust contrast, press “MENU” 2 times and use arrows • To adjust saturation, press “MENU” 3 times and use arrows •...
  • Page 13: Splitting & Splicing

    SPLITING & SPLICING 1. Red - Power (+) 2. Yellow - Video 3. Green - Mirror / Normal Imaging 4. White - Audio 5. Black - Ground (-) Rear View Safety, 1797 Atlantic Ave., Brooklyn NY 11233 800.764.1028 sales@rearviewsafety.com www.rearviewsafety.com...
  • Page 14: Positioning

    POSITIONING © Rear View Safety...
  • Page 15: Monitor Dimensions

    MONITOR DIMENSIONS Rear View Safety, 1797 Atlantic Ave., Brooklyn NY 11233 800.764.1028 sales@rearviewsafety.com www.rearviewsafety.com...
  • Page 16: Monitor Specifications

    SPECIFICATION Monitor Type TFT LCD Digital Monitor 5” Screen Size 6.6"L x 5"H x .8"D Dimensions Video Input 110.88mm(W) x 62.832mm(H) Active Area Dot Resolution 480 x 3 (RGB) x 272 16:9 Display Format Video System Auto PAL / NTSC 500:1 Contrast Brightness...
  • Page 17: Troubleshooting

    TROUBLESHOOTING Monitor Displays Blue Screen & Displays No Signal Do a hard reset, unplug all cables and power cables and leave out for 1 • minute and then re-connect them. Check to ensure that the connection to the camera is tight. •...
  • Page 18: Warranty

    ONE YEAR WARRANTY REAR VIEW SAFETY, INC. WARRANTS THIS PRODUCT AGAINST MATERIAL DEFECTS FOR A PERIOD OF ONE YEAR FROM DATE OF PURCHASE. WE RESERVE THE RIGHT TO REPAIR OR REPLACE ANY SUCH DEFECTIVE UNIT AT OUR SOLE DISCRETION. REAR VIEW SAFETY, INC. IS NOT RESPONSIBLE FOR A DEFECT IN THE SYSTEM AS A RESULT OF MISUSE, IMPROPER INSTALLATION, DAMAGE OR MISHANDLING OF THE ELECTRONIC COMPONENTS.
  • Page 19: Disclaimer

    DISCLAIMER REAR VIEW SAFETY AND/OR ITS AFFILIATES DOES NOT GUARANTEE OR PROMISE THAT THE USER OF OUR SYSTEMS WILL NOT BE IN/PART OF AN ACCIDENT OR OTHERWISE NOT COLLIDE WITH AN OBJECT AND/OR PERSON. OUR SYSTEMS ARE NOT A SUBSTITUTE FOR CAREFUL AND CAUTIOUS DRIVING OR FOR THE CONSISTENT ADHERENCE TO ALL APPLICABLE TRAFFIC LAWS AND MOTOR VEHICLE SAFETY REGULATIONS.
