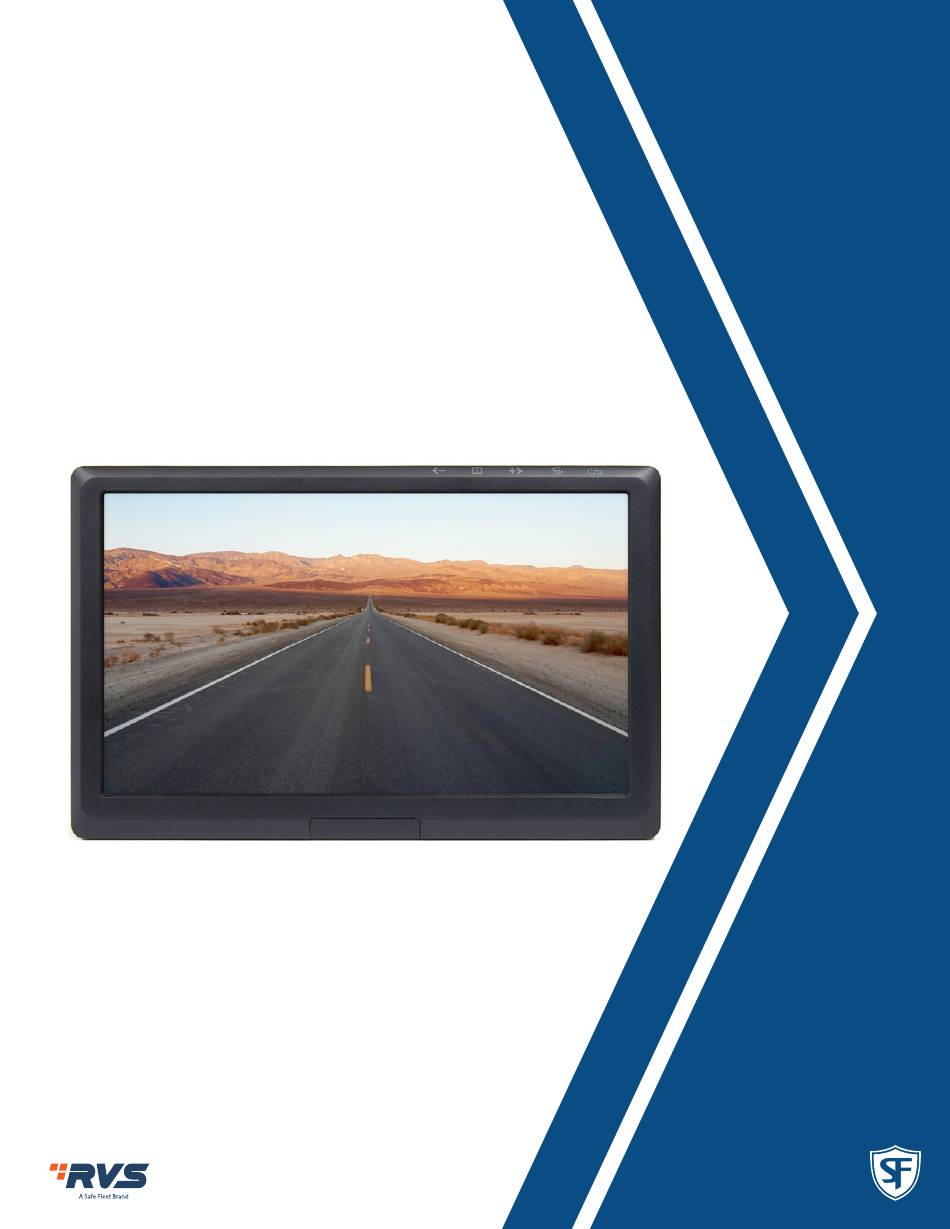

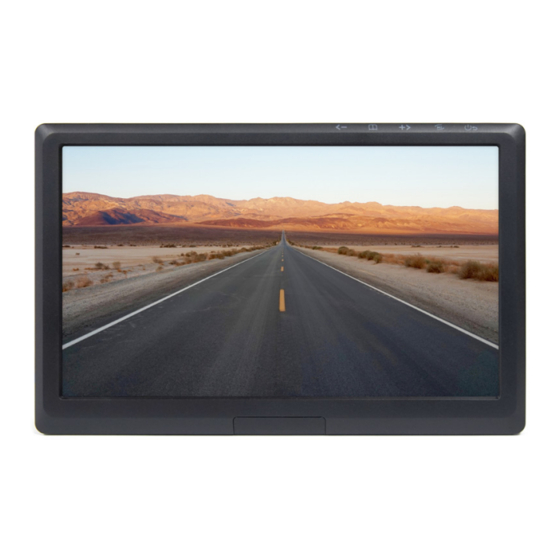

- Page 1 RVS-9HD-DVR Rear View Monitor 9" HD DVR Monitor Instruction Manual © Rear View Safety 2022...
-
Page 2: Table Of Contents
Introduction ....................3 In The Box ......................3 Safety Information ..................4-6 Before Beginning Installation ..............7 Installation Guide ..................8 Replacement Installation Diagram ............8 Wiring Camera & Monitor ................9-10 Connection Diagram ..................11 Monitor Operation ..................12 Splitting & Splicing ...................13 Positioning ....................14 Monitor Dimensions ...................15 Monitor Specifications ................16 Troubleshooting ....................17 Warranty ......................18... -
Page 3: In The Box
Congratulations on purchasing a Rear View Monitor! With this manual you will be able to properly install and operate the unit. The Monitor is intended to be installed as a supplement aid to your standard rear view mirror that already exists in your vehicle. The Monitor should not be used as a substitute for the standard rear view mirror or for any other mirror that exists in your vehicle. -
Page 4: Safety Information
SAFETY INFORMATION PLEASE READ THE ENTIRE MANUAL AND FOLLOW THE INSTRUCTIONS AND WARNINGS CAREFULLY. FAILURE TO DO SO CAN CAUSE SERIOUS DAMAGE AND/OR INJURY, INCLUDING LOSS OF LIFE. BE SURE TO OBEY ALL APPLICABLE LOCAL TRAFFIC AND MOTOR VEHICLE REGULATIONS AS IT PERTAINS TO THIS PRODUCT. - Page 5 SAFETY INFORMATION INSTALLATION Electric shock or product malfunction may occur if this product is installed incorrectly. Use this product within the voltage range specified. Failure to do so can • cause electronic shock or product malfunction. Take special care when cleaning the monitor. •...
- Page 6 If you have questions about this product, please contact us at: 800.764.1028 sales@rearviewsafety.com www.rearviewsafety.com New York 1797 Atlantic Ave Brooklyn, NY 11233 Indiana 319 Roske Dr. Elkhart, Indiana 46516 Canada 68 Trafalgar Square Thornhill, ON, L4J 7M5, Canada IN NO EVENT SHALL SELLER OR MANUFACTURER BE LIABLE FOR ANY DIRECT OR CONSEQUENTIAL DAMAGES OF ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM ANY DEFECTIVE PRODUCT OR THE USE OF ANY PRODUCT.
- Page 7 BEFORE YOU BEGIN INSTALLATION Before drilling please check that no cable or wiring is on the other side of the wall. Please clamp all wires securely to reduce the possibility of them being damaged while vehicle is in use. Keep all cables away from hot or moving parts and electrical noisy components.
-
Page 8: Installation Guide
INSTALLATION GUIDE Cable 1. Be sure to position the cable properly. The aviation camera cable uses aircraft grade connectors which means the camera cable can be exposed to all weather elements. Do not run the cable over sharp edges, do not kink the cable and keep away from HOT and rotating parts. -
Page 9: Wiring Camera & Monitor
WIRING CAMERA AND MONITOR The Power Harness • To power the system connect the power (RED) 12V+ wire to ignition power and the ground (BLACK) wire to chassis ground. • These are the only wires needed to power the entire system and all the cameras. - Page 10 WIRING CAMERA AND MONITOR Audio: There is audio on channels 2 and 3. On channel 3 the blue trigger wire must be energized (12V) to activate the audio. On channel 2 the audio is always on. Grid-lines: The grid-lines are also carried through the blue wire. To use the grid-lines for reversing, connect the blue wire to a reverse power.
-
Page 11: Connection Diagram
CONNECTION DIAGRAM HDMI-VGA Adapter HDMI Cable (RVS-1080 and RVS-8150 Series) 1. ACC+ (red) USB to mini USB cable to power up the 2. GND (black) Adapter 3. Reverse (blue) (RVS-5520-Hybrid Series) HDMI Cable 1. ACC+ (red) 2. GND (black) 3. Reverse (blue) Rear View Safety, 1797 Atlantic Ave., Brooklyn NY 11233 800.764.1028 sales@rearviewsafety.com www.rearviewsafety.com... -
Page 12: Monitor Operation
MONITOR OPERATION 1. Decrease brightness, contrast, color, volume 2. Menu 3. Increase brightness, contrast, color, volume 4. AV/HDMI/USB Switch 5. Power ON/OFF © Rear View Safety... -
Page 13: Monitor Dimensions
MONITOR DIMENSIONS AND REMOTE OPERATIONS 5.6" 1.22" D 8.8" 1. Power 2. AV1/AV2/HDMI/USB 3. USB/SD 4. Fast Backward 5. Fast Forward 6. Up 7. Left 8. Right 9. Down 10. Enter 11. Previous 12. Next 13. Exit 14. Mute 15. Play/Pause 16. - Page 14 SPECIFICATION Monitor Specs Screen Size 9.3” HD IPS Full-View Panel Video System PAL / NTSC 1280 x (RGB) 640 Pixels Resolution 16 x 9 Aspect Ratio Video Input AV2 w/ trigger wire, AV1 w/ trigger wire (optional) Brightness 500 cd/m2 Contrast 500:1 Built-in Speaker...
- Page 15 MONITOR MENU Input Source Switch Press the key or press the on the remote to change Input source (AV 1 / AV 2 / HDMI / USB mode) USB Mode (Read the Photo, Music, Movie, Text on USB) Rear View Safety, 1797 Atlantic Ave., Brooklyn NY 11233 800.764.1028 sales@rearviewsafety.com www.rearviewsafety.com...
- Page 16 VIDEO SETTINGS Long press the second key on the monitor or press MENU on remote to get into the settings mode Monitor Video Settings Interface Auto Picture: Standard / Movie / Eco / Personal/ Vivid Brightness: 0-100 Contrast: 0-100 Color: 0-100 Sharpness: 0-100 Color Temperature: Normal / Warm / User / Cool Advance Control: Noise Reduction / Backlight / DCR / DCC...
- Page 17 AUDIO SETTINGS Sound Mode: Standard / Music / Speech / Personal Balance: 0-50 Bass/Treble: Set up according to Sound Mode automatically Virtual Surround: On / Off Auto Volume: On / Off Balance: 0-50 Bass/Treble: Set up according to Sound Mode automatically Virtual Surround: On / Off Auto Volume: On / Off Rear View Safety, 1797 Atlantic Ave., Brooklyn NY 11233...
- Page 18 SETTING Menu Language: English / Chinese MenuTimeout: 20 / 30 / 40 / 50 / 60 second / Off Menu Transparency: Off / Low/ Middle/ High Power On Status:Power On / Keep Last Memory / Standby Blue Screen: On / Off Time Setup: Time / Sleep Timer/ Auto Sleep Reset Default ©...
- Page 19 CHILD LOCK Enter 4 numbers as PIN according to your preferences. (This function is in order to prevent children press button and cause something that should not happen, the other keys will not work after the lock is locked.) Rear View Safety, 1797 Atlantic Ave., Brooklyn NY 11233 800.764.1028 sales@rearviewsafety.com www.rearviewsafety.com...
-
Page 20: Troubleshooting
TROUBLESHOOTING Monitor Displays Blue Screen & Displays No Signal Do a hard reset, unplug all cables and power cables and leave out for 1 • minute and then re-connect them. Check to ensure that the connection to the camera is tight. •... - Page 21 Rear View Safety, 1797 Atlantic Ave., Brooklyn NY 11233 800.764.1028 sales@rearviewsafety.com www.rearviewsafety.com...
-
Page 22: Warranty
ONE YEAR WARRANTY REAR VIEW SAFETY, INC. WARRANTS THIS PRODUCT AGAINST MATERIAL DEFECTS FOR A PERIOD OF ONE YEAR FROM DATE OF PURCHASE. WE RESERVE THE RIGHT TO REPAIR OR REPLACE ANY SUCH DEFECTIVE UNIT AT OUR SOLE DISCRETION. REAR VIEW SAFETY, INC. IS NOT RESPONSIBLE FOR A DEFECT IN THE SYSTEM AS A RESULT OF MISUSE, IMPROPER INSTALLATION, DAMAGE OR MISHANDLING OF THE ELECTRONIC COMPONENTS. -
Page 23: Disclaimer
DISCLAIMER REAR VIEW SAFETY AND/OR ITS AFFILIATES DOES NOT GUARANTEE OR PROMISE THAT THE USER OF OUR SYSTEMS WILL NOT BE IN/PART OF AN ACCIDENT OR OTHERWISE NOT COLLIDE WITH AN OBJECT AND/OR PERSON. OUR SYSTEMS ARE NOT A SUBSTITUTE FOR CAREFUL AND CAUTIOUS DRIVING OR FOR THE CONSISTENT ADHERENCE TO ALL APPLICABLE TRAFFIC LAWS AND MOTOR VEHICLE SAFETY REGULATIONS. - Page 24 Engineered For Vehicle Safety If you have questions about this product, please contact us at: 800.764.1028 sales@rearviewsafety.com www.rearviewsafety.com New York 1797 Atlantic Ave Brooklyn, NY 11233 Indiana 319 Roske Dr. Elkhart, Indiana 46516 Canada 68 Trafalgar Square Thornhill, ON, L4J 7M5, Canada...
