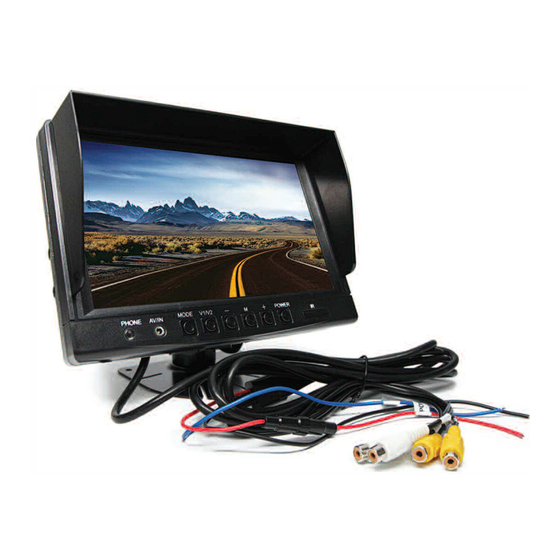

- Page 1 RVS-6139N-RCA Commercial Grade 9 Inch Monitor with RCA Connection Product Manual REAR VIEW SAFETY Rear View Safety, Inc. <O 2016 A Safe Fleet Brand...
-
Page 2: Table Of Contents
Table of Contents Introduction ....................3 Safety Information .................4-6 Before Beginning Installation..............7 Installation Guide..................8-9 Installing the Monitor................10 Monitor Operation..................11 Splitting & Splicing...................12 Monitor Specifications................13 Monitor Dimensions..................14 Troubleshooting..................15 Warranty.......................16 Disclaimer.....................17 REAR VIEW SAFETY... -
Page 3: Introduction
Introduction Please read all of the installation instructions carefully before installing the product. Improper installation will void manufacturer’s warranty. Congratulations on purchasing a Rear View Backup Camera System! With this manual you will be able to properly install and operate the unit. The Backup Camera System is intended to be installed as a supplement aid to your standard rear view mirror that already exists in your vehicle. -
Page 4: Safety Information
Safety Information Please read the entire manual and follow the instructions and warnings carefully. Failure to do so can cause serious damage and/or injury, including loss of life. Be sure to obey all applica- ble local traffic and motor vehicle regulations as it pertains to this product. - Page 5 Safety Information INSTALLATION • While installing the Rear View System be careful with • Electric shock or product the wire positioning in order malfunction may occur if to avoid wire damage. this product is installed incorrectly. • The Rear View System should only be used when the •...
- Page 6 Safety Information If you have questions about this product, contact: Customer Service: Rear View Safety 1797 Atlantic Avenue Brooklyn, NY 11233 Tel: 800.764.1028 IN NO EVENT SHALL SELLER OR MANUFACTURER BE LIABLE FOR ANY DIRECT OR CONSEQUENTIAL DAMAGES OF ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM ANY DEFECTIVE PRODUCT OR THE USE OF ANY PRODUCT.
-
Page 7: Before Beginning Installation
Before Beginning Installation Before Beginning Installation Before drilling please check that no cable or wiring is on the other side of the wall. Please clamp all wires securely to reduce the possibility of them being damaged while vehicle is in use. Keep all cables away from hot or moving parts and electrical noisy components. -
Page 8: Installation Guide
Installation Guide Cable 1. Be sure to position the cable properly. The camera cable uses aircraft grade connectors which means the camera cable can be exposed to all weather elements. Do not run the cable over sharp edges, do not kink the cable and keep away from HOT and rotating parts. - Page 9 Installation Guide • To power the system connect • Audio: There is continuous the power (RED) 12V+ wire to audio on both channel 1 and ignition power and the ground channel 2. (BLACK) wire to chassis ground. • Grid-lines: The grid-lines are •...
-
Page 10: Installing The Monitor
Installing the Monitor MONITOR fuse 2*3pcs POWER POWER BACK video 1 yellow connects to video 2 video 2 audio 1 3*4pcs audio 2 red connects to audio 2 CAMERA REAR VIEW SAFETY... -
Page 11: Monitor Operation
Monitor Operation “-” DOWN “+” ROTATE IMAGE POWER (Back/Exit ON / OFF when in Menu Mode) • Use "BRIGHTNESS" "CONSTRAST" "SATURATION" “SHARPNESS" to adjust the image properties. • Day/Night Mode: Mode 1 will turn on the Back-lit buttons. Mode 2 will turn on the auto-dim feature on the monitor. -
Page 12: Splitting & Splicing
Splitting & Splicing 2 x 3pcs fuse RED - POWER BLACK - GND BLUE - BACK black blue video 1 yellow green white video 2 orange audio 1 3*4pcs audio 2 REAR VIEW SAFETY... -
Page 13: Monitor Specifications
Monitor Specifications TFT LCD Digital Monitor Screen Size 9” Dot Resolution x 3 (RGB) x 480 Display Format 16:9 / 500:1 Display Brightness 400cd/m Viewing Angle U:50° / D:60° / R:70° Video Input 2 Channel Video Source 1Vp-p, 75 Power Supply DC 12V-24V (+/- 10%) Power Consumption Operating Temperature... -
Page 14: Monitor Dimensions
Monitor Dimensions 9” Menu/ Selection ” Button Camera Selection Rotation Imager (Exit in Down Menu Power Mode) On/Off power video select down/up menu mirror/ normal image REAR VIEW SAFETY... -
Page 15: Troubleshooting
Troubleshooting Monitor Displays Blue Screen & Displays No Signal • Do a hard reset, unplug all put to power 12v+. cables leave out for 1 minute and then re-connect them. If the problem still persists, ver- • Check to ensure that the con- ify that alternate ports work. -
Page 16: Warranty
Warranty One Year Warranty Rear View Safety, Inc. warrants this product against material defects for a period of one year from date of purchase. We reserve the right to repair or replace any such defective unit at our sole discretion. Rear View Safety, Inc. is not responsible for a defect in the system as a result of misuse, improper installation, damage or mishandling of the electronic components. -
Page 17: Disclaimer
Disclaimer Rear View Safety and/or its affiliates does not guarantee or promise that the user of our systems will not be in/part of an accident or otherwise not collide with an object and/or person. Our systems are not a substitute for careful and cautious driving or for the consistent adherence to all applicable traffic laws and motor vehicle safety regulations. - Page 18 If you have any questions about this product, contact: Rear View Safety, Inc. 1797 Atlantic Avenue Brooklyn, NY 11233 800.764.1028 BETTER CAMERAS. BETTER SERVICE. IT’S OUR GUARANTEE.
