These instructions apply only for the destination countries listed on the appliance's data plate.

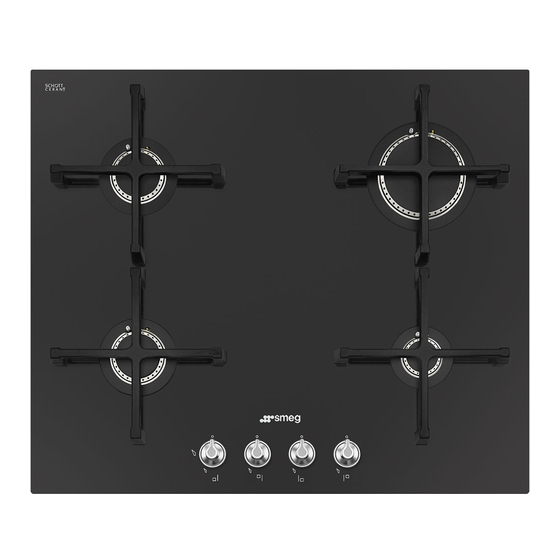

This is a class 3 built in hob.
We advise you to read this manual carefully, which contains all the instructions for
maintaining the appliance's aesthetic and functional qualities.
For further information on the product: www.smeg.com
Contents
4
4
7
7
7
8
8
9
10
10
11
11
12
12
12
12
14
14
14
16
16
17
18
18
19
20
22
26
3
Advertisement
Table of Contents
Related Manuals for Smeg PV164CN2AU
Summary of Contents for Smeg PV164CN2AU
-
Page 1: Table Of Contents
These instructions apply only for the destination countries listed on the appliance's data plate. This is a class 3 built in hob. We advise you to read this manual carefully, which contains all the instructions for maintaining the appliance's aesthetic and functional qualities. For further information on the product: www.smeg.com... -
Page 2: Instructions
Instructions 1 Instructions • Cleaning and maintenance must not be carried out by 1.1 General safety instructions unsupervised children. • Make sure that the flame- Risk of personal injury spreader crowns are correctly • During use the appliance and its positioned in their housings with accessible parts become very hot. - Page 3 Instructions • Do not place metal objects, such • Do not seat on the appliance. as dishes or cutlery, on the hob • Do not use steam jets to clean the surface during use as they may appliance. overheat. • Do not obstruct ventilation •...
- Page 4 Instructions • Do not use steam jets to clean the • Always use any necessary/ appliance. required personal protective equipment (PPE) before • Do not use rough or abrasive performing any work on the materials or sharp metal scrapers. appliance (installation, •...
-
Page 5: Identification Plate
Instructions • At the end of the installation, • If cracks or fissures form, or if the check for any leaks with a soapy glass ceramic cooking surface solution, never with a flame. breaks, turn off the appliance immediately. Disconnect the •... -
Page 6: This User Manual
Instructions 1.5 This user manual • Consign the appliance to the appropriate selective collection centres This user manual is an integral part of for electrical and electronic equipment the appliance and must therefore be waste, or deliver it back to the retailer kept in its entirety and within the when purchasing an equivalent product, user's reach for the whole working... -
Page 7: How To Read The User Manual
Instructions 1.7 How to read the user manual This user manual uses the following reading conventions: Instructions General information on this user manual, on safety and final disposal. Description Description of the appliance and its accessories. Information on the use of the appliance and its accessories, cooking advice. -
Page 8: Description
Description 2 Description 2.1 General Description 60 cm 70 cm AUX = Auxiliary R1= Large rapid SR = Semi-rapid R2 = Medium rapid RR = Reduced rapid... -
Page 9: Symbols
2.2 Symbols 2.3 Available accessories Cooking zones Burner wrench (for installer only) Front left Rear left Central Rear right Front right Centre left Burner knobs For removing and replacing the hob burners. Supplied and optional accessories can be requested to Authorised Useful for lighting and adjusting the hob Assistance Centres. -
Page 10: Use
3 Use 3.2 First use 1. Remove any protective film from the 3.1 Instructions outside or inside of the appliance, including accessories. Improper use 2. Remove any labels (apart from the Danger of burns technical data plate) from accessories. 3. Remove and wash all the appliance •... - Page 11 Cleaning and maintenance Correct positioning of the grids flame far enough to ensure that the liquid does not boil over. The grids over the burners must be positioned in parallel to the control panel, Cookware diameters: not perpendicular. • Auxiliary: 7 - 18 cm. •...
-
Page 12: Cleaning And Maintenance
Cleaning and maintenance 4 Cleaning and maintenance 4.2 Cleaning the appliance To keep the surfaces in good condition, 4.1 Instructions they should be cleaned regularly after use. Let them cool first. Improper use Ordinary daily cleaning Risk of damage to surfaces Always use only specific products that do not contain abrasives or chlorine-based •... - Page 13 Installation Cooking hob grids Igniters and thermocouples Remove the grids and clean them with For correct operation the igniters and lukewarm water and non-abrasive thermocouples must always be perfectly detergent. Make sure to remove any clean. Check them frequently and clean encrustations.
-
Page 14: Installation
Installation 5 Installation 5.1 Clearances above and around domestic appliances This appliance must be installed by an highest part of the hob shall be protected authorised person in accordance with this for the full width and depth of the instruction manual, AS/NZS 5601.1 – cooking surface area in accordance Gas installations (installation and pipe with Clause 5.12.1.2. -
Page 15: Safety Instructions
Installation 3. Additional requirements for 5.2 Safety instructions Freestanding and Elevated Cooking Heat production during appliance Appliaces – (Measurements D & E) operation Where D, the distance from the Risk of fire periphery of the nearest burner to a horizontal combustible surface is less •... -
Page 16: Section Cut From The Work Surface
Installation 5.3 Section cut from the work surface 5.4 Mounting Over built-in oven The following operation requires building and/or carpentry work The distance between the hob and the and must therefore be carried out kitchen furniture or other installed by a competent tradesman. appliances must be enough to ensure Installation can be carried out on sufficient ventilation and air discharge. -
Page 17: Fixing Brackets
Installation Over empty kitchen unit or drawers Hob seal If there are other pieces of furniture (lateral To prevent leakage of liquid between the walls, drawers, etc.), dishwashers or fridges frame of the hob and the work surface, under the hob, a double-layer wooden place the adhesive seal provided along the base must be installed at least 10 mm from entire outer edge of the hob before... -
Page 18: Gas Connection
Installation 5.6 Gas connection Gas leak Annual service by an authorised person is recommended, or if any Danger of explosion of the following conditions are noticed; incomplete ignition, • After carrying out any operation, check appreciable yellow tipping, that the tightening torque of gas carbon deposition, lifting, floating, connections is between 10 Nm and 15 lighting back or objectionable... - Page 19 Installation Before the appliance is operated make Connection to liquid gas certain all relevant parts are placed in the Use a pressure regulator and make the correct position. connection on the gas cylinder following On completion of the installation, the the guidelines set out in the regulations in installer MUST check for gas leaks and test force.
-
Page 20: Adaptation To Different Types Of Gas
Installation 5.7 Adaptation to different types of Extraction of the combustion products The combustion products may be extracted by means of hoods connected to a natural The appliance is preset for natural draught chimney whose efficiency is certain gas NG 1.0 kPa at a pressure of or via forced extraction. - Page 21 Installation 3. Pull the knobs upwards to remove them. 5. Remove the top. 4. Unscrew the burner rings using the supplied wrench.
- Page 22 Installation Burner and nozzle characteristics table 1 ULPG 2.75 kPa Nominal gas consumption (MJ/h) 14.5 10.8 Injector (1/100 mm) Primary air (mm) 2 NG 1.0 kPA Nominal gas consumption (MJ/h) 14.5 10.8 Injector (1/100 mm) Primary air (mm) Replacing nozzles 3.
- Page 23 Installation Adjusting the minimum setting for natural Adjusting the minimum setting for LPG Tighten the screw located at the side of the Light the burner and turn it to the minimum tap rod clockwise all the way. position. Extract the gas tap knob and turn Following adjustment to a gas the adjustment screw next to the tap rod other than the one originally set in...
-
Page 24: Electrical Connection
Installation 5.8 Electrical connection The appliance can work in the following modes: Power voltage • 220-240 V 1N~ Danger of electrocution 220-240V~ 1 mm • Have the electrical connection performed by authorised technical personnel. 20 mm • Use personal protective equipment. Use a 3 x 1 mm²...
