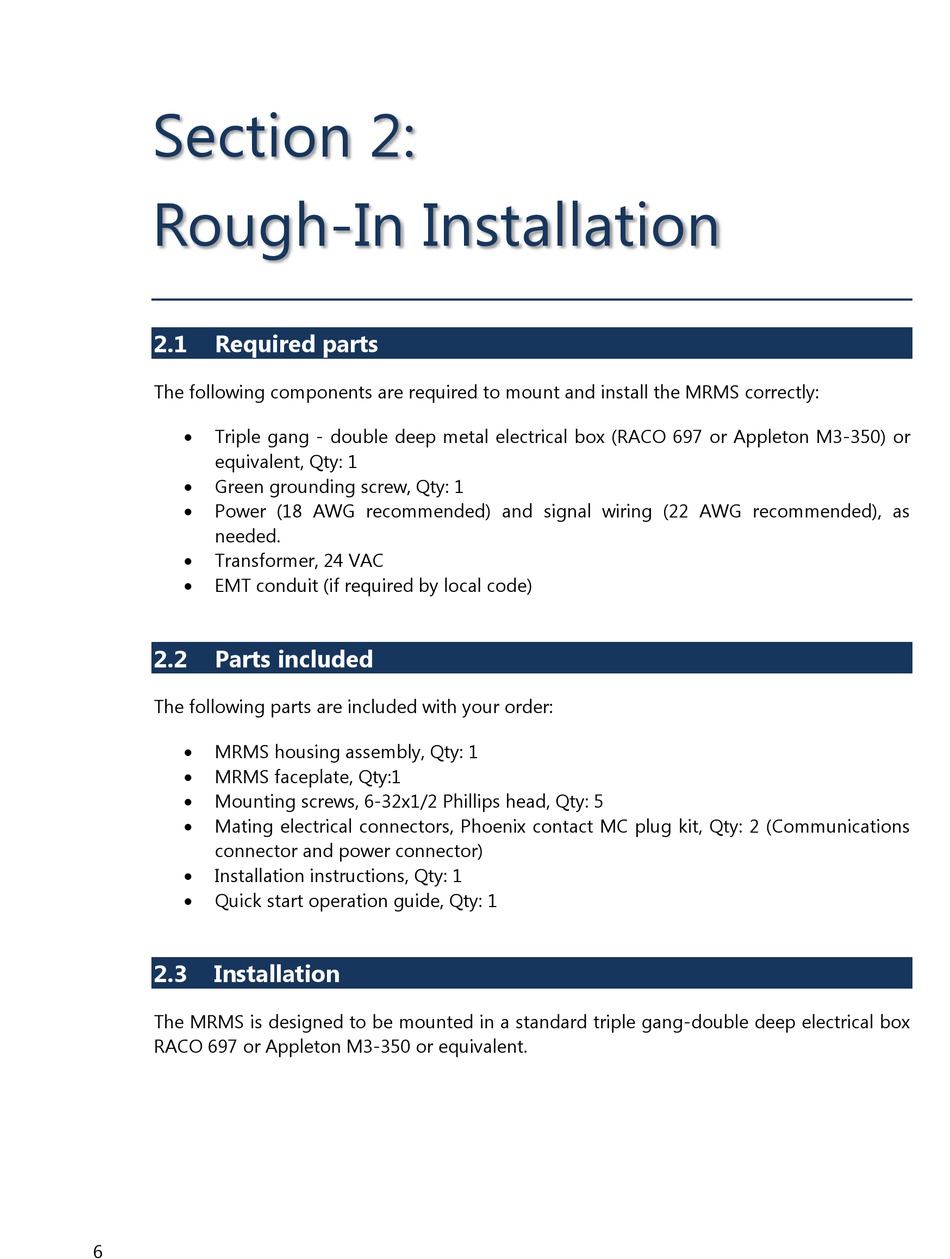

Section 2:
Rough-In Installation
2.1

Required parts

The following components are required to mount and install the MRMS correctly:

Triple gang - double deep metal electrical box (RACO 697 or Appleton M3-350) or
equivalent, Qty: 1

Green grounding screw, Qty: 1

Power (18 AWG recommended) and signal wiring (22 AWG recommended), as
needed.

Transformer, 24 VAC

EMT conduit (if required by local code)
2.2

Parts included

The following parts are included with your order:

MRMS housing assembly, Qty: 1

MRMS faceplate, Qty:1

Mounting screws, 6-32x1/2 Phillips head, Qty: 5

Mating electrical connectors, Phoenix contact MC plug kit, Qty: 2 (Communications
connector and power connector)

Installation instructions, Qty: 1

Quick start operation guide, Qty: 1
2.3 Installation
The MRMS is designed to be mounted in a standard triple gang-double deep electrical box
RACO 697 or Appleton M3-350 or equivalent.
6
