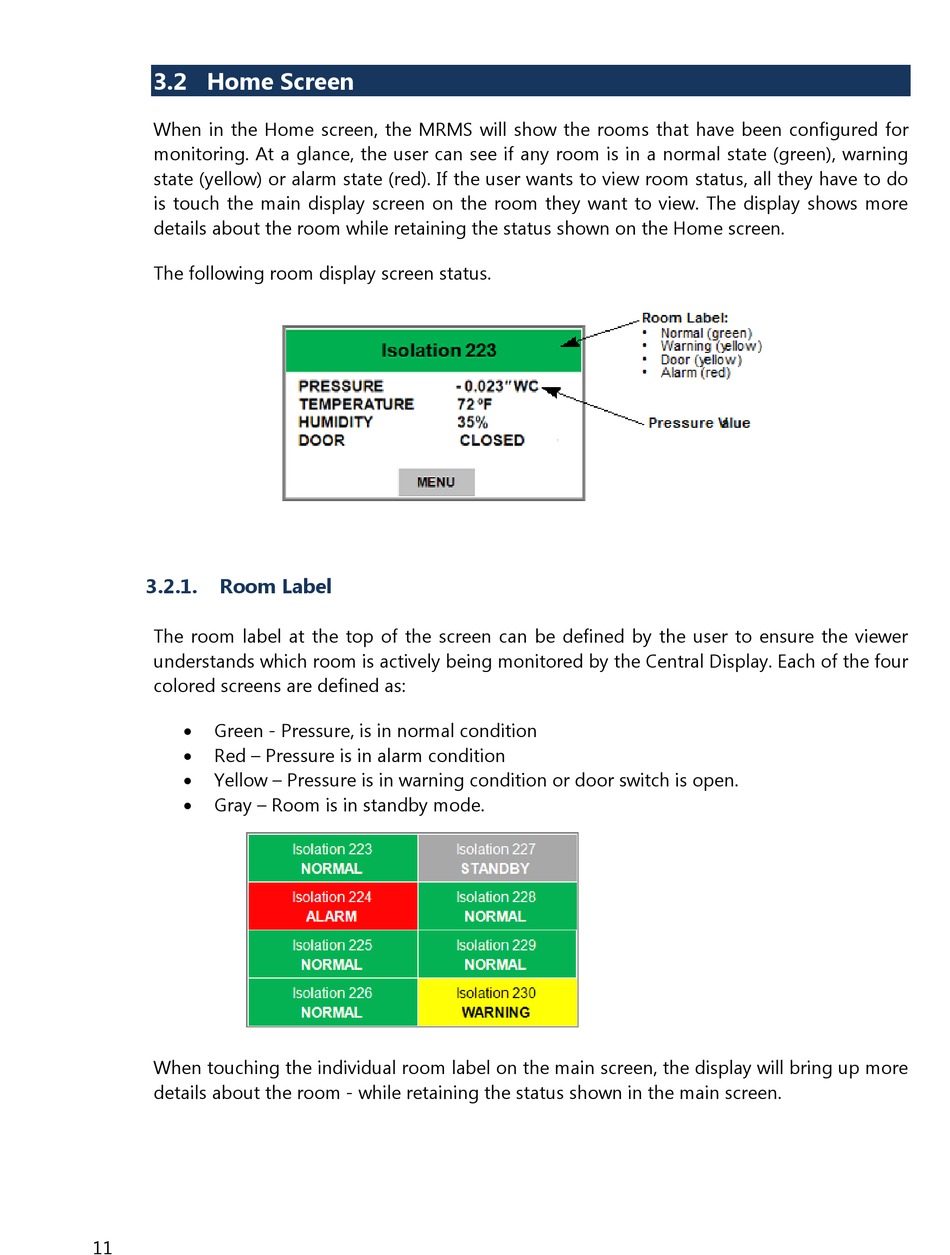

3.2 Home Screen

When in the Home screen, the MRMS will show the rooms that have been configured for
monitoring. At a glance, the user can see if any room is in a normal state (green), warning
state (yellow) or alarm state (red). If the user wants to view room status, all they have to do
is touch the main display screen on the room they want to view. The display shows more
details about the room while retaining the status shown on the Home screen.
The following room display screen status.
3.2.1.

Room Label

The room label at the top of the screen can be defined by the user to ensure the viewer
understands which room is actively being monitored by the Central Display. Each of the four
colored screens are defined as:

Green - Pressure, is in normal condition
 Red – Pressure is in alarm condition
Yellow – Pressure is in warning condition or door switch is open.

Gray – Room is in standby mode.

When touching the individual room label on the main screen, the display will bring up more
details about the room - while retaining the status shown in the main screen.
