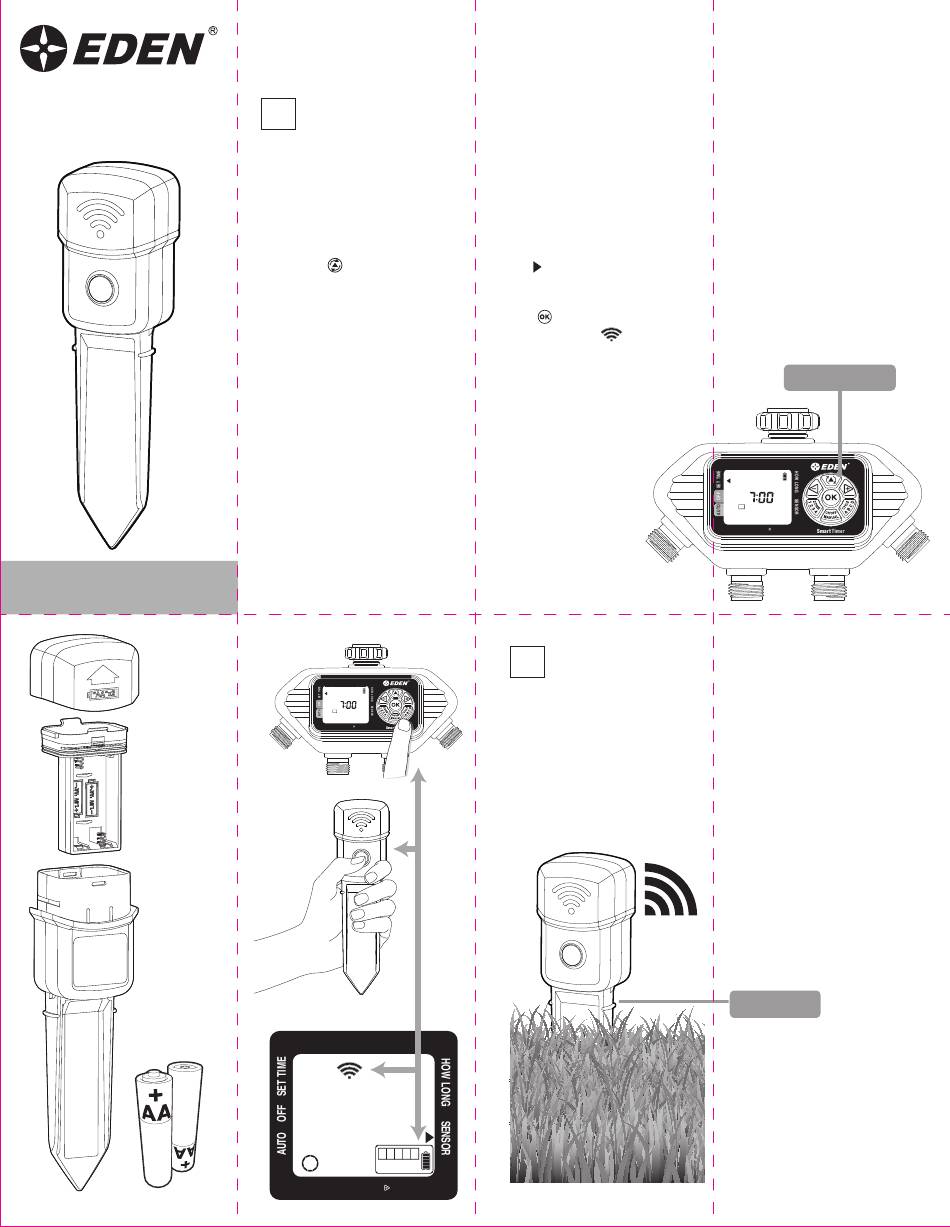

Eden 25417-EDAMZ Quick Start Manual

Wireless
Soil Moisture Sensor
25417-EDAMZ
Cover
Battery tray
Sensor
2 x AA Alkaline batteries
Instructions for using the Eden Wireless Moisture Sensor with Eden Programmable Digital Water Timers. If you have an
Eden Bluetooth® Water Timer, please see separate instructions: https://edengarden.com/support/
1
Pair Your Wireless Moisture Sensor with Your Timer
Pairing the Moisture Sensor should be done before placing the sensor in the ground.
You must program the zone you want to monitor before pairing the sensor. Only one zone can be
paired at a time.
a) Insert 2 fresh AA alkaline batteries into the battery tray of the sensor.
b) Press the button on the timer to move the cursor
c) For multi-zoned timers, select the zone you want paired with your Moisture Sensor.
For a 1-zone timer, move directly to the next step.
d) Simultaneously press the button on your sensor and the
10 seconds to start the pairing process. You will see the sensor box and
on your timer screen once the Moisture Sensor has been paired.
Repeat this process for any additional sensors you want to add to the remaining zones of
multi-zoned timers.
WATER DAY START WATER
CYCLE
RESET
NEXT START TIME A B C D
WATER DAY EVERY DELAY
HRS
AM
PM DAY
TODAY MIN
SU MO TU WE TH FR SA
ZONE MANUAL
1 2 3 4
SENSOR
RAIN DELAY, HOLD
WATER DAY START WATER
CYCLE
RESET
NEXT START TIME A B C D
WATER DAY EVERY
DELAY
AM HRS
DAY
PM
MIN
TODAY
SU MO TU WE TH FR SA
ZONE
MANUAL
1 2 3 4
SENSOR
RAIN DELAY, HOLD
to the SENSOR setting.
button on your timer for about
symbol appear
2
Place the Sensor in the Ground
Place the point of the sensor into the soil within the area you want to monitor. Bury
the sensor up to the indicator ribs located on the side of the sensor. The sensor
should be placed within 300 ft. (100 m) of the timer.
It will take a few minutes for the timer to show the soil moisture reading.
NOTE: Do not hammer the sensor into the ground. You may need to loosen the soil
with a small shovel.
UP TO
300ft
100m
Toggle Button
WATER DAY START WATER
CYCLE
RESET
NEXT START TIME A B C D
WATER DAY EVERY DELAY
AM HRS
PM DAY
MIN
TODAY
SU MO TU WE TH FR SA
ZONE MANUAL
1 2 3 4
SENSOR
RAIN DELAY, HOLD
Indicator Ribs
