Bristan Z2 BIB C Installation Instructions & User Manual

Maximum Operating Temperature
Dynamic Water Pressure
Min: 0.5 bar Max: 5.0 bar
3.0
3.0 2.0
2.0
4.0 1.0 4.0
1.0
0.2 5.0
0 5.0
Pressure
Pressure
BAR
BAR
Maximum Static Pressure: 10.0 bar
If the supply pressure is above 3 bar, a
*This will vary depending on system pressure
pressure reducing valv ed
Tools You'll Need
Crosshead
Screwdriver
Prior to Installation
All products manufactured and supplied by Bristan are safe provided
they are installed, used correctly and receive regular maintenance in
accordance with these instructions.
This product has been tested to the Water Regulations Advisory
Scheme (WRAS) and satisfies the requirements of the Water Supply
(Water Fittings) Regulations 1999 and current bylaws.
For full Installation Requirements & Notes (IRN) please visit
wras.co.uk/directory.
We recommend isolation valves to be fitted to the inlet water
supplies to ensure ease of future maintenance.
Before installing these taps the water supply must be
thoroughly flushed in order to remove any swarf, solder etc.
This product must not be modified in any way as this will
invalidate the guarantee.
If power tools are used do not forget to:
- Wear eye protection
- Unplug equipment after use
If in doubt, contact a registered plumber or your Local Water
Authority or the Secretary of the Institute of Plumbing, address
as follows:-
The Institute of Plumbing,
64 Station Lane,
Hornchurch,
Essex,
RM12 6NB, Tel: 01708 472791
Installation Instructions
& User Guide
Please leave these instructions
with the end user

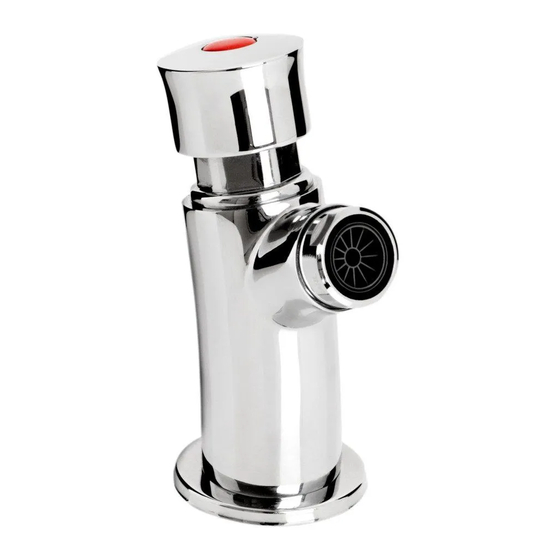

Product Code: Z2 BIB C (D5)
Inlet Connections
65˚C
60˚C
60-65˚C
1/2" Male BSP Tap connector
recommended
The Flow Valve is timed and
5/Ltr Flow Regulator
onds
Pipe Cutter Drill
Adjustable
Spanner
Pack Contents
x1
Flow
Basket Filter
regulator x1
washer x1
Spare Parts
To replace any spare parts
for your tap, why not
scan the QR Code or
visit www.bristan.com
and search for your product.
Installation
1
1
Rear access
will be
required
Drill hole in
the wall
3
Pre-Fitted
Important
If the supply
pressure is above
3 bar a pressure
reducing valve
ed
5
x1
Indices
x2
Blue
Red
Turn on
water
supply
Turn
on water
supply for a
few minutes and
check all joints and
connections for any
leaks.
2
1
4
5
bask er
washer into the
tail in the order
shown
Connect
6
the hot or
cold water
supplies to the
threaded tails.
6
The tap will shut off up to
15 ± 5 seconds*
Place the plinth over the drilled hole
and fit taps through the wall
Please
ensure that
the correct
colour indice
ted
Depending on
chosen hot
or cold water
supply e
(supplied)
Operation
Push down
to get flow of
water
