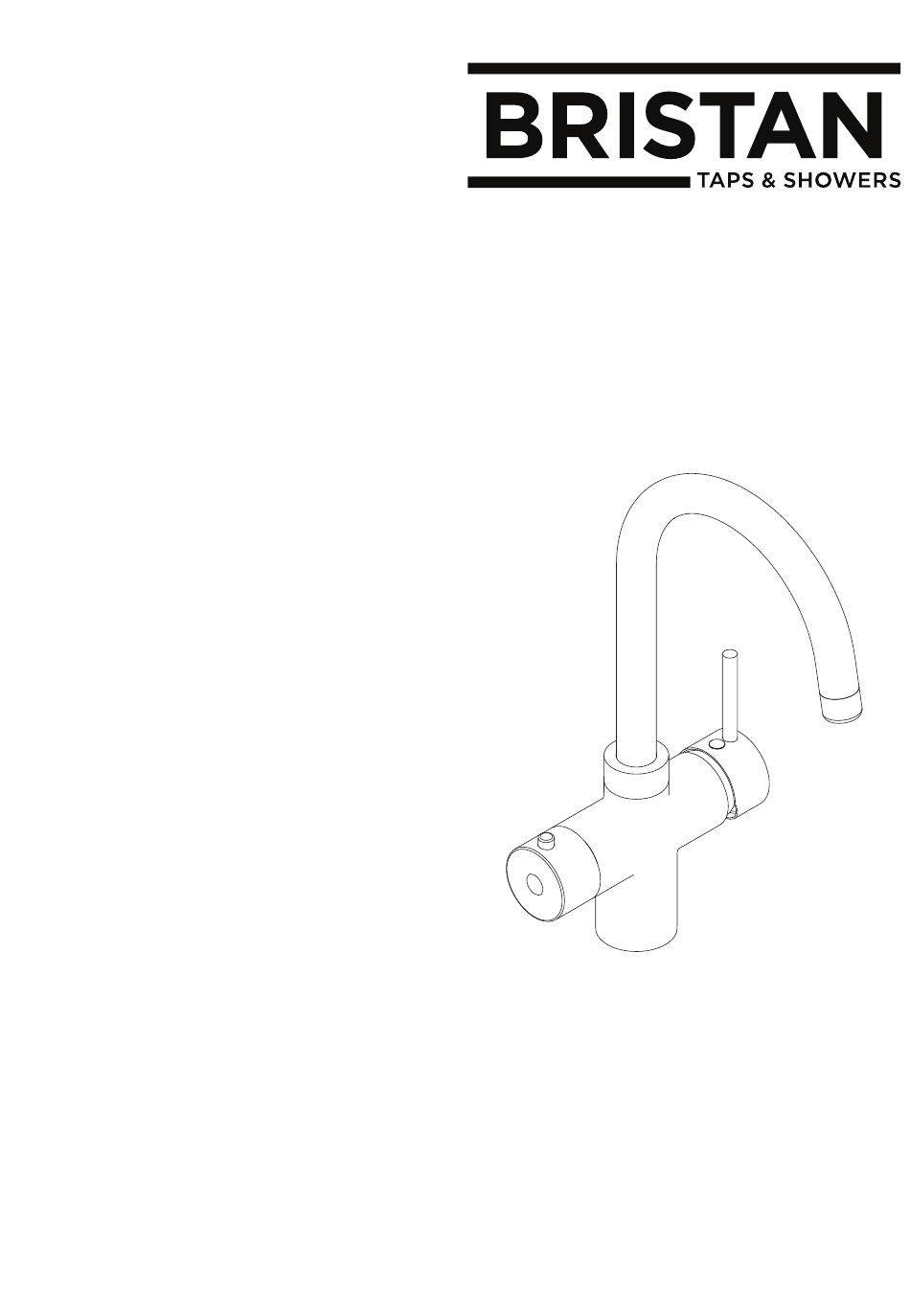

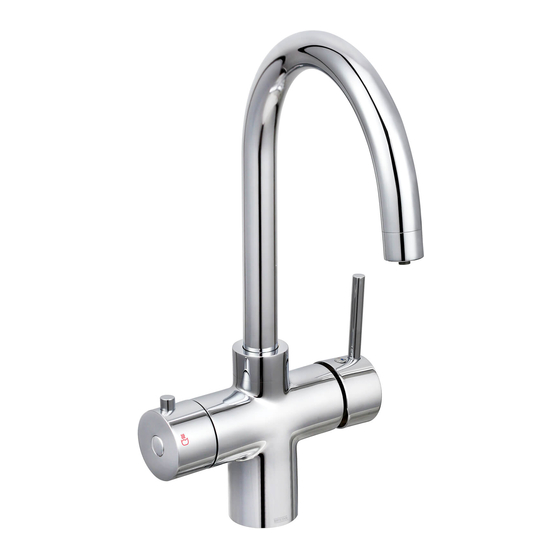

- Page 1 Installation Instructions and User Guide Gallery Rapid Boiling 3-in-1 Sink Mixer Chrome Models Covered: GLL RAPSNK3 C Please keep this booklet for future reference. Installer, when you have read these instructions please ensure you leave them with the user.
-
Page 2: Table Of Contents
Contents Thank you for choosing Bristan, the UK’s leading tap and shower expert. We have designed this product to be easy to install and use. It has also been designed and tested in the UK to all of the relevant British Standards, and conforms to CE Regulations. -
Page 3: Important Safety Information
• Please read these instructions thoroughly and retain for future use. • All products manufactured and supplied by Bristan are safe provided they are installed, used correctly and receive regular maintenance in accordance with these instructions. • If you are in any doubt about your ability to... -
Page 4: Important Safety Information
Important Safety Information • The filter supplied has to be replaced every six months for protection of your Boiling Water Tank. Failure to do so will invalidate your guarantee. • To protect against electric shock, do not place the cord, plugs or Boiling Water Tank near or in water/ other liquids. -
Page 5: Specification
CE Regulations Prior to Installation Pack Contents All products manufactured and supplied by Bristan are safe to use provided they are installed, operated correctly and receive regular maintenance in accordance with these instructions. This product has been designed to comply with the Water Supply (Water Fittings) Regulations 1999 and current bylaws. -
Page 6: Installation Requirements
Installation Requirements Positioning the Boiling Water Tank Place the tank in a suitable, well ventilated location that will not fall below 0°C. Ensure that the tank is installed vertically on Also ensure that the a level surface with adequate space around the Filter is in an easily tank. -
Page 7: Installation Requirements
Installation Requirements Connection Diagram IMPORTANT The PRV, filter and isolation valves, are required for optimum Household Pipework performance and Isolation Valves maintenance of your (not supplied) product Hot Supply (Red) Pressure Cold Supply Reducing Valve (Blue) Filter In Boiling Water Supply Inlet Connections Filter Out... -
Page 8: Installation
Installation Boiling Handle Feed the pipes through the sink Tap Handle hole and place Attach the the tap body. connecting pipes. Tighten the hose clip to secure in place. See pg7 for Guidance. Position the Boiling Water Tank in a suitable location. -
Page 9: Preparation For Use
Installation Connect the filter outlet to the blue boiling water tank connector. Connect the filter inlet connections from the boiling water tap to the filter. IMPORTANT Preparation for Use Ensure the plastic shroud covers the silicon hose connector. This is Place a jug under a safety feature to prevent accidental... -
Page 10: Operation
Operation Light-up Status Arc: Flashing = Warming Up Current Temperature ºC Setting Setting Heating Actual Water Actual ºC Temperature Confirm Temperature Change Temperature Setting: Setting Choose from 75°C, 85°C, 90°C, 95°C, 96°C, 97°C and 98°C On/Off Start-Up/Change Temperature Press the Setting ºC Change... -
Page 11: General Cleaning
Operation Optimum Temperatures Temperature Suitable For 75°C Green Tea Instant Coffee/ 85°C Oolong Tea Oolong Tea/ 90°C Brewing Coffee 95°C Brewing Coffee 96°C 97°C Black Tea/Herbal Tea 98°C Operation - Boiling Water Cold Boiling ºC Setting Water Actual ºC Set up the Boiling Water Tank temperature (see pg10). -
Page 12: Maintenance
Maintenance Cleaning Outlet Using a Return suitable the aerator solution, scrub ensuring and wash the washer the aerator IMPORTANT is in place. Isolate the until fully Screw on water supply de-scaled. Unscrew the the casing. before starting! Rinse aerator casing and hold the thoroughly. -
Page 13: Maintenance
Place a small bowl the QR Code or visit filter and replace with underneath the filter www.bristan.com and the new filter. sump and remove it. search for your product. Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors. -
Page 14: Troubleshooting
Troubleshooting Symptom Cause Remedy Boiling Water Tank is empty at Follow the Preparation for Use section. first switch-on. ‘99’ flashing in the ‘Set Temperature’ display. Boiling Water Tank isn’t Check connections for any leaks. holding water. Contact Customer Services. Turn the Instant Hot Water Tap handle and release the water. -
Page 15: Notes
Notes Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors. - Page 16 Email: enquire@bristan.com A Masco Company At Bristan, we want to make things as easy as possible for our customers. That’s why we offer solid guarantees on all our products, effective from the date of purchase, to give you peace of mind.
