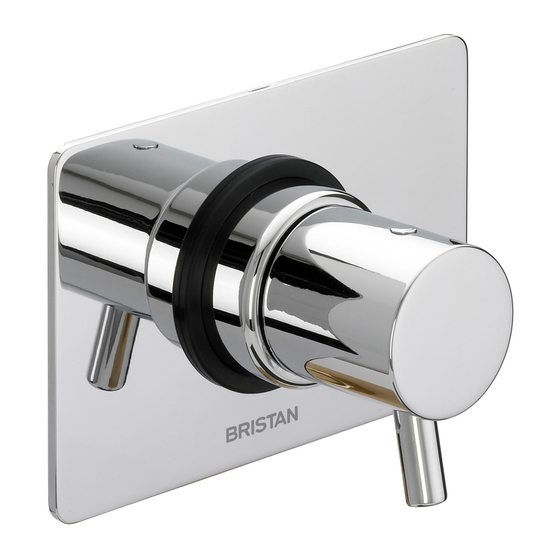

Prism Diverter
(Two Outlets / Three Outlets)
Fitting Instructions
& Contents List
Before starting any installation project, consider "Safety" first. Look for the "safety note"
sign and read the safety advice.
Prior to drilling into walls, check there are no hidden electrical wires, cables or water
supply pipes with the aid of an electronic detector. If you use power tools do not forget:
•
•
Please Keep These Instructions for Future Reference and Request of
Replacement Parts.
Wear eye protection
Unplug equipment after use
Advertisement
Table of Contents
Related Manuals for Bristan Prism
Summary of Contents for Bristan Prism
- Page 1 Prism Diverter (Two Outlets / Three Outlets) Fitting Instructions & Contents List Before starting any installation project, consider “Safety” first. Look for the “safety note” sign and read the safety advice. Prior to drilling into walls, check there are no hidden electrical wires, cables or water supply pipes with the aid of an electronic detector.
- Page 2 This diverter is intended to be used in conjunction with other products, such as the Shower valves and/or stopcocks and spray outlets from the Bristan Prism range in order to create a system to suit your requirements. WATER PRESSURE This valve is suitable for use at all supply pressures up to 8.0 bar. However, the minimum work pressure will depend upon what the diverter will be connected to.
- Page 3 OPERATION 2 Outlet Diverter This has 2 main positions, Outlet V open, and D open There is a 3rd outlet combining outlet V and D but at a reduced flow. 3 Outlet Diverter This has 3 main positions, Outlet V open, Top Outlet D Open and Bottom Outlet D Open. There is also a 4th outlet option, which is outlet V with a reduced flow.
- Page 4 In the interests of continuous product development we reserve the right to alter specification as necessary PRODUCT CODE: PM 3WDIV C / PM 5WDIV C TELEPHONE HELP LINE! 0844 701 6273 Bristan Group Ltd. Birch Coppice Business Park Dordon Tamworth...
