Summary of Contents for Schaeffler ADE

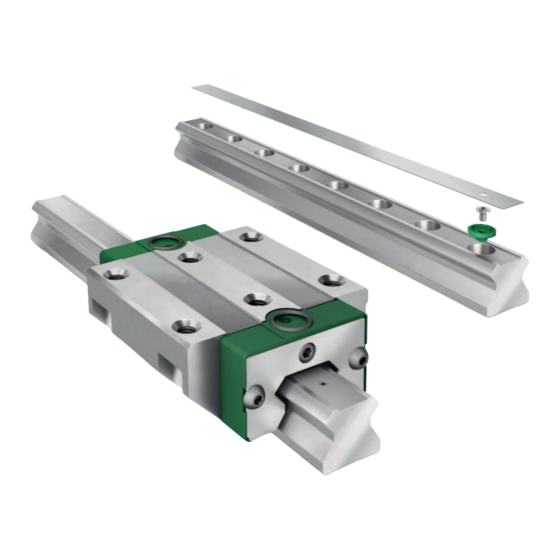

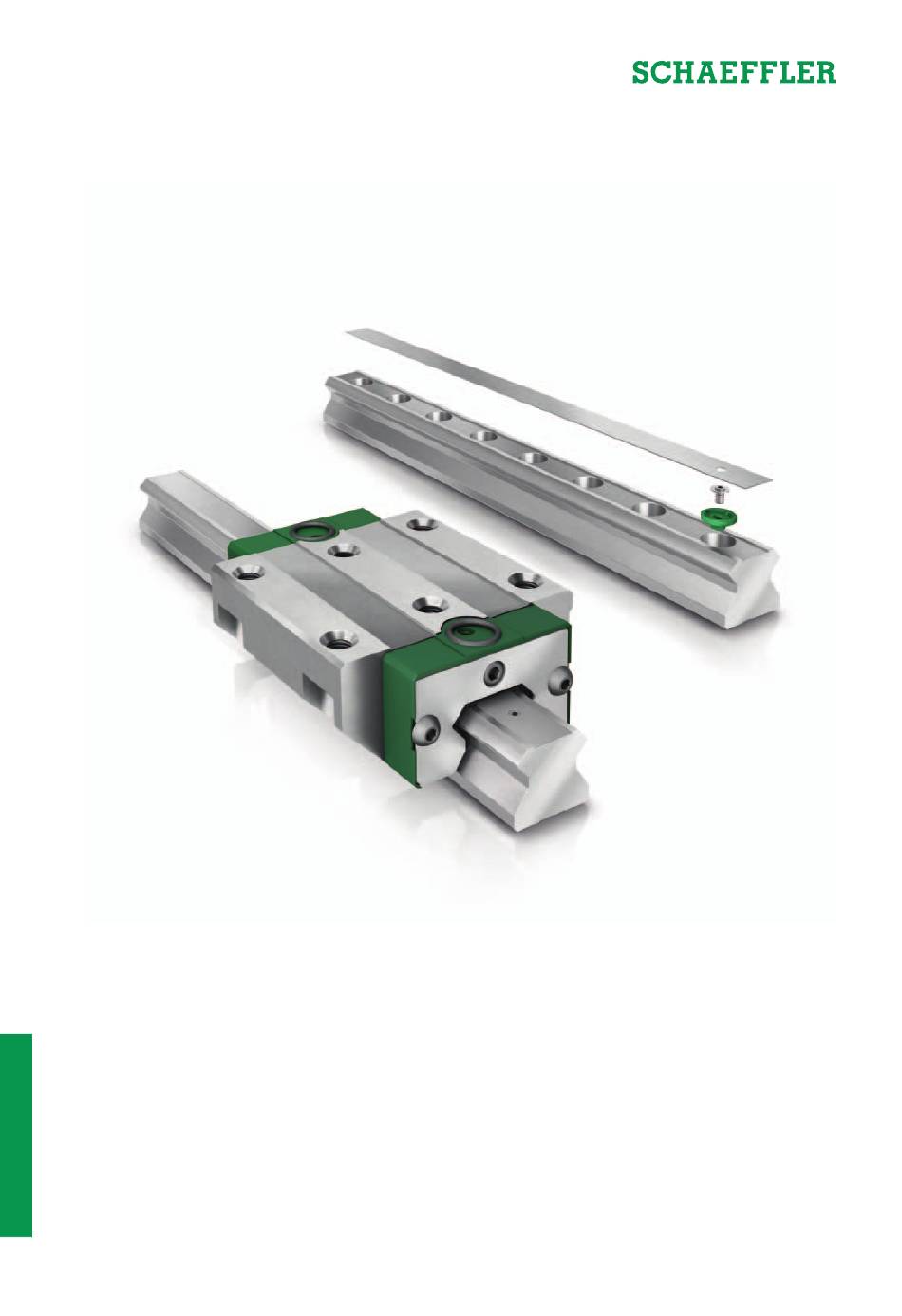

- Page 1 Covering Strip ADE Mounting manual...
- Page 3 Covering strip ADE About the mounting manual This manual applies to the covering strip ADE. Covering strip must only be fitted in accordance with the manual. Symbols The warning and hazard symbols are defined in accordance with ANSI Z535.6-2006. ...
- Page 4 When replacing carriages or guideways (due to repair or crash), take into consideration that older carriages used in combination with covering strip ADE must be retrofitted with the corresponding end wipers featuring a stepped sealing lip. The required sealing elements KIT..-OS for retrofitting to the carriages can be ordered ...
- Page 5 MON 46 https://www.schaeffler.de/std/1F56 ■ Further information KIT for seal retrofit by the customer: – example RUE: KIT.RWU..-E-A-OS – example KUSE: KIT.KWSE..-A-OS – example KUVE: KIT.KWVE..-B-OS ■ for further KITs, see Catalogue PF 1, Monorail Guidance Systems. Schaeffler Technologies MON 98...
- Page 6 Covering strip ADE Hole patterns of guideway and Hole patterns and designations of the guideway and covering strip ADE must be observed during fitting. Guideways that are suit- covering strip ADE able for covering strip ADE are marked with a laser.
- Page 7 Mounting Check the functional capability of MSATZ.ADE prior to fitting and replace with a new mounting set if necessary. Should it be necessary to remove the carriage from the guideway: ■ Observe separate fitting manuals for the mounting and dismounting of carriages.
- Page 8 If necessary, slide the covering strip through underneath the carriage. Align covering strip ADE axially, sliding and centring the strip perforation over mounting set MSATZ.ADE. Fix the covering strip by unscrewing the retaining screw with an Allen key (anticlockwise). Tightening torque 0,5 Nm.
- Page 9 Multi-piece guideway In the case of the multi-piece guideway, the covering strip ADE is delivered in the packaging, together with the guideway, in the form of a coil. Figure 7 Delivery of a multi-piece guideway If carriages are included in the scope of delivery, they will be located on the guideway in the delivered condition.
- Page 10 If necessary, slide the covering strip through underneath the carriage. Align covering strip ADE axially, sliding and centring the strip perforation over mounting set MSATZ.ADE. CAUTION Risk of injury from protruding covering strip. Adjust the covering strip to the length of the guideways immediately after alignment.
- Page 11 150 mm. Secure the coil with plastic strip. 4 mm Retaining ring Retaining screw, screwed in Covering strip ADE Fixing screw in the guideway Allen key Figure 8 Removable covering strip Reusing the covering strip...
- Page 12 Germany We reserve the right to make technical Internet www.schaeffler.de/en changes. E-mail info.industrialautomation@schaeffler.com In Germany: © Schaeffler Technologies AG & Co. KG Phone 0180 5003872 Issued: 2020, October 0180 5003873 This publication or parts thereof may not From other countries: be reproduced without our permission.
