LS Smart I/O Datasheet

DATA SHEET
LS Programmable Logic Controller
Pnet(Profibus-DP) I/F Module
GPL-TR2B
Smart I/O
GPL-TR4B
GPL-DT4B
GPL-D22C
GPL-D24C
GPL-DT4C
GPL-TR2C
GPL-TR4C
GPL-RY2C
- When using LSIS equipment, thoroughly read this
datasheet and associated manuals introduced in this
datasheet. Also pay careful attention to safety and handle
the module properly.
- Store this datasheet in a safe place so that you can take it
out and read it whenever necessary.
• HEAD OFFICE
LS Tower, 127, LS-ro, Dongan-gu, Anyang-si,Gyeonggi-do, 431-848, Korea
Tel: 82-2-2034-4870 Fax: (82-2)2034-4648 e-mail: cshwang@lsis.com
• LSIS(ME) FZE _ Dubai, U.A.E.
Tel: 971-4-886-5360 Fax: 971-4-886-5361 e-mail: jungyongl@lsis.com
• LSIS Tokyo Office _ Tokyo, Japan
Tel: 81-3-3582-9128 Fax: 81-3-3582-2667 e-mail: jschuna@lsis.com
• LSIS Shanghai Office _ Shanghai, China
Tel: 86-21-5237-9977(609) Fax: 89-21-5237-7189 e-mail: liyong@lsis.com.cn
• LSIS Beijing Office _ Beijing, China
Tel: 86-10-5825-6027(666) Fax: 86-10-5825-6028 e-mail: xunmj@lsis.com.cn
• LSIS Guangzhou Office _ Guangzhou, China
Tel: 86-20-8328-6754 Fax: 86-20-8326-6287 e-mail: chenxs@lsis.com.cn
• LSIS Chengdu Office _ Chengdu, China
Tel: 86-20-8328-6754 Fax: 86-20-8326-6287 e-mail: comysb@lsis.com
• LSIS Qingdao Office _ Qingdao, China
Tel: 86-532-8501-6068 Fax: 86-532-8501-6057 e-mail: wangzy@lsis.com.cn
• LSIS Europe B.V., Netherlands
Tel: +31 (0)20 654 1420 Fax: +31(0)20 654 1429 e-mail: junshickp@lsis.com
• Homepage:
http://www.lsis.com
LS constantly endeavors to improve our products so that information in this
datasheet is subject to change without notice
.
The date of issue: 2013. 11
10310000448 Ver 3.2

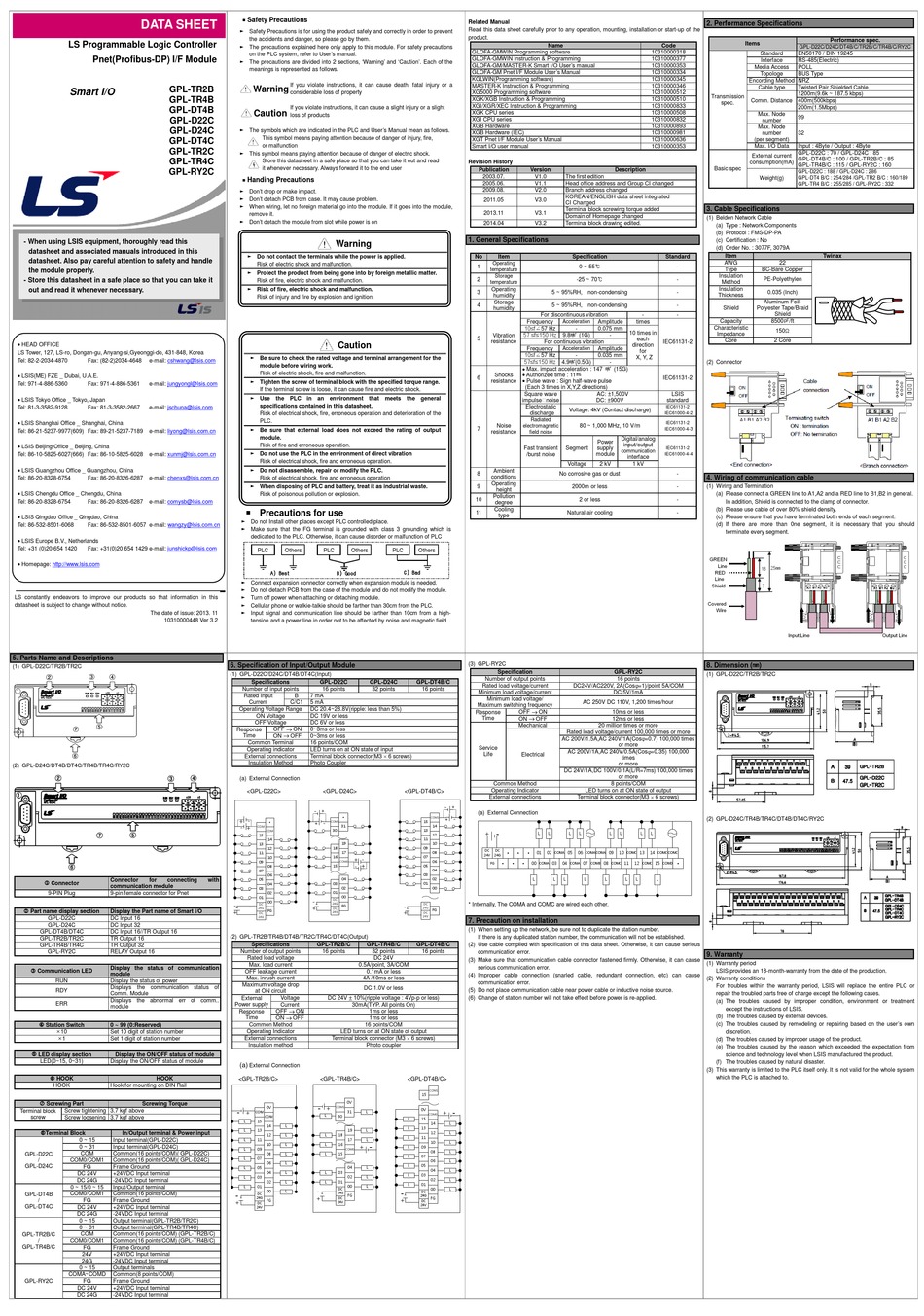

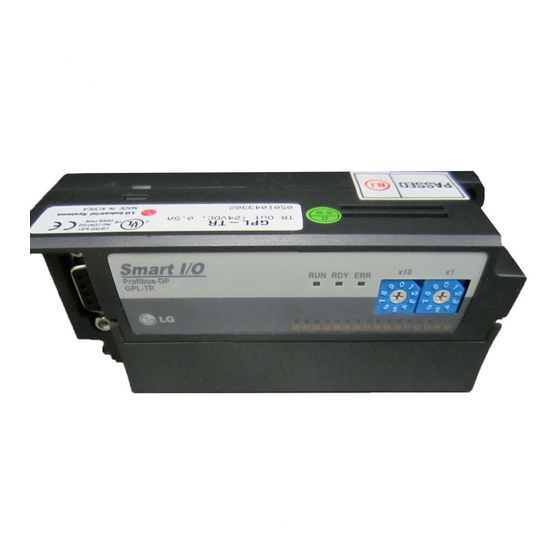

5. Parts Name and Descriptions
