convenience concepts Designs2go Landon 203145BL Assembly Instructions

End table

Download this manual

Assembly instructions

We have designed our furniture with you,the customer in mind.Our clear,easy to follow

step by step instructions will guide you through the project from start to finish.

Feel confident that this will be a fun and rewarding project. The final product will be a quality piece of

furniture that will go together smoothly and give years of enjoyment.

　　Please do not return to the store

　　Broken or missing Hardware?

　　Need help with Assembly?

STOP

　　If you have any questions just call or email us

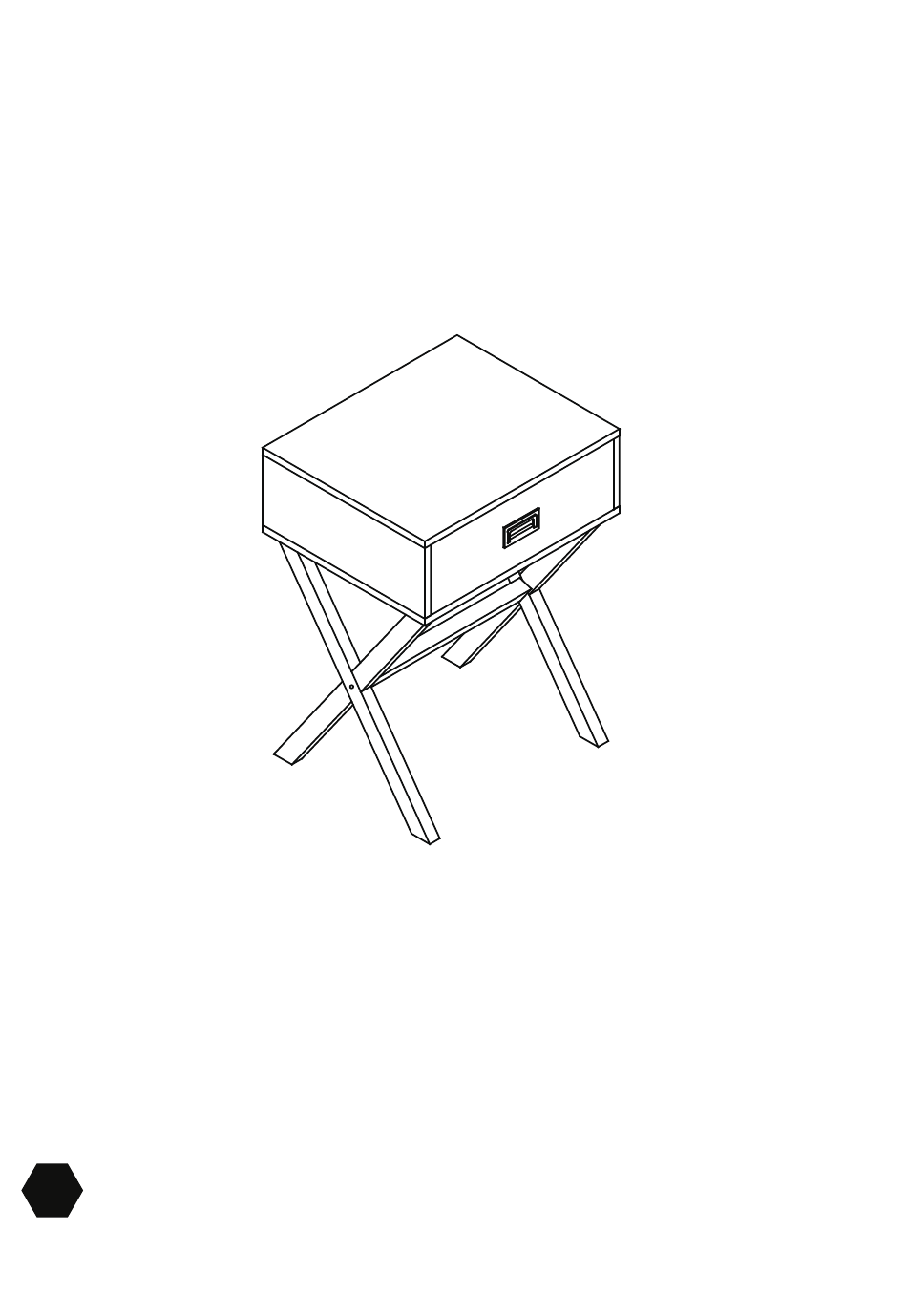

End Table

Need help?

Do you have a question about the Designs2go Landon 203145BL and is the answer not in the manual?

Page 1 End Table Assembly instructions We have designed our furniture with you,the customer in mind.Our clear,easy to follow step by step instructions will guide you through the project from start to finish. Feel confident that this will be a fun and rewarding project. The final product will be a quality piece of furniture that will go together smoothly and give years of enjoyment.
Page 2 11 x1 10 x1 12 x1 14 x2 13 x2 B x12 C x8 D x6 Assembling the unit with cams and wood dowels. Gently screw cam Insert cam lock with bolt into the arrow pointing Toward . hole threaded anchor. Screw the cam lock gently into locked position.
Page 3 Step 1 Note: Barrel nut (F) threads must face holes. 1 Loosely connect legs 13 to 14 Attach leg assemblies to support bar 6 using dowels (L ) and screws(G). Attach support bars 7 to assembly using bolts (E）and Barrel nuts（F). Step 2 Step 3 1.Attach side rails(I) and (J) to panels 3 and 4 ,respectively,using screws(M) with rollers on...
Page 4 Step 4 Step 5 1 Attach panels 9 and 10 to panel 11 with screws (C) as shown. Attach leg assembly to panel using Cam bolts (A) of panels 9 , 2 Slide bottom panel 12 into slots and Cam locks (B),as shown. and 11 2.Attach pads(H) to bottom of legs 13 and 14 3.Attach handle (O) to drawer front...
