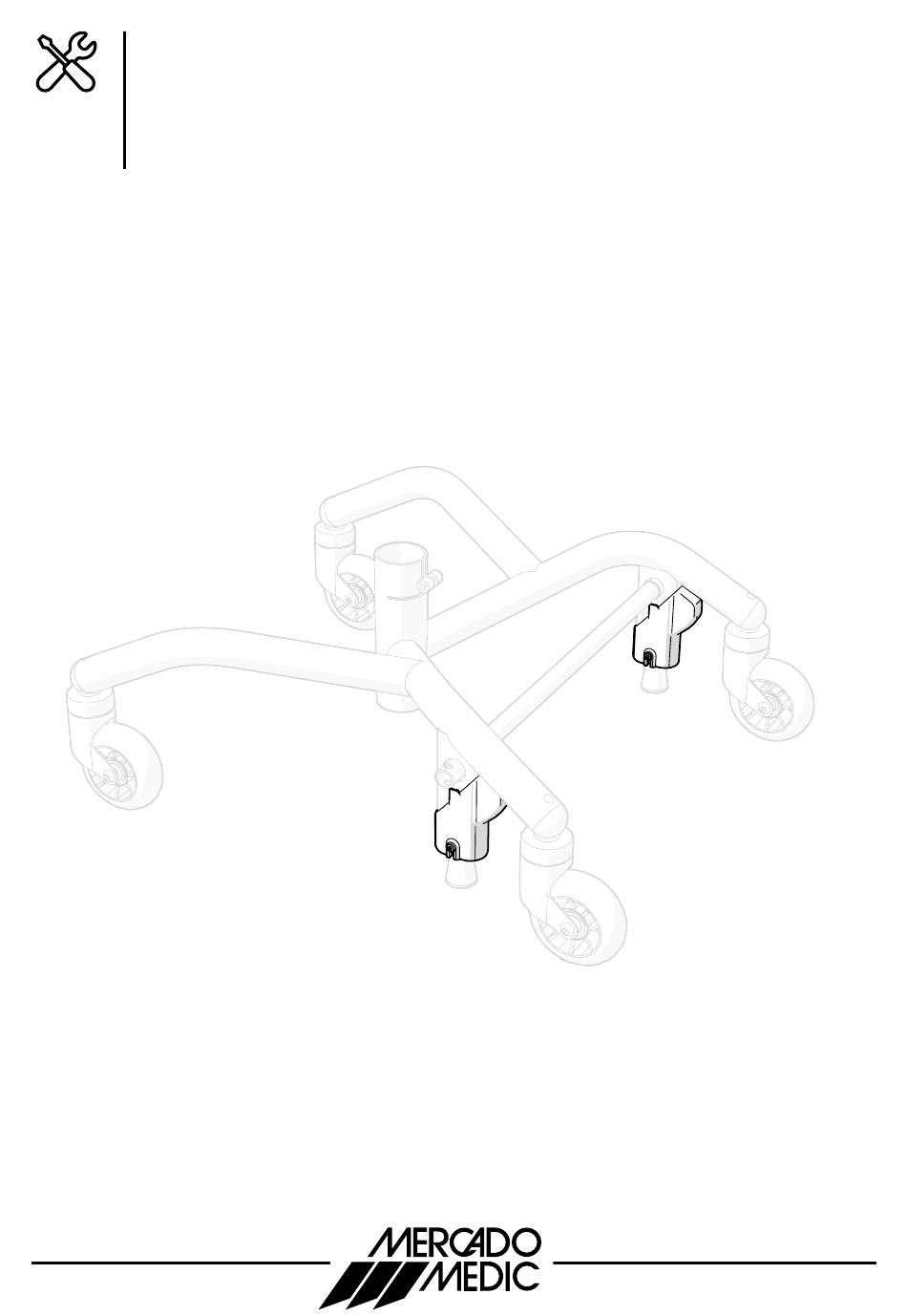

- Page 1 PINCH PROTECTION FOR REAL 9000 PLUS BASE Translation of original assembly instruction Dok.nr: 20-07045 Skapad: 2020-05-01 Instructions for assembly & handling Rev: 01 Uppdaterad: 2020-05-01...
-
Page 2: Table Of Contents
Pinch protection for REAL 9000 PLUS base Table of content 1. Item list ......3 2. -
Page 3: Item List
Pinch protection for REAL 9000 PLUS base Item list 1. Item list 805192 Pinch protection R+L kit f brake cam f PLUS base black 805193 Pinch protection R+L kit f brake cam f PLUS base white 2. Warnings Warning! Risk of crushing between brake cam and base during assembly of the pinch protection. -
Page 4: Assembly Instructions
Pinch protection for REAL 9000 PLUS base Assembly instructions 3. Assembly instructions The pinch protection should be retrofitted when it is missing on an existing base. It is especially important to have the pinch protection installed a base with backward brake. Most of the instructions shown will be for a base with backward brake, but the instructions also apply for bases with forward brake. -
Page 5: Apply The Base's Brake
Pinch protection for REAL 9000 PLUS base Assembly instructions 3.2. Apply the base’s brake Ensure that the plastic bushing does not fall out; see the information panel below. Note the risk of crushing between brake cam and base. 20-07045-01... -
Page 6: Install The Pinch Protection
Pinch protection for REAL 9000 PLUS base Assembly instructions 3.3. Install the pinch protection Ensure that the pinch protection covers the opening for the brake cam in the base. The orientation for installing the pinch protection differs depending on Note the risk of crushing whether the base has forward brake or backward brake. -
Page 7: Tighten The Screws
Pinch protection for REAL 9000 PLUS base Assembly instructions 3.5. Tighten the screws Ensure that the plastic bushing is in position before tightening the screws; see step 3.3. 3.6. Check Now verify that the pinch protection is securely fastened and that the brake cam is covered by the pinch protection. -
Page 8: Care Instructions
Pinch protection for REAL 9000 PLUS base Care instructions 4. Care instructions No specific care instructions for this item. Follow the instructions in the manual. 5. Destruction and recycling 1. Sort as metal 2. Sort as plastic 20-07045-01... - Page 9 Pinch protection for REAL 9000 PLUS base Contact details Mercado Medic AB Mercado Medic AB +46 (0)8-555 143 00 www.mercado.se Tryffelslingan 14 SE-181 57 Lidingö Mon-Fri 08.00-16.30 (CET/CEST) info@mercado.se...
