Asuka Wardrobe
Stock numbers 803/13907
Thank you for purchasing this Asuka wardrobe, please read this instructions carefully
before use to ensure safe and satisfactory operation of this product.
Heavy,
Necessary tools
This item is
Pre-assembly preparation
Please ensure instructions are read in full before attempting to assemble this product
Please check the pack contents before attempting to assemble this product. A full
checklist of components is given in this leaflet. If any components are missing, please
contact the retailer from whom you bought this product.
This product is HEAVY, it should be assembled as near as possible to the point of
use. TAKE CARE WHEN LIFTING to avoid personal injury and (or) damage to
the product.
This product takes approximately 40 MINUTES to assemble with 2 PEOPLE.
The fittings pack contains SMALL ITEMS which should be KEPT AWAY FROM
YOUNG CHILDREN.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Asuka Wardrobe 803/13907 and is the answer not in the manual?

Questions and answers

Summary of Contents for John Lewis Asuka Wardrobe 803/13907

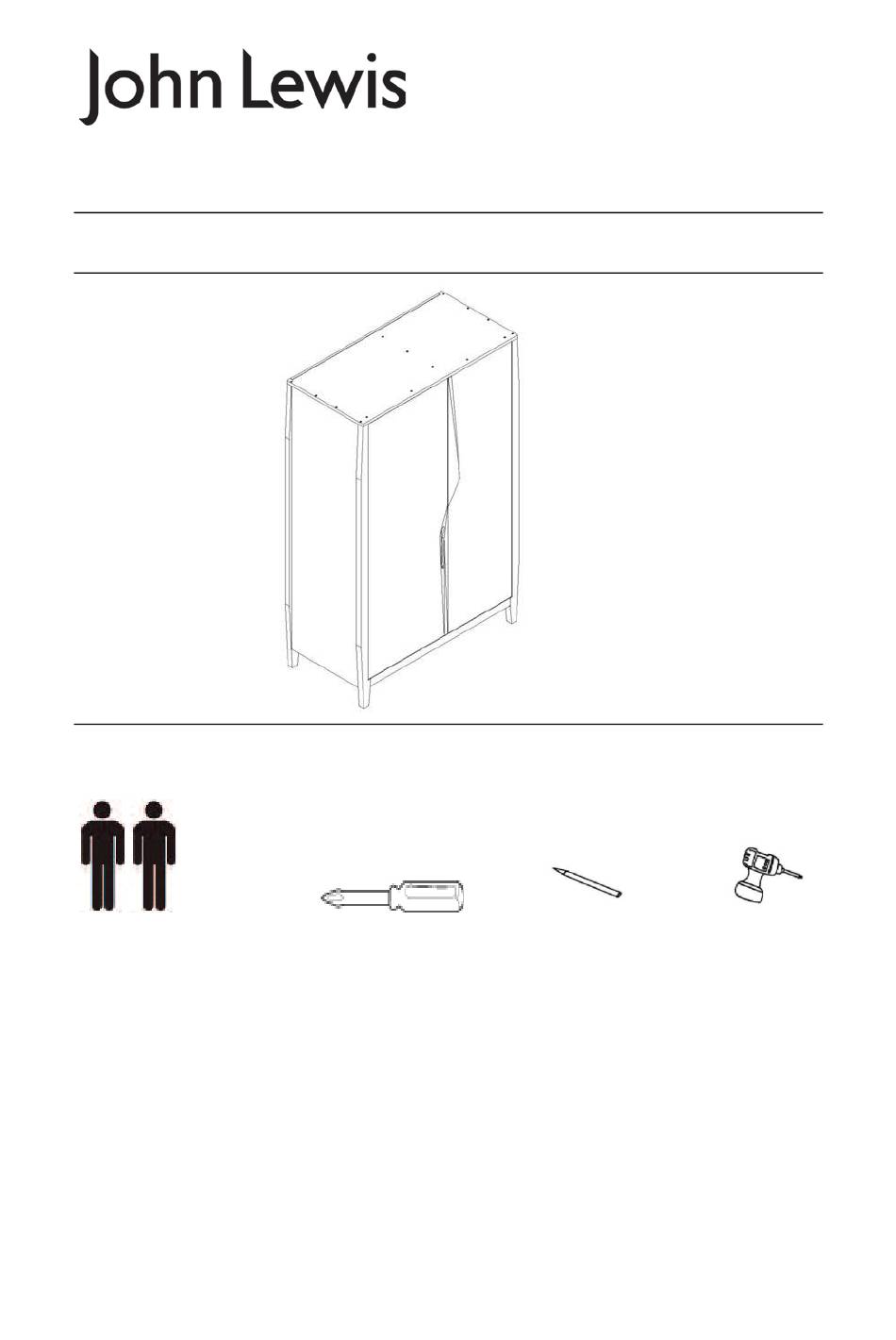

  • Page 1 Asuka Wardrobe Stock numbers 803/13907 Thank you for purchasing this Asuka wardrobe, please read this instructions carefully before use to ensure safe and satisfactory operation of this product. Heavy, Necessary tools This item is Pre-assembly preparation Please ensure instructions are read in full before attempting to assemble this product Please check the pack contents before attempting to assemble this product.
  • Page 2 Fittings and parts checklist Door frame x 1 Side panel left x 1 15mm Screws x 20 Side panel right x 1 Middle panel x 1 Hanging rail support Top panel x 1 Bottom panel x 1 x 2 & strap x 1 Brackets Back panel x 1 Shelf panel x 1...
  • Page 3 Step by step assembly instructions Using the screw C to fix the hanging rail support D to the inside of right and left panels and the middle panel as shown below. Using the screw A , fix the bottom 6 to the side panels 2,3 as shown below, then attach the middle panel 4 to the bottom panel 6 using screw A.
  • Page 4 Attach the door frame 1 onto the side panels 2,3 and middle panel 4, using 30mm screw A. Then fix the bottom 6 onto the side panels , middle panel and door frame, using the 30mm screw A.
  • Page 5 Attach the Top panel 5 onto the side panels and middle panel using the 30mm screws. Attach the Back panel 7 to the rear of wardrobe using the 30mm screws A.
  • Page 6 Push the 4 shelf support B into the pre drilled holes , place the shelf 8 onto the support and using screw C, screw the shelf onto it’s supports as shown below, put the hanging rail G and H onto their support D. Attach the wall bracket using screws suitable for your type of wall, see wall fixing above.
  • Page 7 Screw one of the brackets on to the top of the wardrobe in the middle at the back, using the short screws provided, position the wardrobe against the wall where you want it to go, place the second bracket onto the wall above the one fixed to the wardrobe and mark where the holes come on the wall, Move the wardrobe away from the wall.
  • Page 8 If the wardrobe is not level on your floor, use the wedges provided, snap them off, so they do not protrude out from the wardrobe legs, you can also snap them lengthways. Check the doors are aligned correctly, If necessary adjust the door hinges as show below.
  • Page 9: Care And Maintenance

    No liability will be accepted for damage or injury caused by incorrectly installed furniture. PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE John Lewis Partnership 171 Victoria Street London SW1E 5NN www. Johnlewis.com...
