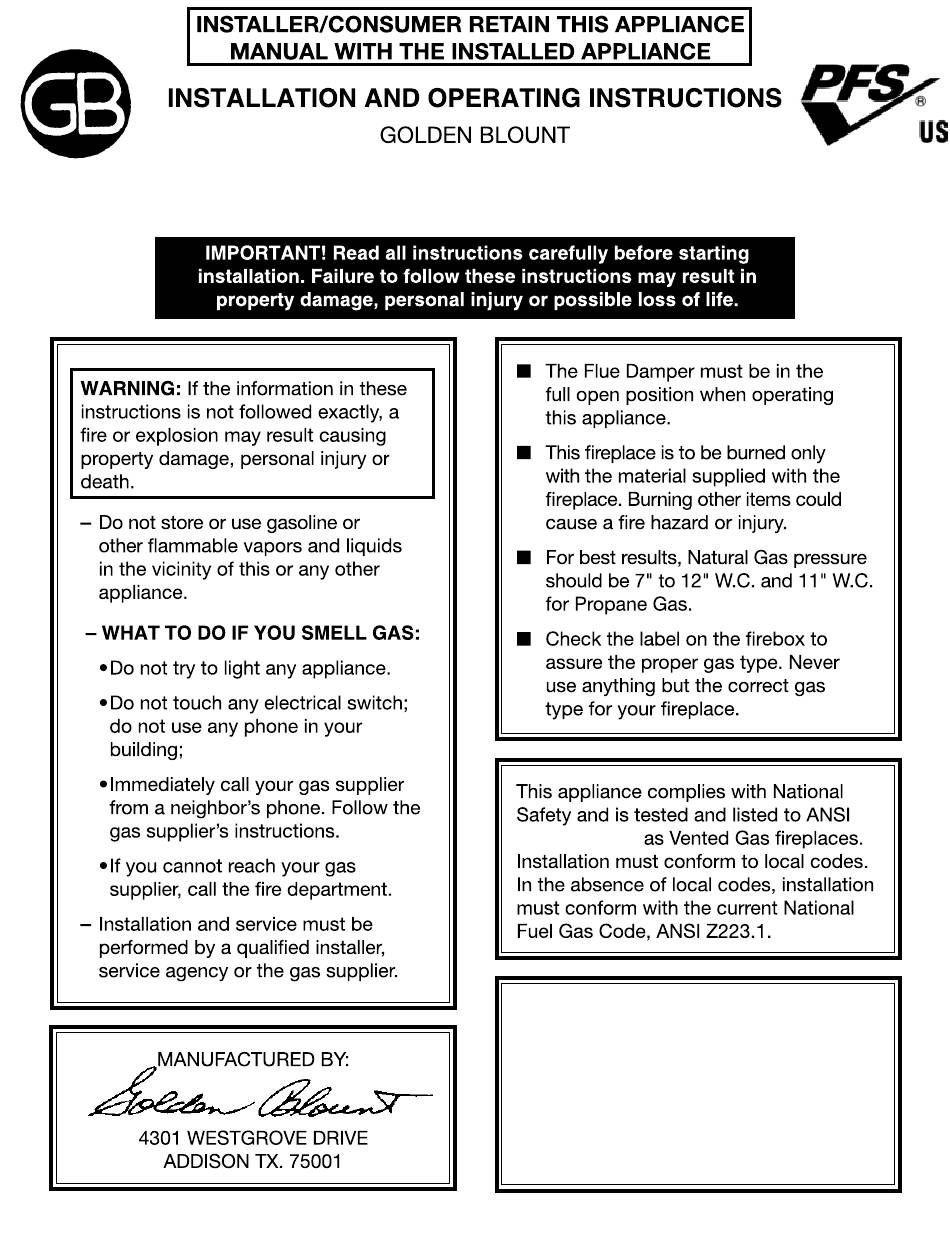

- Page 1 MODEL LFP9618 POWER VENTED TOP VENT GAS FIREPLACE PFS APPROVED FOR NATURAL GAS OR PROPANE GAS Z21.50 - 2014 WARNING: THIS FIREPLACE MUST BE INSTALLED USING AN APPROVED POWER VENT FAN. SEE "INSTALLING CHIMNEY/VENT SYSTEMS" SECTION OF THIS MANUAL FOR APPROVED FAN MODELS AND SPECIFICATIONS.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Section Layout Options ......................2 of Parts ..................... 3 Building Codes and Safety Standards ................4 Piping and Gas Pressure Requirements ............... 5 Installation Instructions ....................6-9 Glass Installation / Flame Stabilizer Installation...........10-11 Operating Guidelines ....................12 Maintenance Instructions/Wiring Diagram............. 12-13 Lighting Instructions ....................14-15 Trouble Shooting .......................16-17 Replacement Parts ...................... -
Page 3: Of Parts
LFP9618 COMPONENT LOCATIONS LEFT RIGHT OUTSIDE AIR CONNECTIONS INTERIOR VIEW Damper Control Lever Pilot Assy/ Flame Sensor Right Outside Air Control Left Outside Air Control On/Off Switch Valve Access Door... -
Page 4: Building Codes And Safety Standards
Institute National Fuel Gas Code Z223.1 latest edition. GENERAL INFORMATION MODEL LFP9618 IS A TOP VENTED GAS FIREPLACE. IT IS DESIGNED TO BURN BY DRAWING COMBUSTION AIR FROM THE OUTSIDE AIR KIT THAT ATTACHES TO THE SIDE (SIDES) OF THE FIREPLACE. -
Page 5: Piping And Gas Pressure Requirements
GAS PIPING AND GAS PRESSURE REQUIREMENTS All gas piping must be installed to comply with local codes, or, in the absence of local codes, with the latest edition of the National Fuel Gas Code ANSI Z223.1. Unions in gas lines shall be of ground joint type. Compounds used on threaded joints of gas piping must be resistant to the action of liquefied petroleum gas. Gas piping must be of sufficient size to provide a minimum natural gas pressure at the appliance of 7" water column or 11" for L.P. gases for the purpose of input adjustment. The maximum inlet gas pressure to the unit must not exceed 10" for natural gas, and 13" for L.P. gases. If this unit is to be supplied with L.P. gas (bottled propane) the tank or bottle supplying the gas must have a regulator that reduces the gas pressure to between 11 and 13 inches water column. The control will not operate with gas line pressure directly from the tank and may leak gas due to this excessive pressure. DANGER: OPERATION OF THIS UNIT ON L.P. GAS WITHOUT AN APPROVED REGULATOR AT THE SUPPLY CONTAINER WILL LEAD TO GAS LEAKS AT THE CONTROL WITH POSSIBLE FIRE OR EXPLOSION. Include a manual shut-off valve and union in the line so the control or heater may be disconnected for servicing. Include a drip leg and a plugged 1/8" N.P.T. tapping into the line also. The tapping must be accessible for the test gauge connection immediately upstream of the gas supply connection to the unit. Use a soap and water solution or liquid gas leak detector to coat each joint in the piping system and look for bubbles which indicate gas leaks. Repair all gas leaks. CAUTION: THE APPLIANCE AND ITS APPLIANCE MAIN GAS VALVE MUST BE DISCONNECTED FROM THE GAS SUPPLY PIPING SYSTEM DURING ANY PRESSURE TESTING OF THAT SYSTEM AT TEST PRESSURES IN EXCESS OF 1/2 PSI (3.5 KPA). -
Page 6: Installation Instructions
Model LFP9618 (with the use of the Outside Air Kit) can be installed in a bedroom (in the United States) which has a total volume of unconfined space appropriate to the particular installation. - Page 7 104 3/4" Installing Chimney/Vent System Model LFP9618 is approved to be used with 10" B-Type Gas Vent. The Fireplace must be installed with an Enervex Model RS 14 Exhaust Fan, PDS-1 or ADC-100 Draft Switch that is connected to this Fireplace.
- Page 8 Maximum 45 Deg. Elbows ----4 ea. Maximum 90 Deg. Elbow ------3 ea. IF YOUR DESIRED INSTALLATION DOES NOT MEET THE ABOVE REQUIREMENTS, CONTACT GOLDEN BLOUNT, INC. TO VERIFY IF DESIRED INSTALLATION CAN BE CONGIFURED WITH OTHER APPROVED POWER VENT EXHAUST FAN. 1-800-833-1134 WARNING: This gas appliance must not be connected to a chimney flue serving a separate solid-fuel burning appliance.
- Page 9 Installing Outside Air Kit Model LFP9618 is supplied with the component parts for outside combustion with the exception of the 4" duct. It is recommended that the outsid e air system be used whenever possible. Connect 4" Class-1 Flex duct or Metal Vent to duct collars on side of firebox, run duct to fresh air source and terminate using duct termination caps.
- Page 10 GLASS INSTALLATION (optional) MODEL LFP9618 can be used with approved Fireglass to enhance the overall appearance. Fill the burner tray below and up to the top of the burner ports. Do not cover burner ports. Distribute additional glass around front, sides and rear of burner tray, covering floor area.
-
Page 11: Glass Installation / Flame Stabilizer Installation
GLASS FLAME STABILIZER INSTALLATION ALL LFP MODELS ARE SUPPLIED WITH A GLASS FLAME STABILIZER THAT HELPS BURNER FLAME MAINTAIN A VERTICAL POSITION. LOCATE GLASS FLAME STABILIZER CLIPS AND INSERT GLASS FLAME STABILIZER INTO THEM. CENTER GLASS FLAME STABILIZER SO THAT THERE IS SAME CLEARANCE ON LEFT AND RIGHT SIDES. -
Page 12: Operating Guidelines
OPERATING GUIDELINES Upon completing the gas line connection, a small amount of air will be in the lines. When lighting the pilot light, it will take a few minutes for the lines to purge themselves of this air. Once the purging is complete, the pilot and burner will light and operate as indicated in the instruction manual. - Page 13 WIRING DIAGRAM 6003(3V)Model see below * Different valve may use pin connector. 6003V/6K Model...
-
Page 14: Lighting Instructions
FOR YOUR SAFETY READ BEFORE LIGHTING WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE. A. This appliance is equipped with an ignition device which automatically lights the pilot. - Page 15 TO TURN OFF GAS TO APPLIANCE TO TURN OFF GAS TO APPLIANCE 1. Turn ON/OFF rocker switch to “OFF” 2. Remove batteries from appliance if service is to be performed. LPG (PROPANE) WARNING THE FOLLOWING WARNING APPLIES TO INSTALLATIONS USING L.P. (PROPANE GAS): WARNING: To avoid possible injury, and explosion, please read and follow these precautions and all instructions of this appliance before operating.
-
Page 16: Trouble Shooting
Enervex Fan not operating Check to see if Enervex and connecting Draft Fan is running and Draft Switch to operate Switch is closing Fireplace Fireplace. circuit. -
Page 18: Replacement Parts
REPLACEMENT PARTS THE FOLLOWING REPLACEMENT PARTS ARE AVAILABLE FROM YOUR GOLDEN BLOUNT DEALER 11 12... - Page 19 , Inc.
