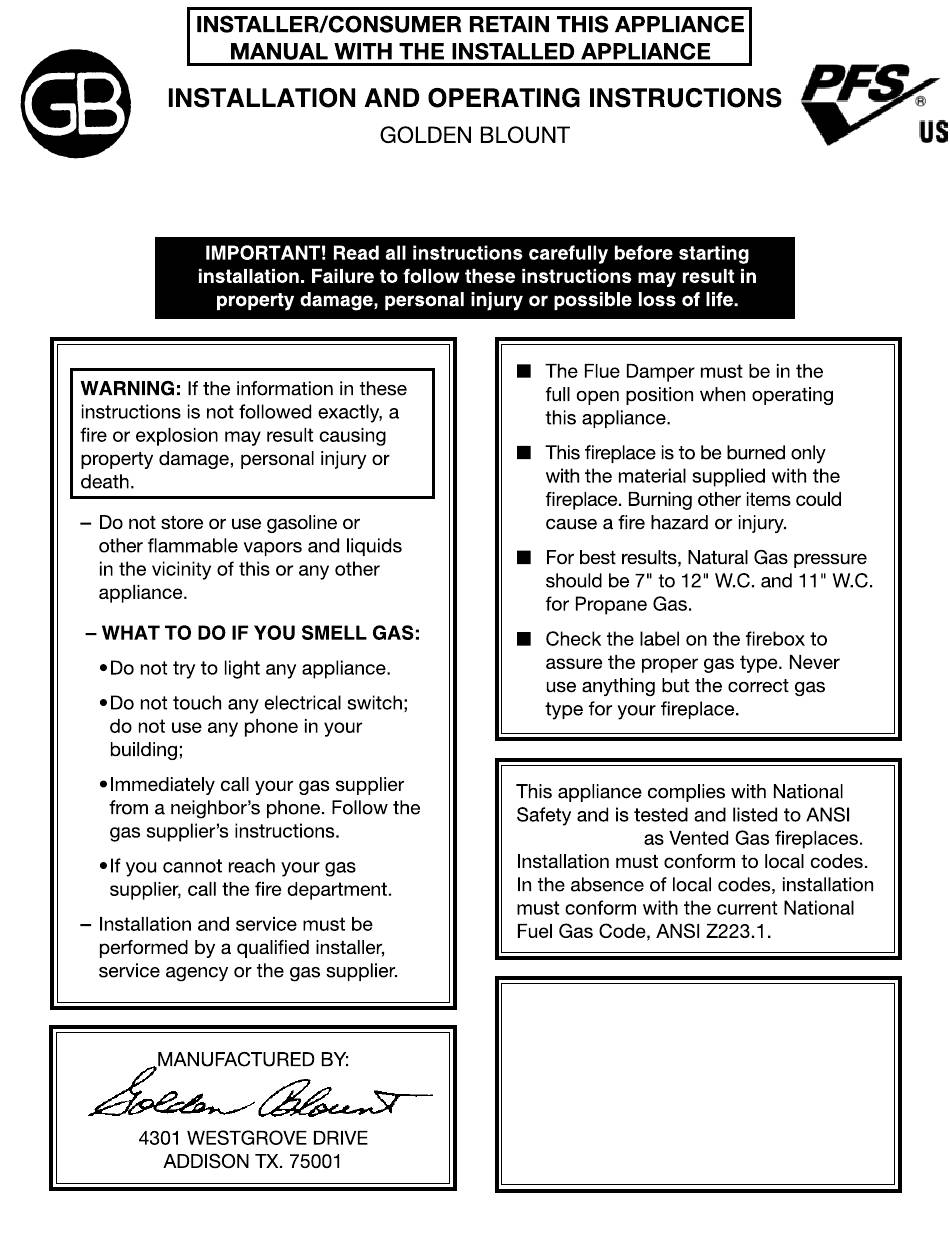

MODELS LFP4218/LFP6018/LFP7218 TOP VENT GAS FIREPLACE
PFS APPROVED FOR NATURAL GAS OR PROPANE GAS
f i r e - p a r t s . c o m
Z21.50 - 2014
If your plans do not allow for the venting system as outlined
previously in the "installing chimney/vent system" section, you may
contact ENERVEX, Inc. (formerly EXHAUSTO) at 800-255-2923.
They will design an approved venting system to suit your venting
needs. These power vented systems follow the standards and codes
as outlined under the NFPA 54/ANSI Z223.1 Nation Fuel Gas Code.
Please check with the local authority having jurisdiction in your area.
The engineers at ENERVEX are familiar with Golden Blount
fireplaces and their systems will allow you to minimize the amount of
vent pipe exposed outside of your home. Fireplaces may also be
horizontally vented with these systems.
10/17
Advertisement
Table of Contents
Related Manuals for Golden Blount LFP7218
Summary of Contents for Golden Blount LFP7218
- Page 1 NFPA 54/ANSI Z223.1 Nation Fuel Gas Code. Please check with the local authority having jurisdiction in your area. The engineers at ENERVEX are familiar with Golden Blount fireplaces and their systems will allow you to minimize the amount of vent pipe exposed outside of your home.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Section Layout Options ........................ 2 of Parts ....................3-4 Building Codes and Safety Standards ................5 Piping and Gas Pressure Requirements ................. 6 Installation Instructions ....................7-10 Glass Installation / Flame Stabilizer Installation............10-12 Operating Guidelines ....................12 Maintenance Instructions/Wiring Diagram..............13 Lighting Instructions ....................14-15 f i r e - p a r t s . -
Page 3: Of Parts
LFP4218 TOP-vENT FIREPLACE Outside Air Connection f i r e - p a r t s . c o m INTERIOR vIEW Stand Off Stand Off Damper Control Lever Burner Pilot Assy/ Flame Sensor On/Off Switch Outside Air Control Knob valve Access Door... - Page 4 LFP6018/7218 TOP-VENT FIREPLACES LEFT RIGHT f i r e - p a r t s . c o m OUTSIDE AIR CONNECTIONS INTERIOR VIEW Damper Control Lever Pilot Assy/ Flame Sensor Right Outside Air Control Left Outside Air Control On/Off Switch Valve Access Door...
-
Page 5: Building Codes And Safety Standards
BUILDING CODES AND SAFETY STANDARDS The design of this FIREPLACE has been tested and is listed with PFS CORPORATION in accordance with THE AMERICAN NATIONAL STANDARDS INSTITUTE — ANSI Z21.50-2014. This manual serves only as a basic guideline for installation and use of this and gas piping. -
Page 6: Piping And Gas Pressure Requirements
GAS PIPING AND GAS PRESSURE REQUIREMENTS All gas piping must be installed to comply with local codes, or, in the absence of local codes, with the latest edition of the National Fuel Gas Code ANSI Z223.1. Unions in gas lines shall be of ground joint type. Compounds used on threaded joints of gas piping must be resistant to the action of liquefied petroleum gas. Gas piping must be of sufficient size to provide a minimum natural gas pressure at the appliance of 7" water column or 11" for L.P. gases for the purpose of input adjustment. The maximum inlet gas pressure to the unit must not exceed 10" for natural gas, and 13" for L.P. gases. If this unit is to be supplied with L.P. gas (bottled propane) the tank or bottle supplying the gas must have a regulator that reduces the gas pressure to between 11 and 13 inches water column. The control will not operate with gas line pressure directly from the tank and may leak gas due to this excessive pressure. DANGER: OPERATION OF THIS UNIT ON L.P. GAS WITHOUT AN APPROVED REGULATOR AT THE SUPPLY CONTAINER WILL LEAD TO GAS LEAKS AT THE CONTROL WITH POSSIBLE FIRE OR EXPLOSION. Include a manual shut-off valve and union in the line so the control or heater may be f i r e - p a r t s . c o m disconnected for servicing. Include a drip leg and a plugged 1/8" N.P.T. tapping into the line also. The tapping must be accessible for the test gauge connection immediately upstream of the gas supply connection to the unit. Use a soap and water solution or liquid gas leak detector to coat each joint in the piping system and look for bubbles which indicate gas leaks. Repair all gas leaks. CAUTION: THE APPLIANCE AND ITS APPLIANCE MAIN GAS VALVE MUST BE DISCONNECTED FROM THE GAS SUPPLY PIPING SYSTEM DURING ANY PRESSURE TESTING OF THAT SYSTEM AT TEST PRESSURES IN EXCESS OF... -
Page 7: Installation Instructions
INSTALLATION INSTRUCTIONS In planning the installation for the it is necessary to determine where the unit is to be installed, the routing of the B-type vent system, and whether optional accessories are to be used gas supply piping should also be planned. Models LFP4218,6018 &... - Page 8 MINIMUM FRAMING DIMENSIONS PRIOR TO POSITIONING UNIT 11” VIEW LFP6018 75”W X 52”H X 24” D LFP7218 87"W X 52"H X 24" D FINISHED FRAMING DIMENSIONS WITH UNIT IN POSITION f i r e - p a r t s . c o m LFP6018 70”W X 32”H X 24”D...
- Page 9 10' Rule of Thumb indicates a shorter chimney height. Note: Installations which will not allow the 10' rule to be followed must be submitted to Golden Blount Inc. for approval. 1-800-833-1139.
-
Page 10: Glass Installation / Flame Stabilizer Installation
STUD HEADER Finishing the Wall FINISHED WALL Finish the wall with the material of your choice. Do not install a combustible mantle or other NON-COMBUSTIBLE SEAL JOINT combustible projection above the opening unless it is a minimum of 12 inches above top MANTLE opening. - Page 11 GLASS INSTALLATION CONT. Figure 11.1 f i r e - p a r t s . c o m GLASS FLAME STABILIZER INSTALLATION ALL LFP MODELS ARE SUPPLIED WITH A GLASS FLAME STABILIZER THAT HELPS BURNER FLAME MAINTAIN A VERTICAL POSITION. LOCATE GLASS FLAME STABILIZER CLIPS AND INSERT GLASS FLAME STABILIZER INTO BOTH.
-
Page 12: Operating Guidelines
GLASS FLAME STABILIZER INSTALLATION CONT. 3. GLASS FLAME STABILIZER SHOULD BE SEATED AGAINST FIREPLACE FLOOR AS SHOWN OPERATING GUIDELINES f i r e - p a r t s . c o m Upon completing the gas line connection, a small amount of air will be in the lines. When lighting the pilot light, it will take a few minutes for the lines to purge themselves of this air. -
Page 13: Maintenance Instructions/Wiring Diagram
MAINTENANCE INSTRUCTIONS IMPORTANT: THE APPLIANCE AREA MUST BE KEPT CLEAR AND FREE FROM COMBUSTIBLE MATERIALS, GASOLINE AND OTHER FLAMMABLE VAPORS AND LIQUIDS. Visually inspect pilot periodically. Brush or blow away any dust or linen accumulations. If pilot is plugged, disassembly may be required to remove any foreign material from or tubing. -
Page 14: Lighting Instructions
FOR YOUR SAFETY READ BEFORE LIGHTING WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE. A. This appliance is equipped with an ignition device which automatically lights the pilot. - Page 15 TO TURN OFF GAS TO APPLIANCE TO TURN OFF GAS TO APPLIANCE 1. Turn ON/OFF rocker switch to “OFF” 2. Remove batteries from appliance if service is to be performed. LPG (PROPANE) WARNING THE FOLLOWING WARNING APPLIES TO INSTALLATIONS USING L.P. (PROPANE GAS): WARNING: To avoid possible injury, and explosion, please read and follow these precautions and all instructions of this appliance before operating.
-
Page 16: Trouble Shooting
f i r e - p a r t s . c o m... - Page 17 f i r e - p a r t s . c o m...
-
Page 18: Replacement Parts
REPLACEMENT PARTS THE FOLLOWING REPLACEMENT PARTS ARE AVAILABLE FROM YOUR GOLDEN BLOUNT DEALER ITEM PART # DESCRIPTION STP-TV-127 Gas Valve - N/G STP-TV-128 Gas Valve - LP LFP-103 1/4” Pilot Gas Line LFP-104 3/8” Burner Gas Line (4218) LFP-104-6018 1/2” Burner Gas Line (6018... - Page 19 f i r e - p a r t s . c o m , Inc.
