3 INSTALLATION
3.1 SETUP THE HEADLIGHT TESTER
- The instrument is already assembled inside of the box
- Unscrew the bolts that fix the optical chamber in vertical position.
- Set the optical chamber in horizontal position and screw the bolts.

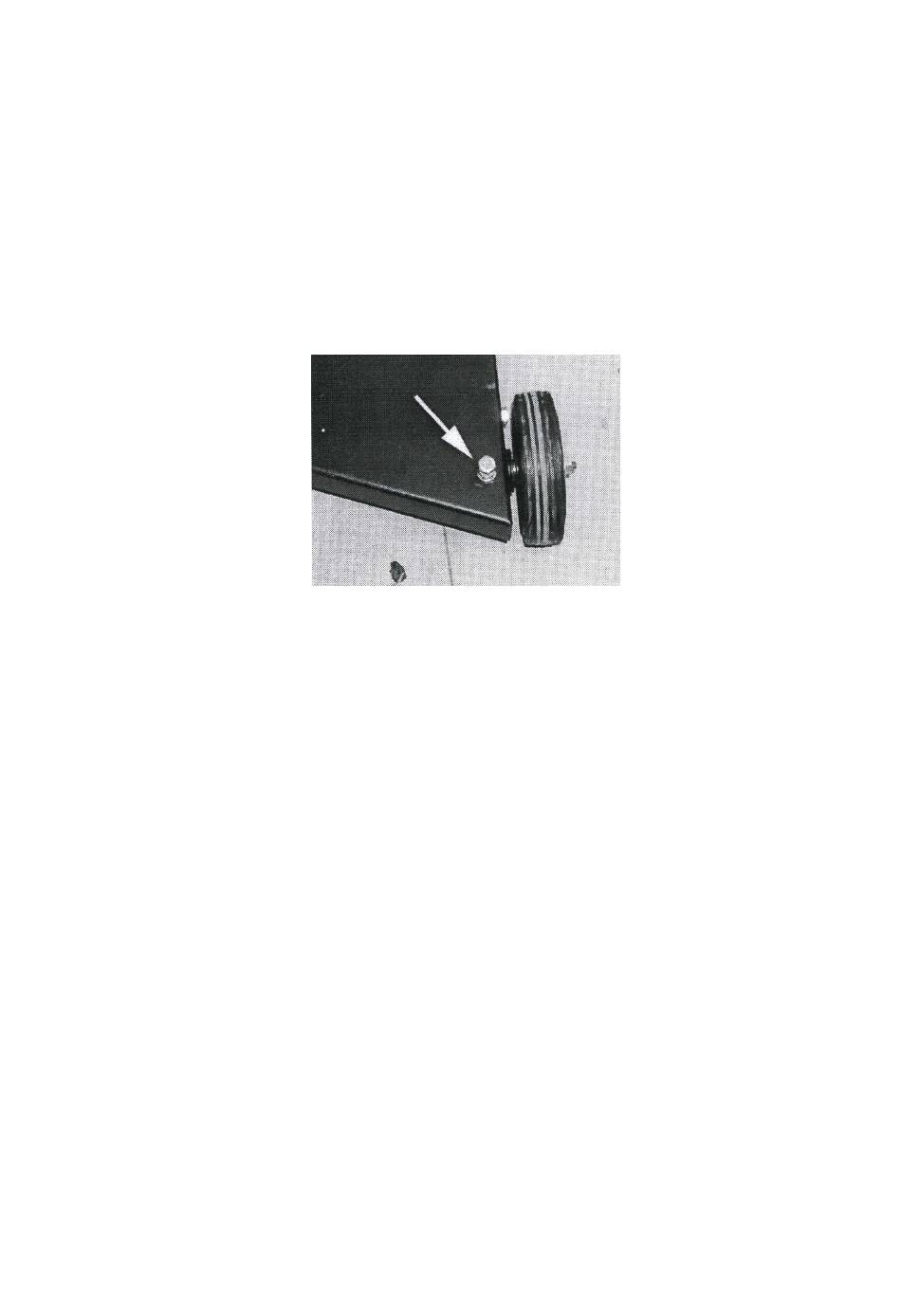

- Set the column in vertical position with the screw displaced on the base (See
under picture)
Set the optical chamber for a planar position, verify the spirit level inside the
-
optical chamber.
ASSEMBLAD S.r.l.
Campi Bisenzio - Florence - Italy - Tel. +39 055-890485
www.assemblad.com - E-mail: info@assemblad.com
Operation and maintenance manual
