SLOPE MODE

It is possible to set slopes with the Multicross 3D Brave. In order to do this, you
work with a blocked pendulum.
IMPORTANT:
Keep in mind that in this mode, the laser is no longer leveled automatically.

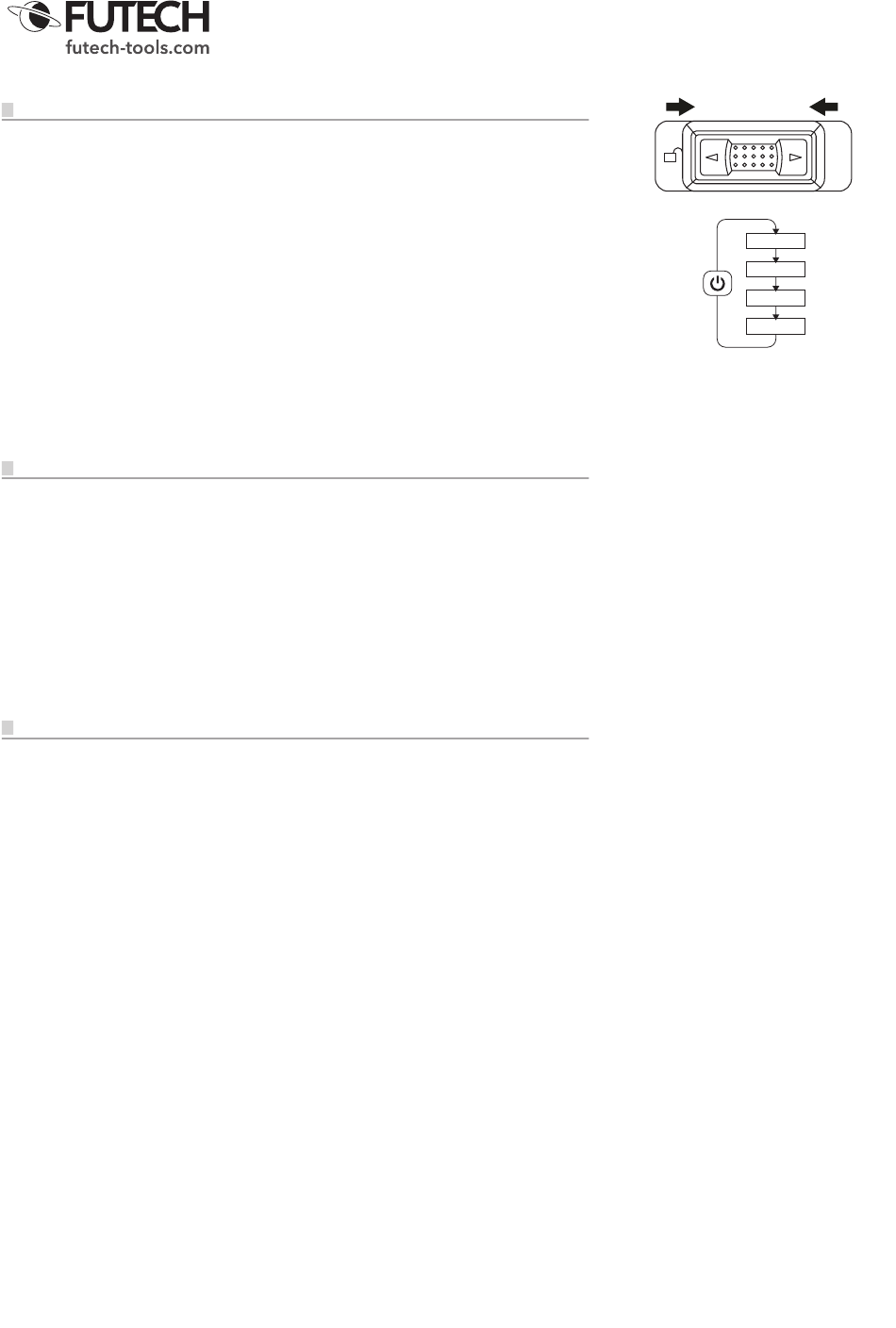

· Shift the On/Off-switch - Transportlock [4] to the center position (one steps).
The laser is switched on and the pendulum is still blocked. Only the horizontal
laserline is activated when turning on the device.
· You can switch on or off additional/other lines (horizontal and vertical) using the
Line selection button [7].
· Turn the laser device until it shows laser lines with the slope you need. (We rec-
ommend to use a tripod with tilting head for this application.

RECEIVER MODE

When the environment is very brightly lit or you want to work on a larger distance
(f.e. when working outside), you can use a receiver (not included).
· When the device is activated you can press the receiver button [8] to turn on the
receiver mode (or pulse mode). By activating this mode, the laserlight will be
a little less bright, because the laser light turns on and off very quickly at a fre-
quency of 10KHz (pulsate). Receivers are able to detect this pulsating laserlines.
The MC3D brave projects laserlines of 515nm (green) at 10KHz. Please check the
compatibility of your receiver.

MAINTENANCE

Repairs or services are not covered in this manual and should only be carried out
by qualified trained technicians.
Periodically, wipe the body with a dry cloth. Do not use abrasives or solvents on
this instrument.
For service, use only manufacturer's specified parts.
ON OFF
H
H + V1
V1 + V2
H + V1 + V2
