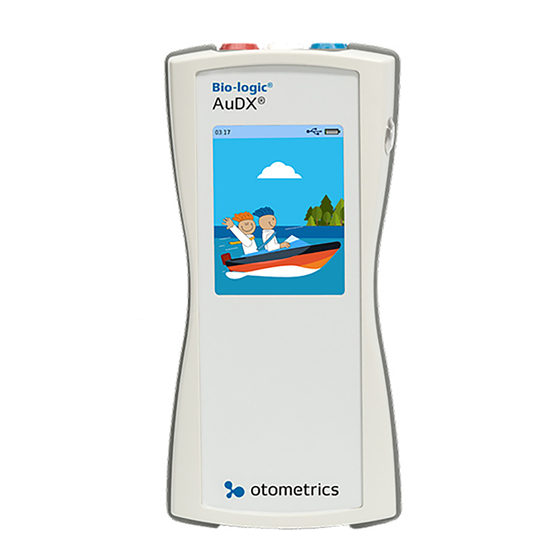

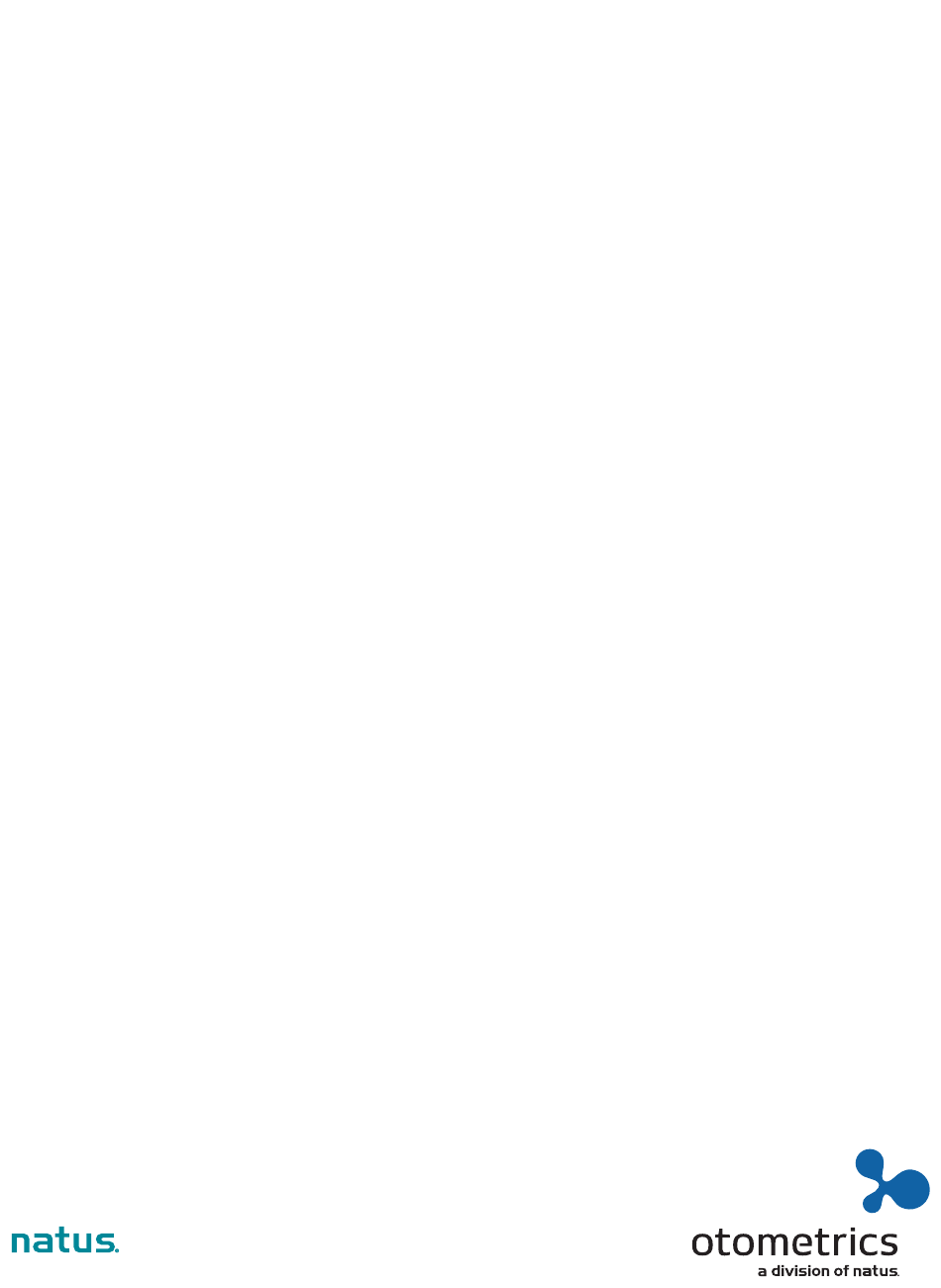

- Page 1 Bio-logic ® Bio-logic AuDX PRO quick start ® ® Quick start guide Doc. No.7-26-1385-EN/00 Part No.7-26-13805-EN Natus Medical Denmark ApS. +45 45 75 55 55. otoinfo@natus.com Natus Medical Incorporated. 1-800-289-2150. otoorder.us@natus.com www.otometrics.com...
-
Page 2: Start Menu
Bio-logic Quick Guide: ® Bio-logic AuDX PRO Quick start ® ® Turning On/Off and changing the device On/off button on right side Power supply connector Start menu Note: this screen (test options) can vary depending on your set up Current time Battery status Select patient Customize settings... - Page 3 Bio-logic Quick Guide: ® Bio-logic AuDX PRO Quick start ® ® Testing: Distortion Product Otoacustic Emissions (DPOAE) Screening Connect the probe to the red connector. Select one of the Presets for DPOAE Screening Select the appropriate ear tip size and place it on the probe tip. Insert the probe in the ear making sure that the ear tip fits tightly into the ear canal.
- Page 4 Bio-logic Quick Guide: ® Bio-logic AuDX PRO Quick start ® ® Progress for each A calibration will be performed prior to measurement. test frequency A green light indicates successful calibration (below left). After successful ear probe calibration, the test will start automatically. Probe fit override for patients Overall test Noise floor...
- Page 5 Bio-logic Quick Guide: ® Bio-logic AuDX PRO Quick start ® ® DPOAE screening test results Overall screening test result Green check marks indicate valid response. Red circles indicate no valid response Red (right ear) or blue (left ear) bars show response amplitude.
- Page 6 Bio-logic Quick Guide: ® Bio-logic AuDX PRO Quick start ® ® DPOAE diagnostic / high reolution Connect the probe to the red connector. Select one of the Presets for DPOAE Diagnostic. Select the appropriate ear tip size and place it on the probe tip. Insert the probe in the ear making sure that the ear tip fits tightly into the ear canal.
- Page 7 Bio-logic Quick Guide: ® Bio-logic AuDX PRO Quick start ® ® A calibration will be performed prior to measurement. A green light indicates successful calibration. After successful ear probe calibration, the test will start automatically. Please note that the presets for DPOAE diagnostics are HiRes, which allows testing frequencies in 10 Hz increments or up to 30 points per octave.
- Page 8 Bio-logic Quick Guide: ® Bio-logic AuDX PRO Quick start ® ® DPOAE diagnostic test results Outcome for each test sorted by f2 and L2. Multilevel test results Red or blue bars indicate shown. Tap on screen Green check marks response, grey bars to view details for each indicate valid response indicate noise...
- Page 9 Bio-logic Quick Guide: ® Bio-logic AuDX PRO Quick start ® ® Quick Guide Information Release date: 2017-01-11 Revision: 02 Valid from: Firmware Rev. 2.1, Mira PC Software Rev. 1.6.4 Applies to: Model: SOH100098, web description SOH02 All mentioned items, products, brands and trademarks are registered or owned by the mentioned companies. All information, illustrations, and specifications provided within this manual are based on the latest product information available at the time of publication.
