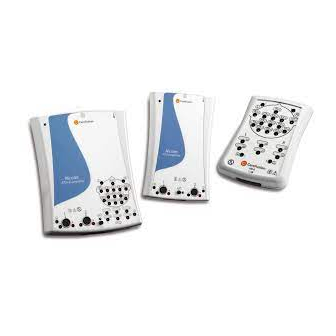

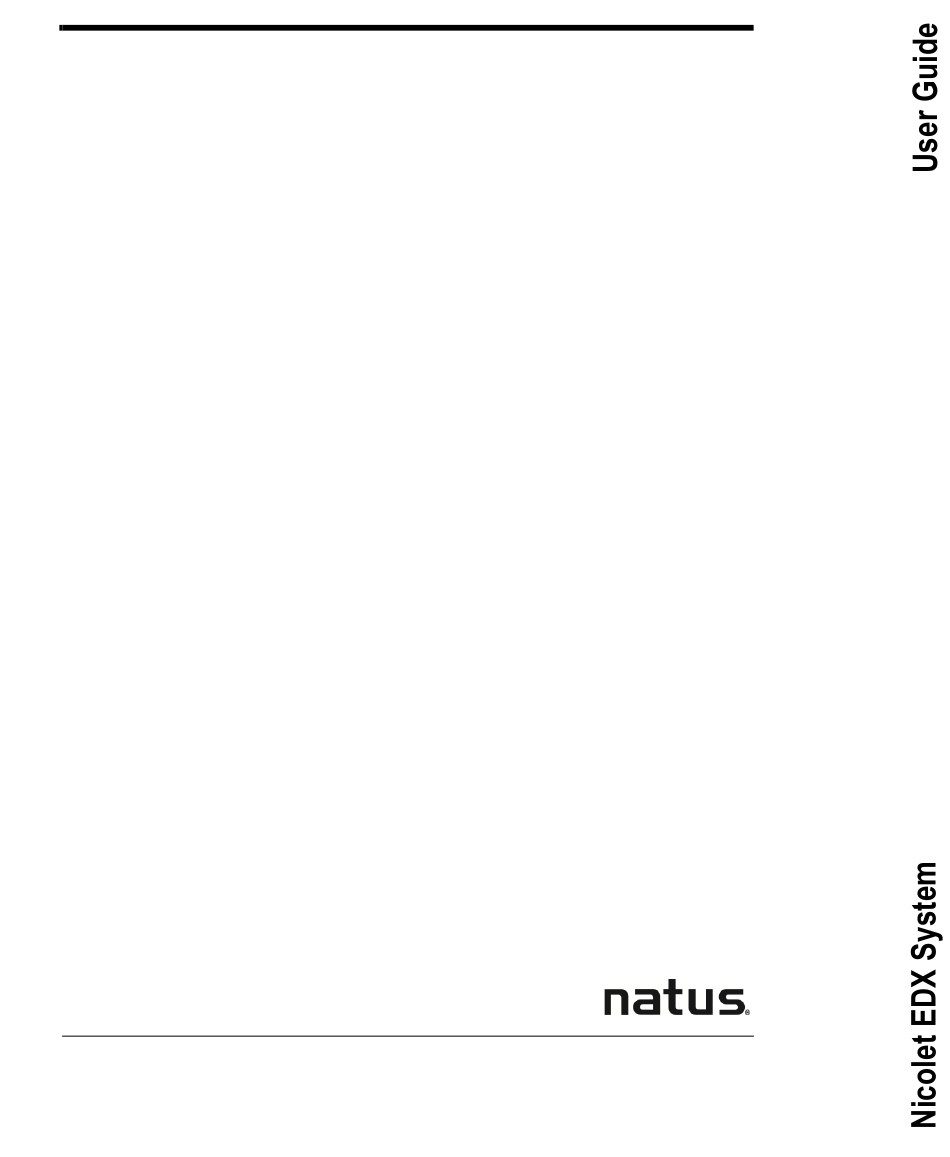

Nicolet EDX System
Nicolet™ Viking EDX and
Synergy EDX User Guide
Issued January 30, 2020
Version 21 or Newer
269-658300 Rev 04
© 2016 - 2020 Natus Medical Incorporated or one of its subsidiaries. All rights reserved.
Natus is a registered trademark of Natus Medical Incorporated. All product names appearing on this document are
trademarks or registered trademarks owned, licensed to, promoted or distributed by Natus Medical Incorporated,
its subsidiaries or affiliates. All other trademarks are the property of their respective owners.
